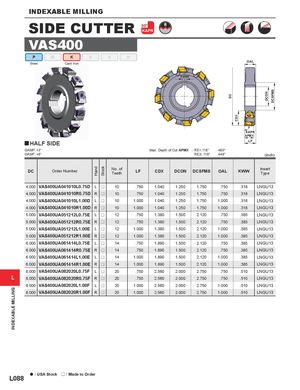

INDEXABLE MILLING Hand Stock DC CDX DCON DCSFMS INDEXABLE MILLING SIDE CUTTER 90°KAPR VAS400 P M K N S H Steel Cast Iron OAL KWW KAPR APMX y HALF SIDE LF GAMP : +3° Max. Depth of Cut APMX : RE<.118" .480" GAMF : +8° RE > .118" .449" (inch) DC Order Number No. ofTeeth LF CDX DCON DCSFMS OAL KWW InsertType 4.000 VAS400UA041010L0.75D L r 10 .750 1.040 1.250 1.750 .750 .318 LNGU13 4.000 VAS400UA041010R0.75D R r 10 .750 1.040 1.250 1.750 .750 .318 LNGU13 4.000 VAS400UA041010L1.00D L r 10 1.000 1.040 1.250 1.750 1.000 .318 LNGU13 4.000 VAS400UA041010R1.00D R r 10 1.000 1.040 1.250 1.750 1.000 .318 LNGU13 5.000 VAS400UA051212L0.75E L r 12 .750 1.380 1.500 2.120 .750 .385 LNGU13 5.000 VAS400UA051212R0.75E R r 12 .750 1.380 1.500 2.120 .750 .385 LNGU13 5.000 VAS400UA051212L1.00E L r 12 1.000 1.380 1.500 2.120 1.000 .385 LNGU13 5.000 VAS400UA051212R1.00E R r 12 1.000 1.380 1.500 2.120 1.000 .385 LNGU13 6.000 VAS400UA061414L0.75E L r 14 .750 1.890 1.500 2.120 .750 .385 LNGU13 6.000 VAS400UA061414R0.75E R r 14 .750 1.890 1.500 2.120 .750 .385 LNGU13 6.000 VAS400UA061414L1.00E L r 14 1.000 1.890 1.500 2.120 1.000 .385 LNGU13 6.000 VAS400UA061414R1.00E R r 14 1.000 1.890 1.500 2.120 1.000 .385 LNGU13 8.000 VAS400UA082020L0.75F L r 20 .750 2.560 2.000 2.750 .750 .510 LNGU13 L 8.000 VAS400UA082020R0.75F R r 20 .750 2.560 2.000 2.750 .750 .510 LNGU13 8.000 VAS400UA082020L1.00F L r 20 1.000 2.560 2.000 2.750 1.000 .510 LNGU13 8.000 VAS400UA082020R1.00F R r 20 1.000 2.560 2.000 2.750 1.000 .510 LNGU13 a : USA Stock r : Made to Order L088
