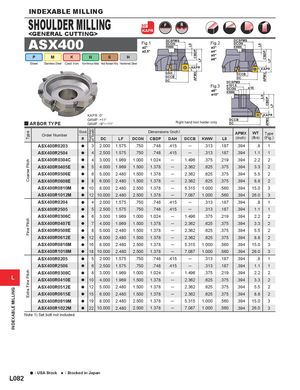

Общий каталог Mitsubishi 2020 - 2021 - страница 1257

• C009A_CUTTING TOOLS
• INDEX
• A_TURNING INSERTS
• B_CBN & PCD TURNING INSERTS
• C_EXTERNAL TURNING TOOLS
• D_SMALL TOOLS
• E_BORING BARS
• F_GROOVING/CUTTING OFF
• G_THREADING
• H_HSK-T TOOLS
• I_SOLID CARBIDE END MILLS
• J_EXCHANGEABLE HEAD END MILLS
• K_ROTATING TOOL INSERTS
• L_INDEXABLE MILLING
• M_DRILLING
• N_SPARE PARTS
• P_TECHNICAL DATA

INDEXABLE MILLING TypeCoarse PitchFine PitchExtra Fine Pitch Number of Teeth L8 CBDPAPMX LF L8 CBDPAPMXL8 LFCBDPAPMX LF INDEXABLE MILLING SHOULDER MILLING 90°KAPR ASX400 Fig.1 DCSFMSDCON Fig.2 DCSFMSDCONKWWKWW P M K N S H Steel SStataininlless SSteteeel l Cast Iron NNoonn-ferrous MMeettaall HDeiffaictulRt-teo-sCisutaMnattAerlilaolsy HHaarrddened Stteeeell KAPR KAPR DAH DCCB DCCB DC DC DCSFMS Fig.3 ø101.6DCON ø18 KWW KAPR :0° KAPR GAMP :+11°y ARBOR TYPEGAMF :-9°─ -11° Right hand tool holder only. DCCBDC StockOrder NumberR Dimensions (inch) APMX WT TypeDCLFDCONCBDPDAHDCCBKWWL8(inch)(lbs)(Fig.) ASX400R0203 a 3 2.000 1.575 .750 .748 .415 ─ .313 .187 .394 .8 1 ASX400R2504 a 4 2.500 1.575 .750 .748 .415 ─ .313 .187 .394 1.1 1 ASX400R0304C a 4 3.000 1.969 1.000 1.024 ─ 1.496 .375 .219 .394 2.2 2 ASX400R0405E a 5 4.000 1.969 1.500 1.378 ─ 2.362 .625 .375 .394 3.3 2 ASX400R0506E a 6 5.000 2.480 1.500 1.378 ─ 2.362 .625 .375 .394 5.5 2 ASX400R0608E a 8 6.000 2.480 1.500 1.378 ─ 2.362 .625 .375 .394 8.8 2 ASX400R0810M a 10 8.000 2.480 2.500 1.378 ─ 5.315 1.000 .560 .394 15.0 3 ASX400R1012M a 12 10.000 2.480 2.500 1.378 ─ 7.087 1.000 .560 .394 26.0 3 ASX400R0204 a 4 2.000 1.575 .750 .748 .415 ─ .313 .187 .394 .8 1 ASX400R2505 a 5 2.500 1.575 .750 .748 .415 ─ .313 .187 .394 1.1 1 ASX400R0306C a 6 3.000 1.969 1.000 1.024 ─ 1.496 .375 .219 .394 2.2 2 ASX400R0407E a 7 4.000 1.969 1.500 1.378 ─ 2.362 .625 .375 .394 3.3 2 ASX400R0508E a 8 5.000 2.480 1.500 1.378 ─ 2.362 .625 .375 .394 5.5 2 ASX400R0612E a 12 6.000 2.480 1.500 1.378 ─ 2.362 .625 .375 .394 8.8 2 ASX400R0816M a 16 8.000 2.480 2.500 1.378 ─ 5.315 1.000 .560 .394 15.0 3 ASX400R1018M a 18 10.000 2.480 2.500 1.378 ─ 7.087 1.000 .560 .394 26.0 3 ASX400R0205 a 5 2.000 1.575 .750 .748 .415 ─ .313 .187 .394 .8 1 ASX400R2506 a 6 2.500 1.575 .750 .748 .415 ─ .313 .187 .394 1.1 1 ASX400R0308C a 8 3.000 1.969 1.000 1.024 ─ 1.496 .375 .219 .394 2.2 2 L ASX400R0410E a 10 4.000 1.969 1.500 1.378 ─ 2.362 .625 .375 .394 3.3 2 ASX400R0512E a 12 5.000 2.480 1.500 1.378 ─ 2.362 .625 .375 .394 5.5 2 ASX400R0615E a 15 6.000 2.480 1.500 1.378 ─ 2.362 .625 .375 .394 8.8 2 ASX400R0819M a 19 8.000 2.480 2.500 1.378 ─ 5.315 1.000 .560 .394 15.0 3 ASX400R1022M a 22 10.000 2.480 2.500 1.378 ─ 7.087 1.000 .560 .394 26.0 3 Note 1) Set bolt not included. a : USA Stock s : Stocked in Japan L082
