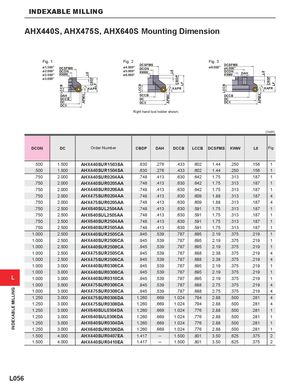

INDEXABLE MILLING LCCB APMX L8 CBDP LF LCCB APMX L8 CBDP LF LCCB APMX L8 CBDP LF INDEXABLE MILLING AHX440S, AHX475S, AHX640S Mounting Dimension Fig. 1 Fig. 2 Fig. 3 ø1.500" DCSFMSø2.000"DCONø2.500"KWW ø4.000"ø5.000"DCSFMSDCONKWWø6.000" ø8.000" DCSFMSø4.000"DCONKWWDAH ø3.000" KAPR KAPR KAPR DAH DCCB DCCB DCCB DC DC DC DCX DCX DCX Right hand tool holder shown. ( inch) DCON DC Order Number CBDP DAH DCCB LCCB DCSFMS KWW L8 Fig. .500 1.500 AHX440SUR1503SA .630 .276 .433 .602 1.44 .250 .156 1 .500 1.500 AHX440SUR1504SA .630 .276 .433 .602 1.44 .250 .156 1 .750 2.000 AHX440SUR0204AA .748 .413 .630 .642 1.75 .313 .187 1 .750 2.000 AHX440SUR0205AA .748 .413 .630 .642 1.75 .313 .187 1 .750 2.000 AHX440SUR0206AA .748 .413 .630 .642 1.75 .313 .187 1 .750 2.000 AHX475SUR0204AA .748 .413 .630 .609 1.88 .313 .187 4 .750 2.000 AHX475SUR0205AA .748 .413 .630 .609 1.88 .313 .187 4 .750 2.500 AHX640SUL2504AA .748 .413 .630 .591 1.75 .313 .187 1 .750 2.500 AHX640SUL2505AA .748 .413 .630 .591 1.75 .313 .187 1 .750 2.500 AHX640SUR2504AA .748 .413 .630 .591 1.75 .313 .187 1 .750 2.500 AHX640SUR2505AA .748 .413 .630 .591 1.75 .313 .187 1 1.000 2.500 AHX440SUR2505CA .945 .539 .787 .695 2.19 .375 .219 1 1.000 2.500 AHX440SUR2506CA .945 .539 .787 .695 2.19 .375 .219 1 1.000 2.500 AHX440SUR2508CA .945 .539 .787 .695 2.19 .375 .219 1 1.000 2.500 AHX475SUR2505CA .945 .539 .787 .688 2.38 .375 .219 4 1.000 2.500 AHX475SUR2506CA .945 .539 .787 .688 2.38 .375 .219 4 1.000 3.000 AHX440SUR0306CA .945 .539 .787 .695 2.19 .375 .219 1 1.000 3.000 AHX440SUR0308CA .945 .539 .787 .695 2.19 .375 .219 1 L 1.000 3.000 AHX440SUR0310CA .945 .539 .787 .695 2.19 .375 .219 1 1.000 3.000 AHX475SUR0306CA .945 .539 .787 .688 2.75 .375 .219 4 1.000 3.000 AHX475SUR0308CA .945 .539 .787 .688 2.75 .375 .219 4 1.250 3.000 AHX475SUR0306DA 1.260 .669 1.024 .794 2.88 .500 .281 4 1.250 3.000 AHX475SUR0308DA 1.260 .669 1.024 .794 2.88 .500 .281 4 1.250 3.000 AHX640SUL0304DA 1.260 .669 1.024 .776 2.88 .500 .281 1 1.250 3.000 AHX640SUL0306DA 1.260 .669 1.024 .776 2.88 .500 .281 1 1.250 3.000 AHX640SUR0304DA 1.260 .669 1.024 .776 2.88 .500 .281 1 1.250 3.000 AHX640SUR0306DA 1.260 .669 1.024 .776 2.88 .500 .281 1 1.500 4.000 AHX440SUR0407EA 1.417 ─ 1.500 .801 3.50 .625 .375 2 1.500 4.000 AHX440SUR0410EA 1.417 ─ 1.500 .801 3.50 .625 .375 2 L056
