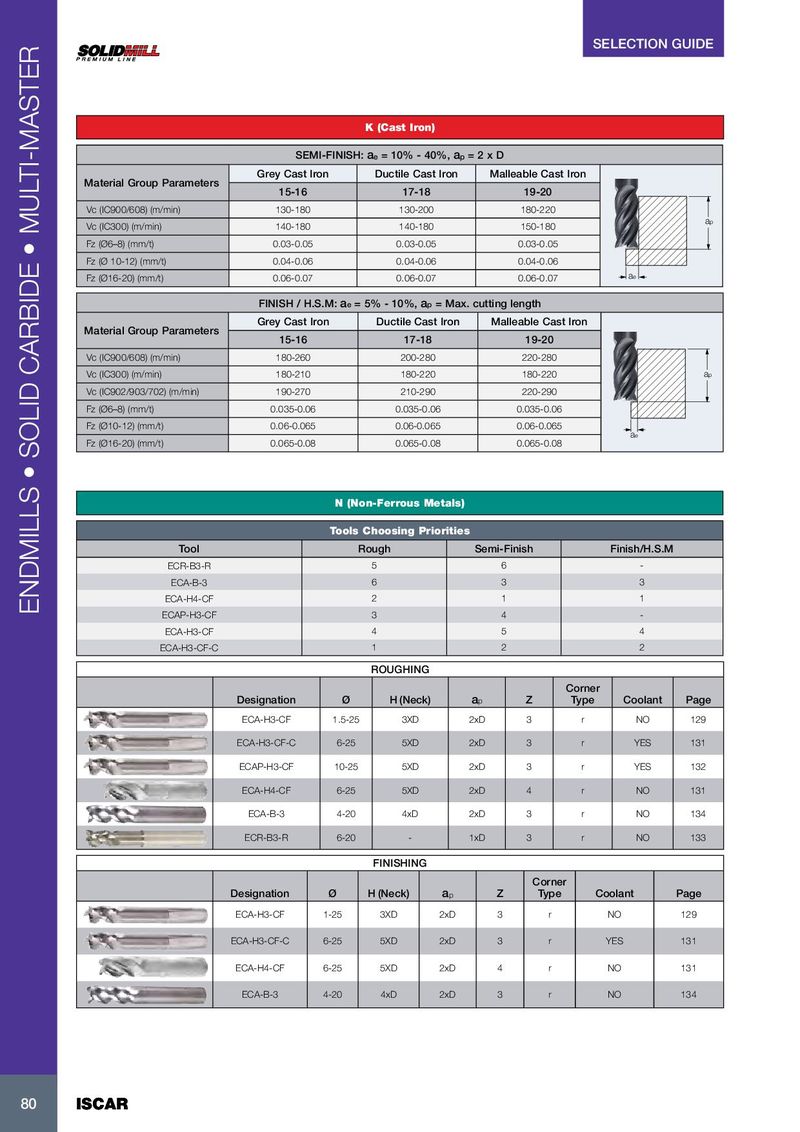

SELECTION GUIDE K (Cast Iron) SEMI-FINISH: a e = 10% - 40%, a p = 2 x D Grey Cast Iron Ductile Cast Iron Malleable Cast Iron Material Group Parameters 15-16 17-18 19-20 Vc (IC900/608) (m/min) 130-180 130-200 180-220 ap Vc (IC300) (m/min) 140-180 140-180 150-180 Fz (Ø6–8) (mm/t) 0.03-0.05 0.03-0.05 0.03-0.05 Fz (Ø 10-12) (mm/t) 0.04-0.06 0.04-0.06 0.04-0.06 Fz (Ø16-20) (mm/t) 0.06-0.07 0.06-0.07 0.06-0.07 ae FINISH / H.S.M: a e = 5% - 10%, a p = Max. cutting length Grey Cast Iron Ductile Cast Iron Malleable Cast Iron Material Group Parameters 15-16 17-18 19-20 Vc (IC900/608) (m/min) 180-260 200-280 220-280 Vc (IC300) (m/min) 180-210 180-220 180-220 ap Vc (IC902/903/702) (m/min) 190-270 210-290 220-290 Fz (Ø6–8) (mm/t) 0.035-0.06 0.035-0.06 0.035-0.06 Fz (Ø10-12) (mm/t) 0.06-0.065 0.06-0.065 0.06-0.065 ae Fz (Ø16-20) (mm/t) 0.065-0.08 0.065-0.08 0.065-0.08 N (Non-Ferrous Metals) Tools Choosing Priorities Tool Rough Semi-Finish Finish/H.S.M ECR-B3-R 5 6 - ECA-B-3 6 3 3 ECA-H4-CF 2 1 1 ENDMILLS • SOLID CARBIDE • MULTI-MASTER ECAP-H3-CF 3 4 - ECA-H3-CF 4 5 4 ECA-H3-CF-C 1 2 2 ROUGHING Corner Designation Ø H (Neck) a p Z Type Coolant Page ECA-H3-CF 1.5-25 3XD 2xD 3 r NO 129 ECA-H3-CF-C 6-25 5XD 2xD 3 r YES 131 ECAP-H3-CF 10-25 5XD 2xD 3 r YES 132 ECA-H4-CF 6-25 5XD 2xD 4 r NO 131 ECA-B-3 4-20 4xD 2xD 3 r NO 134 ECR-B3-R 6-20 - 1xD 3 r NO 133 FINISHING Corner Designation Ø H (Neck) a p Z Type Coolant Page ECA-H3-CF 1-25 3XD 2xD 3 r NO 129 ECA-H3-CF-C 6-25 5XD 2xD 3 r YES 131 ECA-H4-CF 6-25 5XD 2xD 4 r NO 131 ECA-B-3 4-20 4xD 2xD 3 r NO 134 80 80 ISCAR ISCAR
