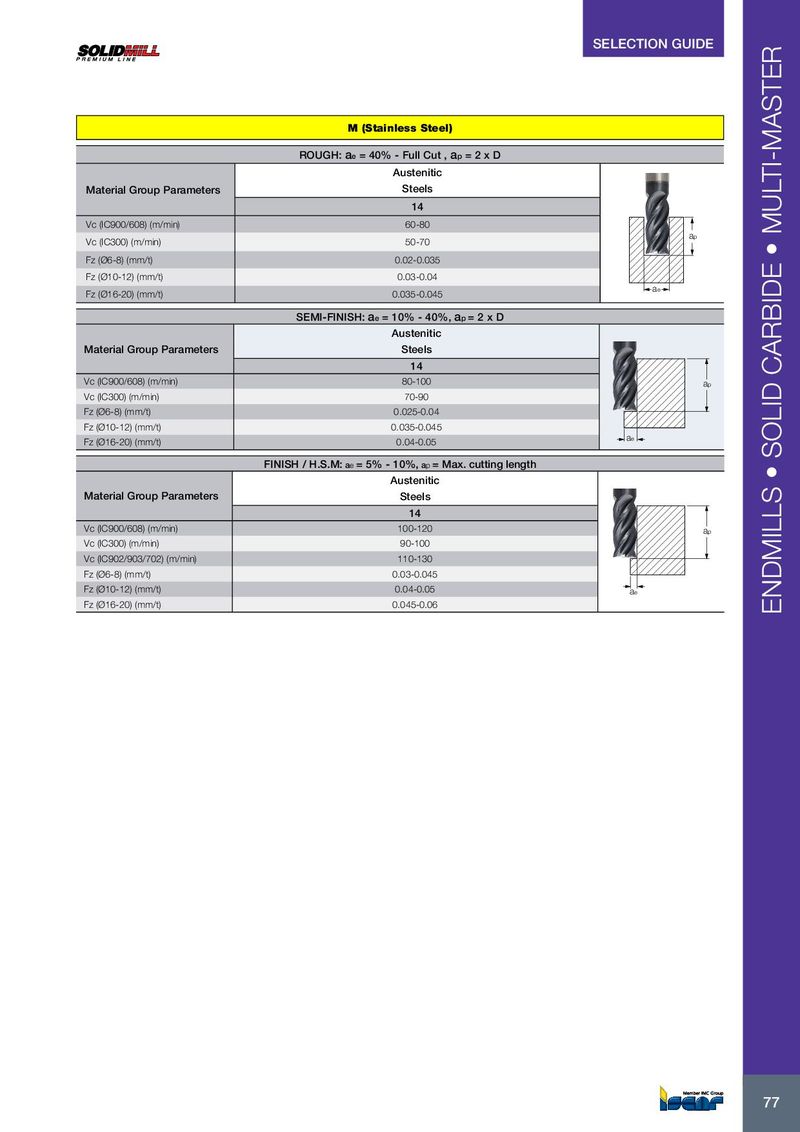

SELECTION GUIDE M (Stainless Steel) ROUGH: a e = 40% - Full Cut , a p = 2 x D Austenitic Material Group Parameters Steels 14 Vc (IC900/608) (m/min) 60-80 ap Vc (IC300) (m/min) 50-70 Fz (Ø6-8) (mm/t) 0.02-0.035 Fz (Ø10-12) (mm/t) 0.03-0.04 ae Fz (Ø16-20) (mm/t) 0.035-0.045 SEMI-FINISH: a e = 10% - 40%, a p = 2 x D Austenitic Material Group Parameters Steels 14 Vc (IC900/608) (m/min) 80-100 ap Vc (IC300) (m/min) 70-90 Fz (Ø6-8) (mm/t) 0.025-0.04 Fz (Ø10-12) (mm/t) 0.035-0.045 ae Fz (Ø16-20) (mm/t) 0.04-0.05 FINISH / H.S.M: a e = 5% - 10%, a p = Max. cutting length Austenitic Material Group Parameters Steels 14 Vc (IC900/608) (m/min) 100-120 ap Vc (IC300) (m/min) 90-100 Vc (IC902/903/702) (m/min) 110-130 Fz (Ø6-8) (mm/t) 0.03-0.045 Fz (Ø10-12) (mm/t) 0.04-0.05 ae Fz (Ø16-20) (mm/t) 0.045-0.06 ENDMILLS • SOLID CARBIDE • MULTI-MASTER 77 77
