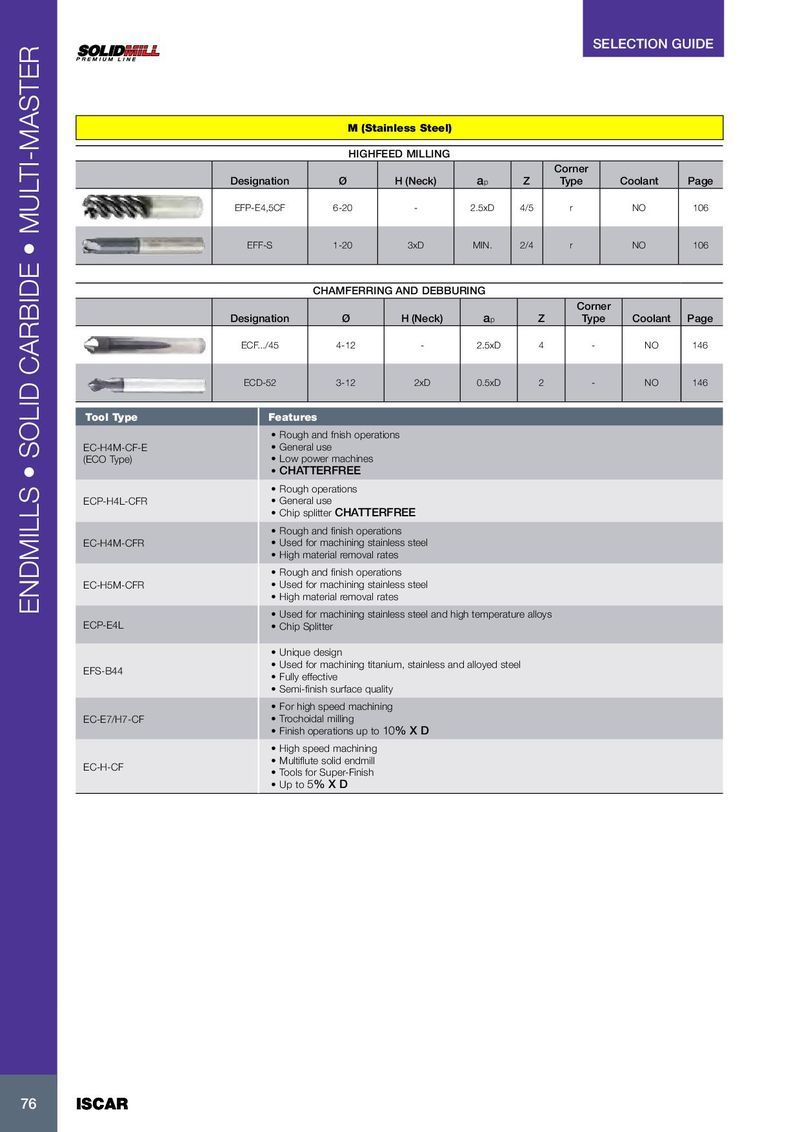

SELECTION GUIDE M (Stainless Steel) HIGHFEED MILLING Corner Designation Ø H (Neck) a p Z Type Coolant Page EFP-E4,5CF 6-20 - 2.5xD 4/5 r NO 106 EFF-S 1-20 3xD MIN. 2/4 r NO 106 CHAMFERRING AND DEBBURING Corner Designation Ø H (Neck) a p Z Type Coolant Page ECF.../45 4-12 - 2.5xD 4 - NO 146 ECD-52 3-12 2xD 0.5xD 2 - NO 146 Tool Type Features • Rough and fnish operations EC-H4M-CF-E • General use (ECO Type) • Low power machines • CHATTERFREE • Rough operations ECP-H4L-CFR • General use • Chip splitter CHATTERFREE • Rough and finish operations EC-H4M-CFR • Used for machining stainless steel • High material removal rates • Rough and finish operations EC-H5M-CFR • Used for machining stainless steel • High material removal rates ENDMILLS • SOLID CARBIDE • MULTI-MASTER • Used for machining stainless steel and high temperature alloys ECP-E4L • Chip Splitter • Unique design • Used for machining titanium, stainless and alloyed steel EFS-B44 • Fully effective • Semi-finish surface quality • For high speed machining EC-E7/H7-CF • Trochoidal milling • Finish operations up to 10% X D • High speed machining • Multiflute solid endmill EC-H-CF • Tools for Super-Finish • Up to 5% X D 76 76 ISCAR ISCAR
