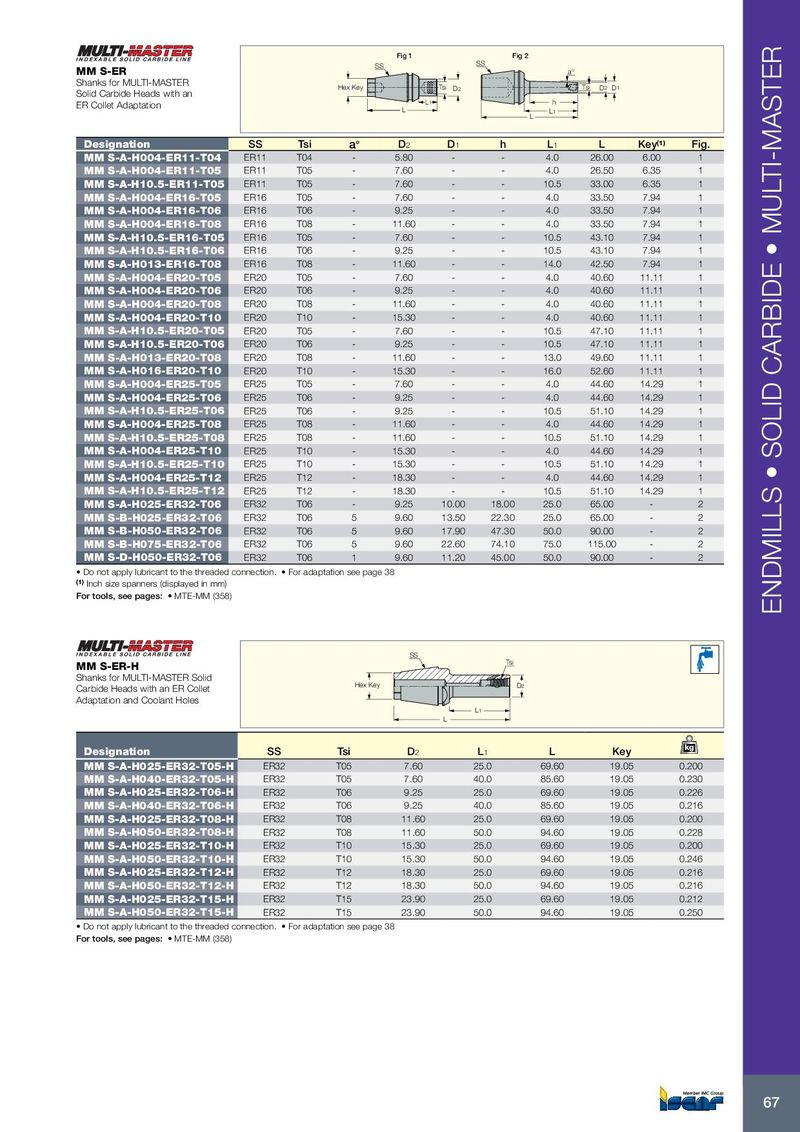

Каталог Iscar вращающийся инструмент 2017 - страница 71

Fig 1 Fig 2 SS SS MM S-ER a° Shanks for MULTI-MASTER Hex Key Tsi D2 T si D 2 D 1 Solid Carbide Heads with an ER Collet Adaptation L1 h L L1 L Designation SS Tsi a° D 2 D 1 h L 1 L Key (1) Fig. MM S-A-H004-ER11-T04 ER11 T04 - 5.80 - - 4.0 26.00 6.00 1 MM S-A-H004-ER11-T05 ER11 T05 - 7.60 - - 4.0 26.50 6.35 1 MM S-A-H10.5-ER11-T05 ER11 T05 - 7.60 - - 10.5 33.00 6.35 1 MM S-A-H004-ER16-T05 ER16 T05 - 7.60 - - 4.0 33.50 7.94 1 MM S-A-H004-ER16-T06 ER16 T06 - 9.25 - - 4.0 33.50 7.94 1 MM S-A-H004-ER16-T08 ER16 T08 - 11.60 - - 4.0 33.50 7.94 1 MM S-A-H10.5-ER16-T05 ER16 T05 - 7.60 - - 10.5 43.10 7.94 1 MM S-A-H10.5-ER16-T06 ER16 T06 - 9.25 - - 10.5 43.10 7.94 1 MM S-A-H013-ER16-T08 ER16 T08 - 11.60 - - 14.0 42.50 7.94 1 MM S-A-H004-ER20-T05 ER20 T05 - 7.60 - - 4.0 40.60 11.11 1 MM S-A-H004-ER20-T06 ER20 T06 - 9.25 - - 4.0 40.60 11.11 1 MM S-A-H004-ER20-T08 ER20 T08 - 11.60 - - 4.0 40.60 11.11 1 MM S-A-H004-ER20-T10 ER20 T10 - 15.30 - - 4.0 40.60 11.11 1 MM S-A-H10.5-ER20-T05 ER20 T05 - 7.60 - - 10.5 47.10 11.11 1 MM S-A-H10.5-ER20-T06 ER20 T06 - 9.25 - - 10.5 47.10 11.11 1 MM S-A-H013-ER20-T08 ER20 T08 - 11.60 - - 13.0 49.60 11.11 1 MM S-A-H016-ER20-T10 ER20 T10 - 15.30 - - 16.0 52.60 11.11 1 MM S-A-H004-ER25-T05 ER25 T05 - 7.60 - - 4.0 44.60 14.29 1 MM S-A-H004-ER25-T06 ER25 T06 - 9.25 - - 4.0 44.60 14.29 1 MM S-A-H10.5-ER25-T06 ER25 T06 - 9.25 - - 10.5 51.10 14.29 1 MM S-A-H004-ER25-T08 ER25 T08 - 11.60 - - 4.0 44.60 14.29 1 MM S-A-H10.5-ER25-T08 ER25 T08 - 11.60 - - 10.5 51.10 14.29 1 MM S-A-H004-ER25-T10 ER25 T10 - 15.30 - - 4.0 44.60 14.29 1 MM S-A-H10.5-ER25-T10 ER25 T10 - 15.30 - - 10.5 51.10 14.29 1 MM S-A-H004-ER25-T12 ER25 T12 - 18.30 - - 4.0 44.60 14.29 1 MM S-A-H10.5-ER25-T12 ER25 T12 - 18.30 - - 10.5 51.10 14.29 1 MM S-A-H025-ER32-T06 ER32 T06 - 9.25 10.00 18.00 25.0 65.00 - 2 MM S-B-H025-ER32-T06 ER32 T06 5 9.60 13.50 22.30 25.0 65.00 - 2 MM S-B-H050-ER32-T06 ER32 T06 5 9.60 17.90 47.30 50.0 90.00 - 2 MM S-B-H075-ER32-T06 ER32 T06 5 9.60 22.60 74.10 75.0 115.00 - 2 MM S-D-H050-ER32-T06 ER32 T06 1 9.60 11.20 45.00 50.0 90.00 - 2 • Do not apply lubricant to the threaded connection. • For adaptation see page 38 (1) Inch size spanners (displayed in mm) For tools, see pages: • MTE-MM (358) ENDMILLS • SOLID CARBIDE • MULTI-MASTER SS Tsi MM S-ER-H Shanks for MULTI-MASTER Solid Hex Key Carbide Heads with an ER Collet D2 Adaptation and Coolant Holes L1 L kg Designation SS Tsi D 2 L 1 L Key MM S-A-H025-ER32-T05-H ER32 T05 7.60 25.0 69.60 19.05 0.200 MM S-A-H040-ER32-T05-H ER32 T05 7.60 40.0 85.60 19.05 0.230 MM S-A-H025-ER32-T06-H ER32 T06 9.25 25.0 69.60 19.05 0.226 MM S-A-H040-ER32-T06-H ER32 T06 9.25 40.0 85.60 19.05 0.216 MM S-A-H025-ER32-T08-H ER32 T08 11.60 25.0 69.60 19.05 0.200 MM S-A-H050-ER32-T08-H ER32 T08 11.60 50.0 94.60 19.05 0.228 MM S-A-H025-ER32-T10-H ER32 T10 15.30 25.0 69.60 19.05 0.200 MM S-A-H050-ER32-T10-H ER32 T10 15.30 50.0 94.60 19.05 0.246 MM S-A-H025-ER32-T12-H ER32 T12 18.30 25.0 69.60 19.05 0.216 MM S-A-H050-ER32-T12-H ER32 T12 18.30 50.0 94.60 19.05 0.216 MM S-A-H025-ER32-T15-H ER32 T15 23.90 25.0 69.60 19.05 0.212 MM S-A-H050-ER32-T15-H ER32 T15 23.90 50.0 94.60 19.05 0.250 • Do not apply lubricant to the threaded connection. • For adaptation see page 38 For tools, see pages: • MTE-MM (358) 67
