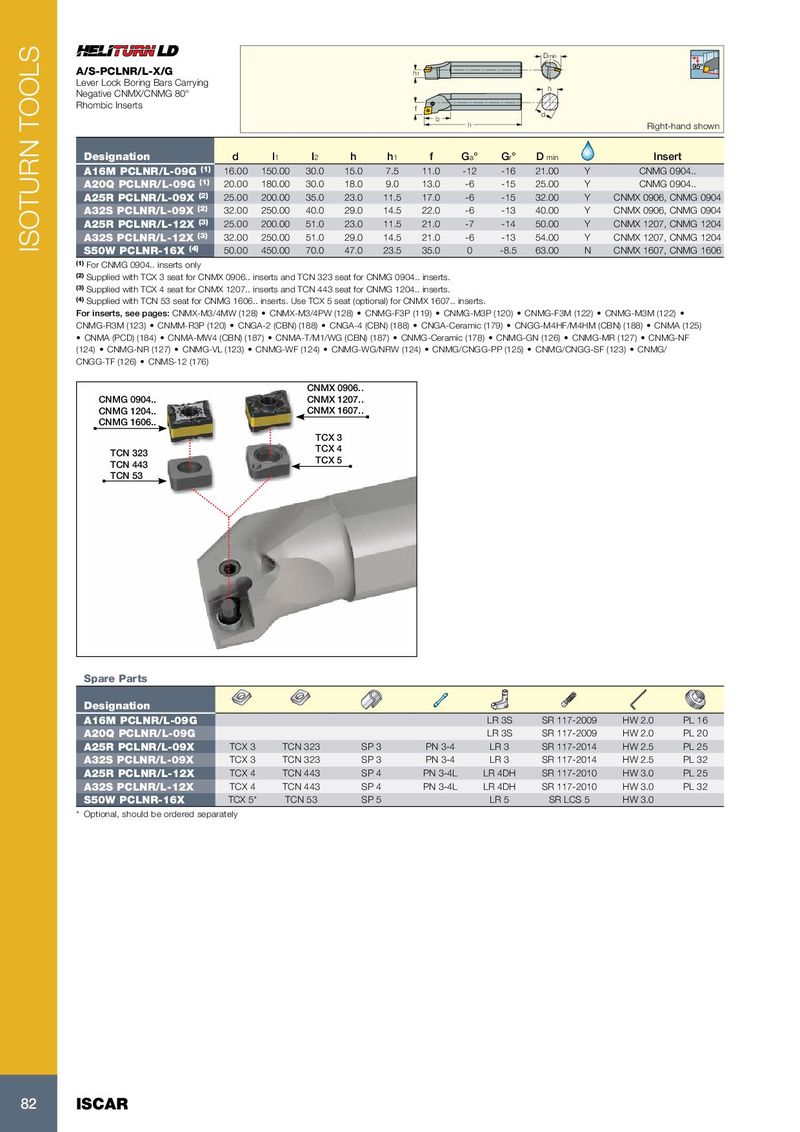

Dmin 95º A/S-PCLNR/L-X/G h1 Lever Lock Boring Bars Carrying h Negative CNMX/CNMG 80° Rhombic Inserts f d l2 l1 Right-hand shown Designation d l 1 l 2 h h 1 f G a ° G r ° D min Insert A16M PCLNR/L-09G (1) 16.00 150.00 30.0 15.0 7.5 11.0 -12 -16 21.00 Y CNMG 0904.. A20Q PCLNR/L-09G (1) 20.00 180.00 30.0 18.0 9.0 13.0 -6 -15 25.00 Y CNMG 0904.. A25R PCLNR/L-09X (2) 25.00 200.00 35.0 23.0 11.5 17.0 -6 -15 32.00 Y CNMX 0906, CNMG 0904 A32S PCLNR/L-09X (2) 32.00 250.00 40.0 29.0 14.5 22.0 -6 -13 40.00 Y CNMX 0906, CNMG 0904 A25R PCLNR/L-12X (3) 25.00 200.00 51.0 23.0 11.5 21.0 -7 -14 50.00 Y CNMX 1207, CNMG 1204 A32S PCLNR/L-12X (3) 32.00 250.00 51.0 29.0 14.5 21.0 -6 -13 54.00 Y CNMX 1207, CNMG 1204 ISOTURN TOOLS S50W PCLNR-16X (4) 50.00 450.00 70.0 47.0 23.5 35.0 0 -8.5 63.00 N CNMX 1607, CNMG 1606 (1) For CNMG 0904.. inserts only (2) Supplied with TCX 3 seat for CNMX 0906.. inserts and TCN 323 seat for CNMG 0904.. inserts. (3) Supplied with TCX 4 seat for CNMX 1207.. inserts and TCN 443 seat for CNMG 1204.. inserts. (4) Supplied with TCN 53 seat for CNMG 1606.. inserts. Use TCX 5 seat (optional) for CNMX 1607.. inserts. For inserts, see pages: CNMX-M3/4MW (128) • CNMX-M3/4PW (128) • CNMG-F3P (119) • CNMG-M3P (120) • CNMG-F3M (122) • CNMG-M3M (122) • CNMG-R3M (123) • CNMM-R3P (120) • CNGA-2 (CBN) (188) • CNGA-4 (CBN) (188) • CNGA-Ceramic (179) • CNGG-M4HF/M4HM (CBN) (188) • CNMA (125) • CNMA (PCD) (184) • CNMA-MW4 (CBN) (187) • CNMA-T/M1/WG (CBN) (187) • CNMG-Ceramic (178) • CNMG-GN (126) • CNMG-MR (127) • CNMG-NF (124) • CNMG-NR (127) • CNMG-VL (123) • CNMG-WF (124) • CNMG-WG/NRW (124) • CNMG/CNGG-PP (125) • CNMG/CNGG-SF (123) • CNMG/ CNGG-TF (126) • CNMS-12 (176) CNMX 0906.. CNMG 0904.. CNMX 1207.. CNMG 1204.. CNMX 1607.. CNMG 1606.. TCX 3 TCX 4 TCN 323 TCX 5 TCN 443 TCN 53 Spare Parts Designation A16M PCLNR/L-09G LR 3S SR 117-2009 HW 2.0 PL 16 A20Q PCLNR/L-09G LR 3S SR 117-2009 HW 2.0 PL 20 A25R PCLNR/L-09X TCX 3 TCN 323 SP 3 PN 3-4 LR 3 SR 117-2014 HW 2.5 PL 25 A32S PCLNR/L-09X TCX 3 TCN 323 SP 3 PN 3-4 LR 3 SR 117-2014 HW 2.5 PL 32 A25R PCLNR/L-12X TCX 4 TCN 443 SP 4 PN 3-4L LR 4DH SR 117-2010 HW 3.0 PL 25 A32S PCLNR/L-12X TCX 4 TCN 443 SP 4 PN 3-4L LR 4DH SR 117-2010 HW 3.0 PL 32 S50W PCLNR-16X TCX 5* TCN 53 SP 5 LR 5 SR LCS 5 HW 3.0 * Optional, should be ordered separately 82 ISCAR
