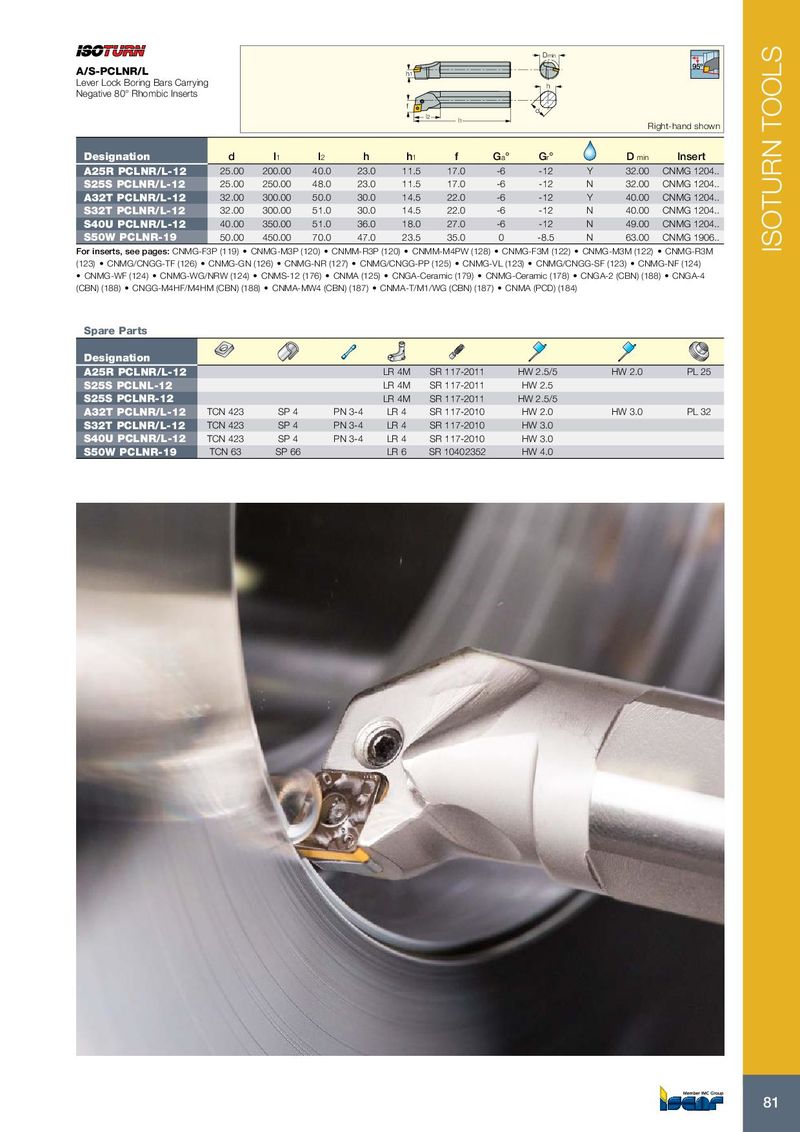

Dmin 95º A/S-PCLNR/L h 1 Lever Lock Boring Bars Carrying h Negative 80° Rhombic Inserts f d l 2 l 1 Right-hand shown Designation d l 1 l 2 h h 1 f G a ° G r ° D min Insert A25R PCLNR/L-12 25.00 200.00 40.0 23.0 11.5 17.0 -6 -12 Y 32.00 CNMG 1204.. S25S PCLNR/L-12 25.00 250.00 48.0 23.0 11.5 17.0 -6 -12 N 32.00 CNMG 1204.. A32T PCLNR/L-12 32.00 300.00 50.0 30.0 14.5 22.0 -6 -12 Y 40.00 CNMG 1204.. S32T PCLNR/L-12 32.00 300.00 51.0 30.0 14.5 22.0 -6 -12 N 40.00 CNMG 1204.. S40U PCLNR/L-12 40.00 350.00 51.0 36.0 18.0 27.0 -6 -12 N 49.00 CNMG 1204.. S50W PCLNR-19 50.00 450.00 70.0 47.0 23.5 35.0 0 -8.5 N 63.00 CNMG 1906.. For inserts, see pages: CNMG-F3P (119) • CNMG-M3P (120) • CNMM-R3P (120) • CNMM-M4PW (128) • CNMG-F3M (122) • CNMG-M3M (122) • CNMG-R3M ISOTURN TOOLS (123) • CNMG/CNGG-TF (126) • CNMG-GN (126) • CNMG-NR (127) • CNMG/CNGG-PP (125) • CNMG-VL (123) • CNMG/CNGG-SF (123) • CNMG-NF (124) • CNMG-WF (124) • CNMG-WG/NRW (124) • CNMS-12 (176) • CNMA (125) • CNGA-Ceramic (179) • CNMG-Ceramic (178) • CNGA-2 (CBN) (188) • CNGA-4 (CBN) (188) • CNGG-M4HF/M4HM (CBN) (188) • CNMA-MW4 (CBN) (187) • CNMA-T/M1/WG (CBN) (187) • CNMA (PCD) (184) Spare Parts Designation A25R PCLNR/L-12 LR 4M SR 117-2011 HW 2.5/5 HW 2.0 PL 25 S25S PCLNL-12 LR 4M SR 117-2011 HW 2.5 S25S PCLNR-12 LR 4M SR 117-2011 HW 2.5/5 A32T PCLNR/L-12 TCN 423 SP 4 PN 3-4 LR 4 SR 117-2010 HW 2.0 HW 3.0 PL 32 S32T PCLNR/L-12 TCN 423 SP 4 PN 3-4 LR 4 SR 117-2010 HW 3.0 S40U PCLNR/L-12 TCN 423 SP 4 PN 3-4 LR 4 SR 117-2010 HW 3.0 S50W PCLNR-19 TCN 63 SP 66 LR 6 SR 10402352 HW 4.0 81
