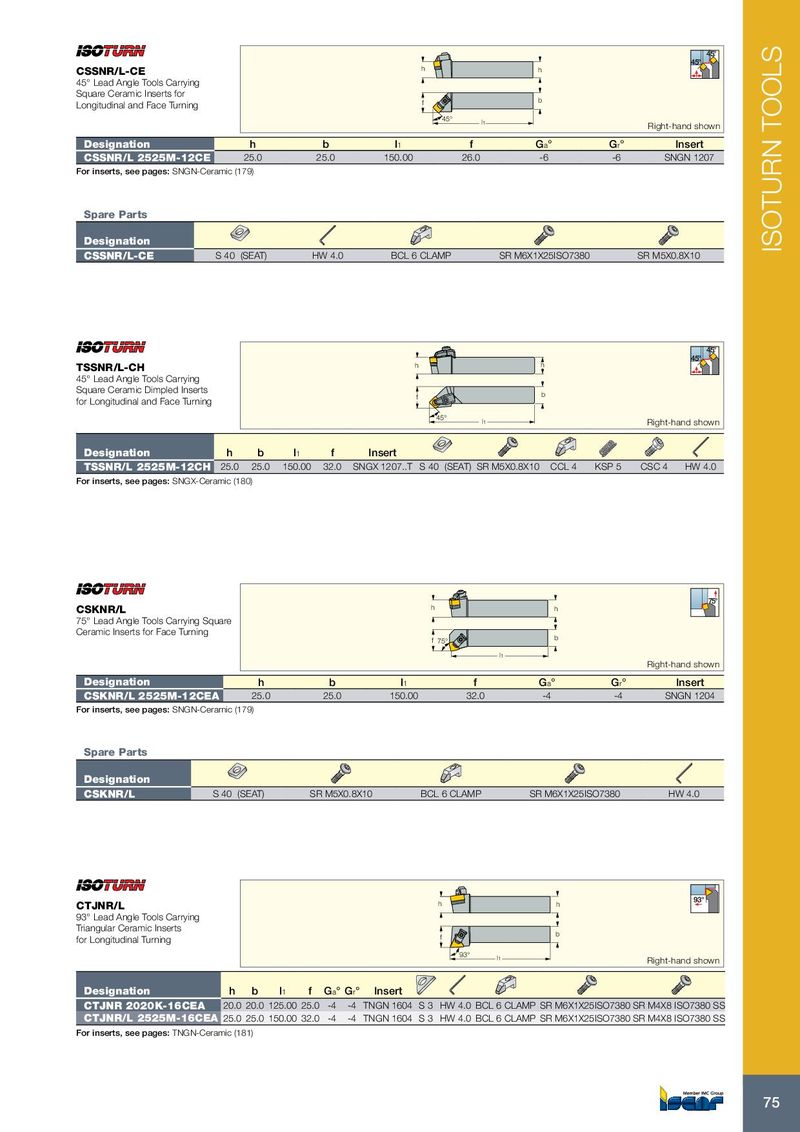

45° 45° CSSNR/L-CE h h 45° Lead Angle Tools Carrying Square Ceramic Inserts for Longitudinal and Face Turning f b 45° l1 Right-hand shown Designation h b l 1 f G a ° G r ° Insert CSSNR/L 2525M-12CE 25.0 25.0 150.00 26.0 -6 -6 SNGN 1207 For inserts, see pages: SNGN-Ceramic (179) Spare Parts Designation ISOTURN TOOLS CSSNR/L-CE S 40 (SEAT) HW 4.0 BCL 6 CLAMP SR M6X1X25ISO7380 SR M5X0.8X10 45° 45° TSSNR/L-CH h h 45° Lead Angle Tools Carrying Square Ceramic Dimpled Inserts f b for Longitudinal and Face Turning 45° l 1 Right-hand shown Designation h b l 1 f Insert TSSNR/L 2525M-12CH 25.0 25.0 150.00 32.0 SNGX 1207..T S 40 (SEAT) SR M5X0.8X10 CCL 4 KSP 5 CSC 4 HW 4.0 For inserts, see pages: SNGX-Ceramic (180) 75° CSKNR/L h h 75° Lead Angle Tools Carrying Square Ceramic Inserts for Face Turning f 75° b l1 Right-hand shown Designation h b l 1 f G a ° G r ° Insert CSKNR/L 2525M-12CEA 25.0 25.0 150.00 32.0 -4 -4 SNGN 1204 For inserts, see pages: SNGN-Ceramic (179) Spare Parts Designation CSKNR/L S 40 (SEAT) SR M5X0.8X10 BCL 6 CLAMP SR M6X1X25ISO7380 HW 4.0 93° CTJNR/L h h 93° Lead Angle Tools Carrying Triangular Ceramic Inserts for Longitudinal Turning f b 93° l1 Right-hand shown Designation h b l 1 f G a ° G r ° Insert CTJNR 2020K-16CEA 20.0 20.0 125.00 25.0 -4 -4 TNGN 1604 S 3 HW 4.0 BCL 6 CLAMP SR M6X1X25ISO7380 SR M4X8 ISO7380 SS CTJNR/L 2525M-16CEA 25.0 25.0 150.00 32.0 -4 -4 TNGN 1604 S 3 HW 4.0 BCL 6 CLAMP SR M6X1X25ISO7380 SR M4X8 ISO7380 SS For inserts, see pages: TNGN-Ceramic (181) 75
