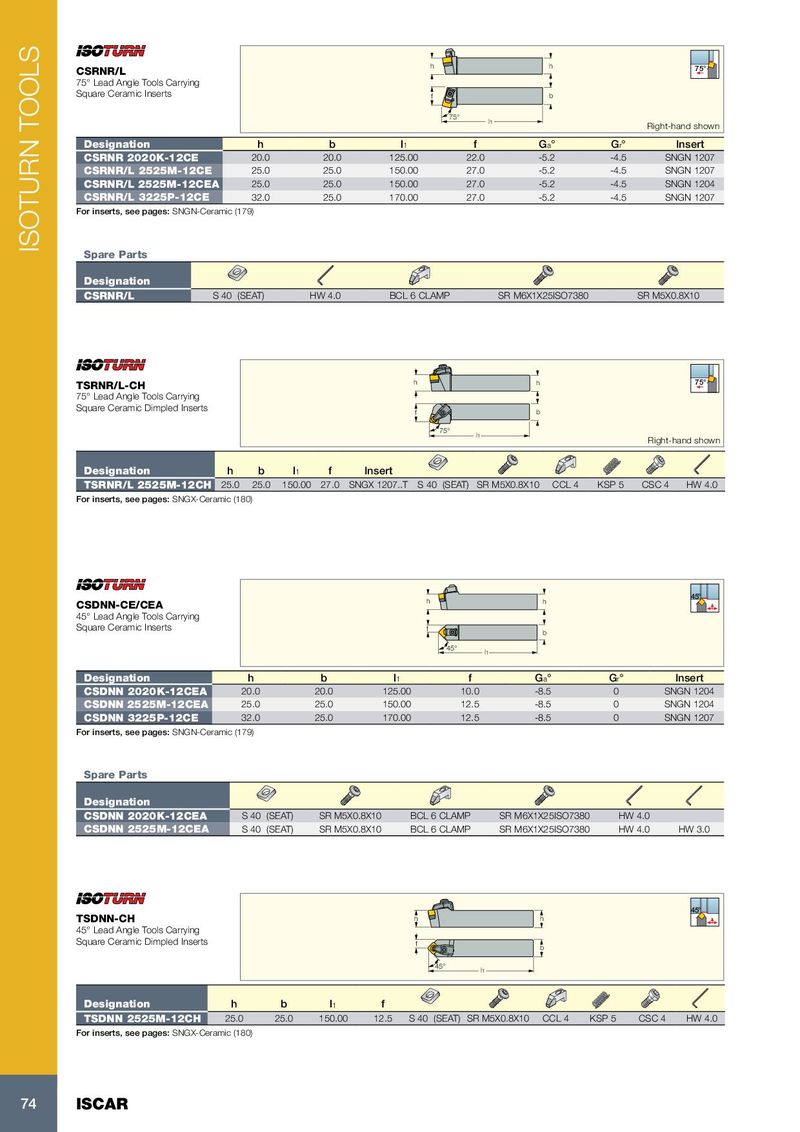

h h 75° CSRNR/L 75° Lead Angle Tools Carrying Square Ceramic Inserts f b 75° l1 Right-hand shown Designation h b l 1 f G a ° G r ° Insert CSRNR 2020K-12CE 20.0 20.0 125.00 22.0 -5.2 -4.5 SNGN 1207 CSRNR/L 2525M-12CE 25.0 25.0 150.00 27.0 -5.2 -4.5 SNGN 1207 CSRNR/L 2525M-12CEA 25.0 25.0 150.00 27.0 -5.2 -4.5 SNGN 1204 CSRNR/L 3225P-12CE 32.0 25.0 170.00 27.0 -5.2 -4.5 SNGN 1207 For inserts, see pages: SNGN-Ceramic (179) ISOTURN TOOLS Spare Parts Designation CSRNR/L S 40 (SEAT) HW 4.0 BCL 6 CLAMP SR M6X1X25ISO7380 SR M5X0.8X10 TSRNR/L-CH h h 75° 75° Lead Angle Tools Carrying Square Ceramic Dimpled Inserts f b 75° l 1 Right-hand shown Designation h b l 1 f Insert TSRNR/L 2525M-12CH 25.0 25.0 150.00 27.0 SNGX 1207..T S 40 (SEAT) SR M5X0.8X10 CCL 4 KSP 5 CSC 4 HW 4.0 For inserts, see pages: SNGX-Ceramic (180) 45° h h CSDNN-CE/CEA 45° Lead Angle Tools Carrying Square Ceramic Inserts f b 45° l 1 Designation h b l 1 f G a ° G r ° Insert CSDNN 2020K-12CEA 20.0 20.0 125.00 10.0 -8.5 0 SNGN 1204 CSDNN 2525M-12CEA 25.0 25.0 150.00 12.5 -8.5 0 SNGN 1204 CSDNN 3225P-12CE 32.0 25.0 170.00 12.5 -8.5 0 SNGN 1207 For inserts, see pages: SNGN-Ceramic (179) Spare Parts Designation CSDNN 2020K-12CEA S 40 (SEAT) SR M5X0.8X10 BCL 6 CLAMP SR M6X1X25ISO7380 HW 4.0 CSDNN 2525M-12CEA S 40 (SEAT) SR M5X0.8X10 BCL 6 CLAMP SR M6X1X25ISO7380 HW 4.0 HW 3.0 45° TSDNN-CH h h 45° Lead Angle Tools Carrying Square Ceramic Dimpled Inserts f b 45° l1 Designation h b l 1 f TSDNN 2525M-12CH 25.0 25.0 150.00 12.5 S 40 (SEAT) SR M5X0.8X10 CCL 4 KSP 5 CSC 4 HW 4.0 For inserts, see pages: SNGX-Ceramic (180) 74 ISCAR
