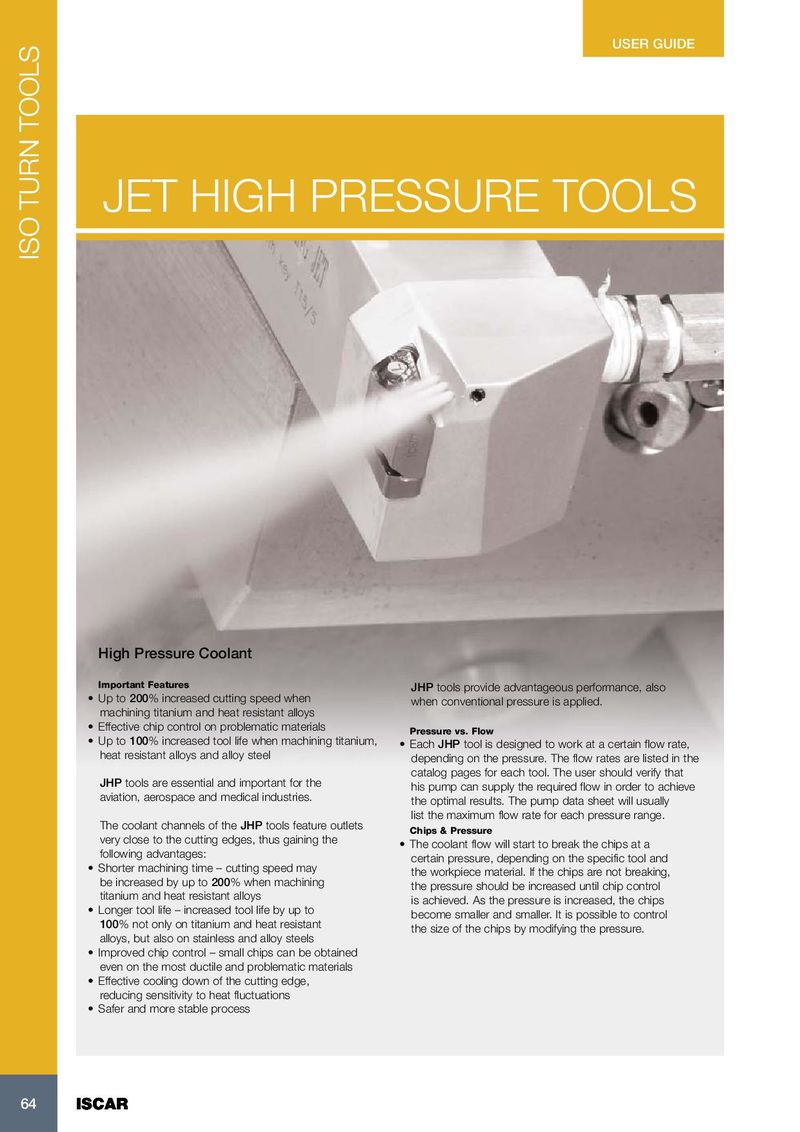

USER GUIDE JET HIGH PRESSURE TOOLS ISO TURN TOOLS ISO TURN TOOLS High Pressure Coolant Important Features JHP tools provide advantageous performance, also • Up to 200% increased cutting speed when when conventional pressure is applied. machining titanium and heat resistant alloys • Effective chip control on problematic materials Pressure vs. Flow • Up to 100% increased tool life when machining titanium, • Each JHP tool is designed to work at a certain flow rate, heat resistant alloys and alloy steel depending on the pressure. The flow rates are listed in the catalog pages for each tool. The user should verify that JHP tools are essential and important for the his pump can supply the required flow in order to achieve aviation, aerospace and medical industries. the optimal results. The pump data sheet will usually list the maximum flow rate for each pressure range. The coolant channels of the JHP tools feature outlets Chips & Pressure very close to the cutting edges, thus gaining the • The coolant flow will start to break the chips at a following advantages: certain pressure, depending on the specific tool and • Shorter machining time – cutting speed may the workpiece material. If the chips are not breaking, be increased by up to 200% when machining the pressure should be increased until chip control titanium and heat resistant alloys is achieved. As the pressure is increased, the chips • Longer tool life – increased tool life by up to become smaller and smaller. It is possible to control 100% not only on titanium and heat resistant the size of the chips by modifying the pressure. alloys, but also on stainless and alloy steels • Improved chip control – small chips can be obtained even on the most ductile and problematic materials • Effective cooling down of the cutting edge, reducing sensitivity to heat fluctuations • Safer and more stable process 64 64 64 ISCAR ISCAR ISCAR
