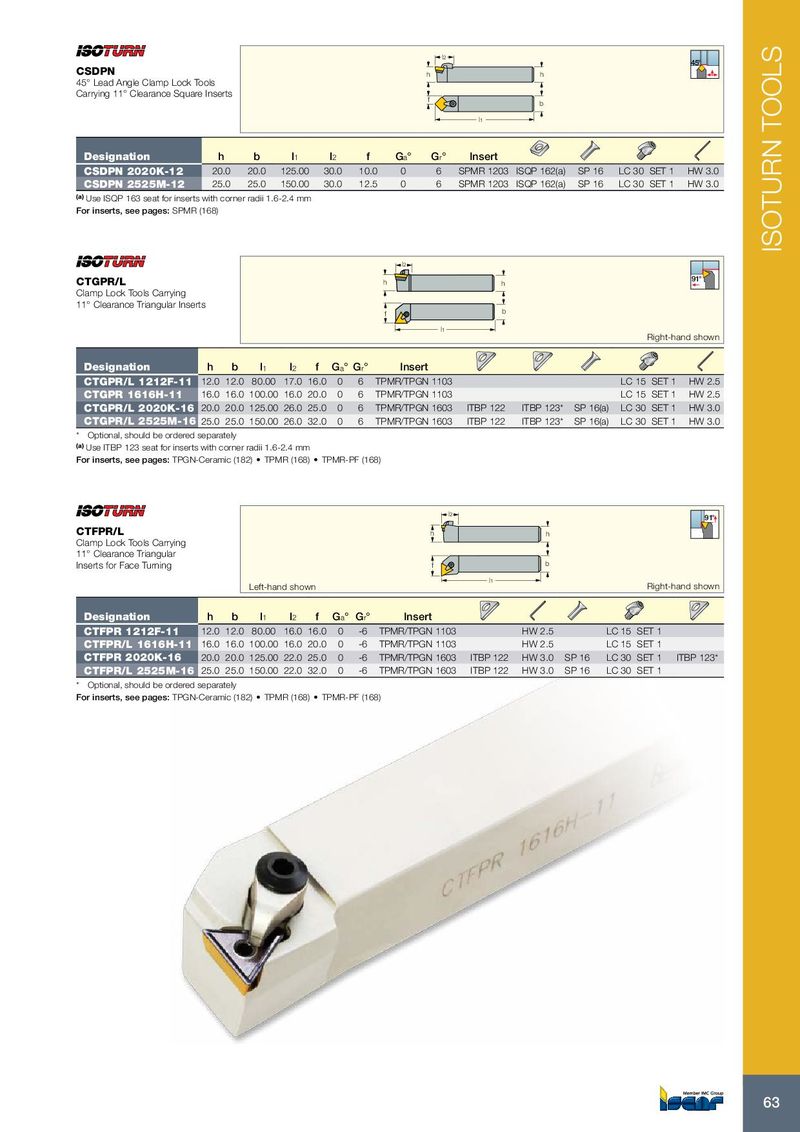

l2 45° CSDPN h h 45° Lead Angle Clamp Lock Tools Carrying 11° Clearance Square Inserts f b l1 Designation h b l 1 l 2 f G a ° G r ° Insert CSDPN 2020K-12 20.0 20.0 125.00 30.0 10.0 0 6 SPMR 1203 ISQP 162(a) SP 16 LC 30 SET 1 HW 3.0 CSDPN 2525M-12 25.0 25.0 150.00 30.0 12.5 0 6 SPMR 1203 ISQP 162(a) SP 16 LC 30 SET 1 HW 3.0 (a) Use ISQP 163 seat for inserts with corner radii 1.6-2.4 mm For inserts, see pages: SPMR (168) ISOTURN TOOLS l2 CTGPR/L h 91° h Clamp Lock Tools Carrying 11° Clearance Triangular Inserts f b l1 Right-hand shown Designation h b l 1 l 2 f G a ° G r ° Insert CTGPR/L 1212F-11 12.0 12.0 80.00 17.0 16.0 0 6 TPMR/TPGN 1103 LC 15 SET 1 HW 2.5 CTGPR 1616H-11 16.0 16.0 100.00 16.0 20.0 0 6 TPMR/TPGN 1103 LC 15 SET 1 HW 2.5 CTGPR/L 2020K-16 20.0 20.0 125.00 26.0 25.0 0 6 TPMR/TPGN 1603 ITBP 122 ITBP 123* SP 16(a) LC 30 SET 1 HW 3.0 CTGPR/L 2525M-16 25.0 25.0 150.00 26.0 32.0 0 6 TPMR/TPGN 1603 ITBP 122 ITBP 123* SP 16(a) LC 30 SET 1 HW 3.0 * Optional, should be ordered separately (a) Use ITBP 123 seat for inserts with corner radii 1.6-2.4 mm For inserts, see pages: TPGN-Ceramic (182) • TPMR (168) • TPMR-PF (168) l2 91° CTFPR/L h h Clamp Lock Tools Carrying 11° Clearance Triangular Inserts for Face Turning f b l1 Left-hand shown Right-hand shown Designation h b l 1 l 2 f G a ° G r ° Insert CTFPR 1212F-11 12.0 12.0 80.00 16.0 16.0 0 -6 TPMR/TPGN 1103 HW 2.5 LC 15 SET 1 CTFPR/L 1616H-11 16.0 16.0 100.00 16.0 20.0 0 -6 TPMR/TPGN 1103 HW 2.5 LC 15 SET 1 CTFPR 2020K-16 20.0 20.0 125.00 22.0 25.0 0 -6 TPMR/TPGN 1603 ITBP 122 HW 3.0 SP 16 LC 30 SET 1 ITBP 123* CTFPR/L 2525M-16 25.0 25.0 150.00 22.0 32.0 0 -6 TPMR/TPGN 1603 ITBP 122 HW 3.0 SP 16 LC 30 SET 1 * Optional, should be ordered separately For inserts, see pages: TPGN-Ceramic (182) • TPMR (168) • TPMR-PF (168) 63
