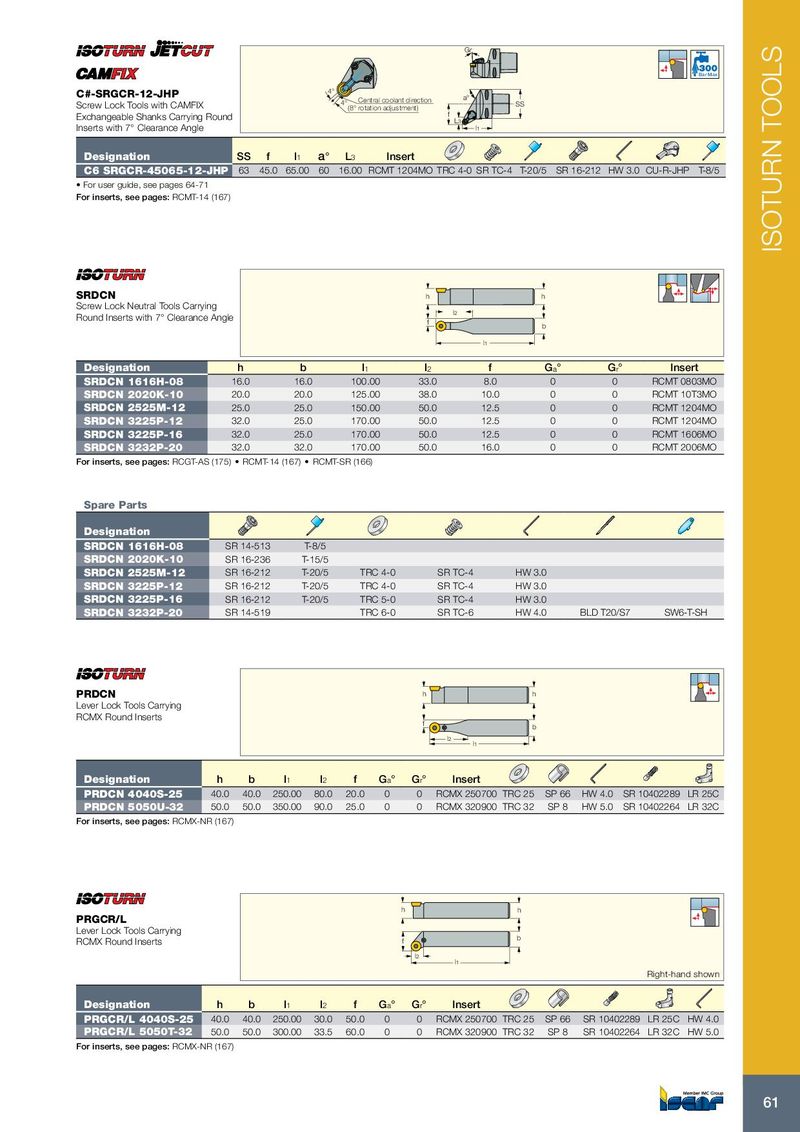

Gr Bar Max 4° C#-SRGCR-12-JHP a° Screw Lock Tools with CAMFIX 4° Central coolant direction (8° rotation adjustment) SS Exchangeable Shanks Carrying Round f L 3 Inserts with 7° Clearance Angle l1 Designation SS f l 1 a° L 3 Insert C6 SRGCR-45065-12-JHP 63 45.0 65.00 60 16.00 RCMT 1204MO TRC 4-0 SR TC-4 T-20/5 SR 16-212 HW 3.0 CU-R-JHP T-8/5 • For user guide, see pages 64-71 For inserts, see pages: RCMT-14 (167) ISOTURN TOOLS SRDCN h h Screw Lock Neutral Tools Carrying l2 Round Inserts with 7° Clearance Angle f b l1 Designation h b l 1 l 2 f G a ° G r ° Insert SRDCN 1616H-08 16.0 16.0 100.00 33.0 8.0 0 0 RCMT 0803MO SRDCN 2020K-10 20.0 20.0 125.00 38.0 10.0 0 0 RCMT 10T3MO SRDCN 2525M-12 25.0 25.0 150.00 50.0 12.5 0 0 RCMT 1204MO SRDCN 3225P-12 32.0 25.0 170.00 50.0 12.5 0 0 RCMT 1204MO SRDCN 3225P-16 32.0 25.0 170.00 50.0 12.5 0 0 RCMT 1606MO SRDCN 3232P-20 32.0 32.0 170.00 50.0 16.0 0 0 RCMT 2006MO For inserts, see pages: RCGT-AS (175) • RCMT-14 (167) • RCMT-SR (166) Spare Parts Designation SRDCN 1616H-08 SR 14-513 T-8/5 SRDCN 2020K-10 SR 16-236 T-15/5 SRDCN 2525M-12 SR 16-212 T-20/5 TRC 4-0 SR TC-4 HW 3.0 SRDCN 3225P-12 SR 16-212 T-20/5 TRC 4-0 SR TC-4 HW 3.0 SRDCN 3225P-16 SR 16-212 T-20/5 TRC 5-0 SR TC-4 HW 3.0 SRDCN 3232P-20 SR 14-519 TRC 6-0 SR TC-6 HW 4.0 BLD T20/S7 SW6-T-SH PRDCN h h Lever Lock Tools Carrying RCMX Round Inserts f b l2 l1 Designation h b l 1 l 2 f G a ° G r ° Insert PRDCN 4040S-25 40.0 40.0 250.00 80.0 20.0 0 0 RCMX 250700 TRC 25 SP 66 HW 4.0 SR 10402289 LR 25C PRDCN 5050U-32 50.0 50.0 350.00 90.0 25.0 0 0 RCMX 320900 TRC 32 SP 8 HW 5.0 SR 10402264 LR 32C For inserts, see pages: RCMX-NR (167) h h PRGCR/L Lever Lock Tools Carrying RCMX Round Inserts f b l2 l1 Right-hand shown Designation h b l 1 l 2 f G a ° G r ° Insert PRGCR/L 4040S-25 40.0 40.0 250.00 30.0 50.0 0 0 RCMX 250700 TRC 25 SP 66 SR 10402289 LR 25C HW 4.0 PRGCR/L 5050T-32 50.0 50.0 300.00 33.5 60.0 0 0 RCMX 320900 TRC 32 SP 8 SR 10402264 LR 32C HW 5.0 For inserts, see pages: RCMX-NR (167) 61
