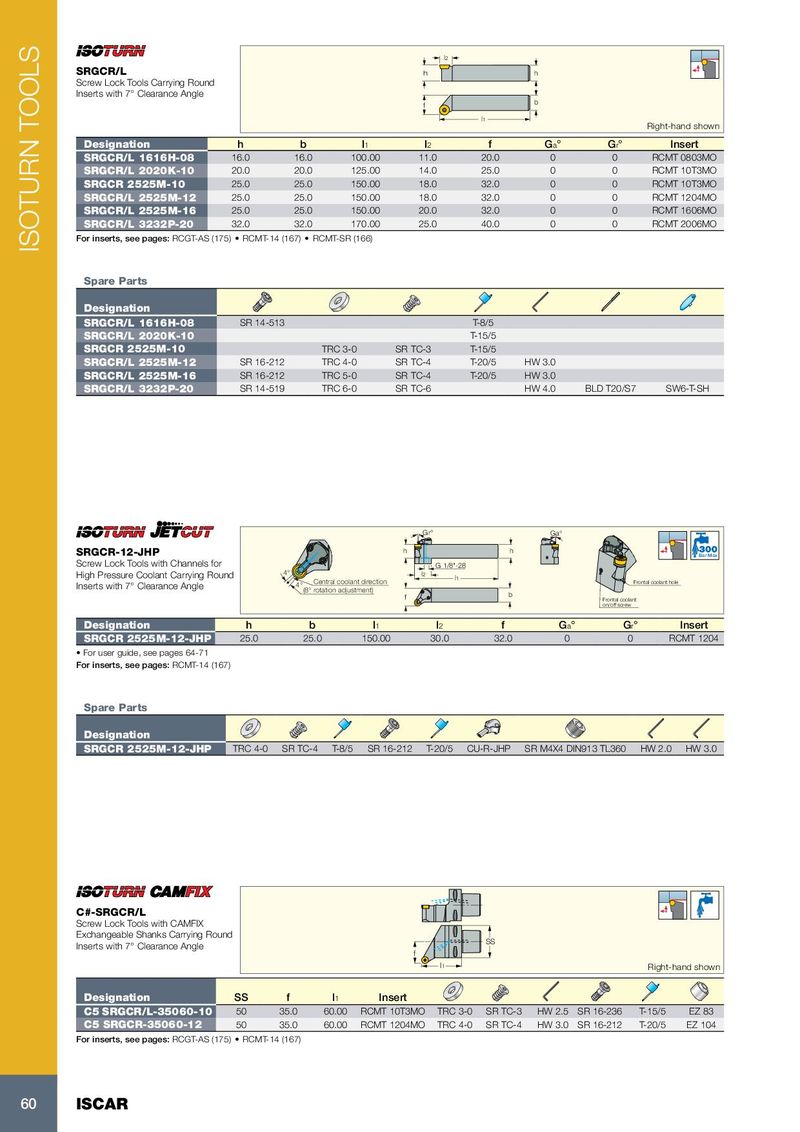

l2 SRGCR/L h h Screw Lock Tools Carrying Round Inserts with 7° Clearance Angle f b l1 Right-hand shown Designation h b l 1 l 2 f G a ° G r ° Insert SRGCR/L 1616H-08 16.0 16.0 100.00 11.0 20.0 0 0 RCMT 0803MO SRGCR/L 2020K-10 20.0 20.0 125.00 14.0 25.0 0 0 RCMT 10T3MO SRGCR 2525M-10 25.0 25.0 150.00 18.0 32.0 0 0 RCMT 10T3MO SRGCR/L 2525M-12 25.0 25.0 150.00 18.0 32.0 0 0 RCMT 1204MO SRGCR/L 2525M-16 25.0 25.0 150.00 20.0 32.0 0 0 RCMT 1606MO SRGCR/L 3232P-20 32.0 32.0 170.00 25.0 40.0 0 0 RCMT 2006MO For inserts, see pages: RCGT-AS (175) • RCMT-14 (167) • RCMT-SR (166) ISOTURN TOOLS Spare Parts Designation SRGCR/L 1616H-08 SR 14-513 T-8/5 SRGCR/L 2020K-10 T-15/5 SRGCR 2525M-10 TRC 3-0 SR TC-3 T-15/5 SRGCR/L 2525M-12 SR 16-212 TRC 4-0 SR TC-4 T-20/5 HW 3.0 SRGCR/L 2525M-16 SR 16-212 TRC 5-0 SR TC-4 T-20/5 HW 3.0 SRGCR/L 3232P-20 SR 14-519 TRC 6-0 SR TC-6 HW 4.0 BLD T20/S7 SW6-T-SH Gr° Ga° SRGCR-12-JHP h h Bar Max Screw Lock Tools with Channels for G 1/8"-28 High Pressure Coolant Carrying Round 4° l2 l1 Inserts with 7° Clearance Angle 4° Central coolant direction Frontal coolant hole (8° rotation adjustment) f b Frontal coolant on/off screw Designation h b l 1 l 2 f G a ° G r ° Insert SRGCR 2525M-12-JHP 25.0 25.0 150.00 30.0 32.0 0 0 RCMT 1204 • For user guide, see pages 64-71 For inserts, see pages: RCMT-14 (167) Spare Parts Designation SRGCR 2525M-12-JHP TRC 4-0 SR TC-4 T-8/5 SR 16-212 T-20/5 CU-R-JHP SR M4X4 DIN913 TL360 HW 2.0 HW 3.0 C#-SRGCR/L Screw Lock Tools with CAMFIX Exchangeable Shanks Carrying Round SS Inserts with 7° Clearance Angle f l1 Right-hand shown Designation SS f l 1 Insert C5 SRGCR/L-35060-10 50 35.0 60.00 RCMT 10T3MO TRC 3-0 SR TC-3 HW 2.5 SR 16-236 T-15/5 EZ 83 C5 SRGCR-35060-12 50 35.0 60.00 RCMT 1204MO TRC 4-0 SR TC-4 HW 3.0 SR 16-212 T-20/5 EZ 104 For inserts, see pages: RCGT-AS (175) • RCMT-14 (167) 60 ISCAR
