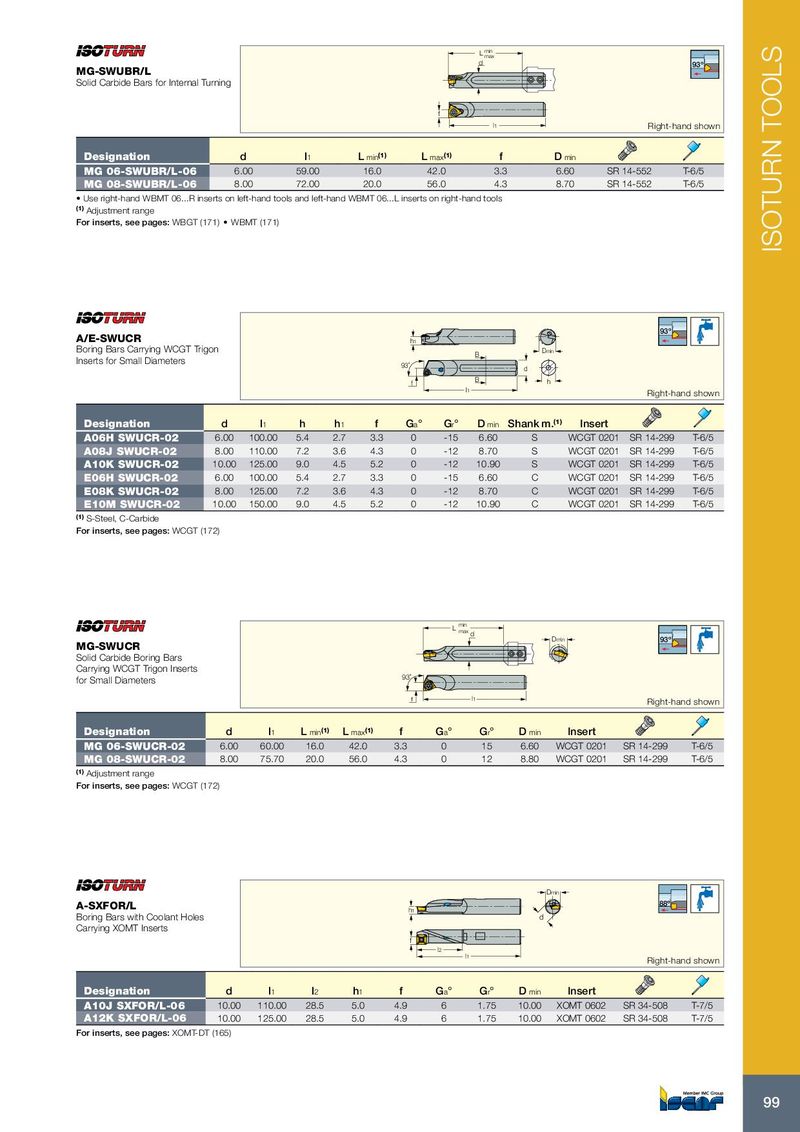

L min max d 93º MG-SWUBR/L Solid Carbide Bars for Internal Turning f l1 Right-hand shown Designation d l 1 L min (1) L max (1) f D min MG 06-SWUBR/L-06 6.00 59.00 16.0 42.0 3.3 6.60 SR 14-552 T-6/5 MG 08-SWUBR/L-06 8.00 72.00 20.0 56.0 4.3 8.70 SR 14-552 T-6/5 • Use right-hand WBMT 06...R inserts on left-hand tools and left-hand WBMT 06...L inserts on right-hand tools (1) Adjustment range For inserts, see pages: WBGT (171) • WBMT (171) ISOTURN TOOLS 93º A/E-SWUCR h1 Boring Bars Carrying WCGT Trigon B Dmin Inserts for Small Diameters 93˚ d f B h l1 Right-hand shown Designation d l 1 h h 1 f G a ° G r ° D min Shank m. (1) Insert A06H SWUCR-02 6.00 100.00 5.4 2.7 3.3 0 -15 6.60 S WCGT 0201 SR 14-299 T-6/5 A08J SWUCR-02 8.00 110.00 7.2 3.6 4.3 0 -12 8.70 S WCGT 0201 SR 14-299 T-6/5 A10K SWUCR-02 10.00 125.00 9.0 4.5 5.2 0 -12 10.90 S WCGT 0201 SR 14-299 T-6/5 E06H SWUCR-02 6.00 100.00 5.4 2.7 3.3 0 -15 6.60 C WCGT 0201 SR 14-299 T-6/5 E08K SWUCR-02 8.00 125.00 7.2 3.6 4.3 0 -12 8.70 C WCGT 0201 SR 14-299 T-6/5 E10M SWUCR-02 10.00 150.00 9.0 4.5 5.2 0 -12 10.90 C WCGT 0201 SR 14-299 T-6/5 (1) S-Steel, C-Carbide For inserts, see pages: WCGT (172) L min max d Dmin 93º MG-SWUCR Solid Carbide Boring Bars Carrying WCGT Trigon Inserts for Small Diameters 93˚ f l1 Right-hand shown Designation d l 1 L min (1) L max (1) f G a ° G r ° D min Insert MG 06-SWUCR-02 6.00 60.00 16.0 42.0 3.3 0 15 6.60 WCGT 0201 SR 14-299 T-6/5 MG 08-SWUCR-02 8.00 75.70 20.0 56.0 4.3 0 12 8.80 WCGT 0201 SR 14-299 T-6/5 (1) Adjustment range For inserts, see pages: WCGT (172) Dmin A-SXFOR/L 88º h 1 Boring Bars with Coolant Holes d Carrying XOMT Inserts f l 2 l 1 Right-hand shown Designation d l 1 l 2 h 1 f G a ° G r ° D min Insert A10J SXFOR/L-06 10.00 110.00 28.5 5.0 4.9 6 1.75 10.00 XOMT 0602 SR 34-508 T-7/5 A12K SXFOR/L-06 10.00 125.00 28.5 5.0 4.9 6 1.75 10.00 XOMT 0602 SR 34-508 T-7/5 For inserts, see pages: XOMT-DT (165) 99
