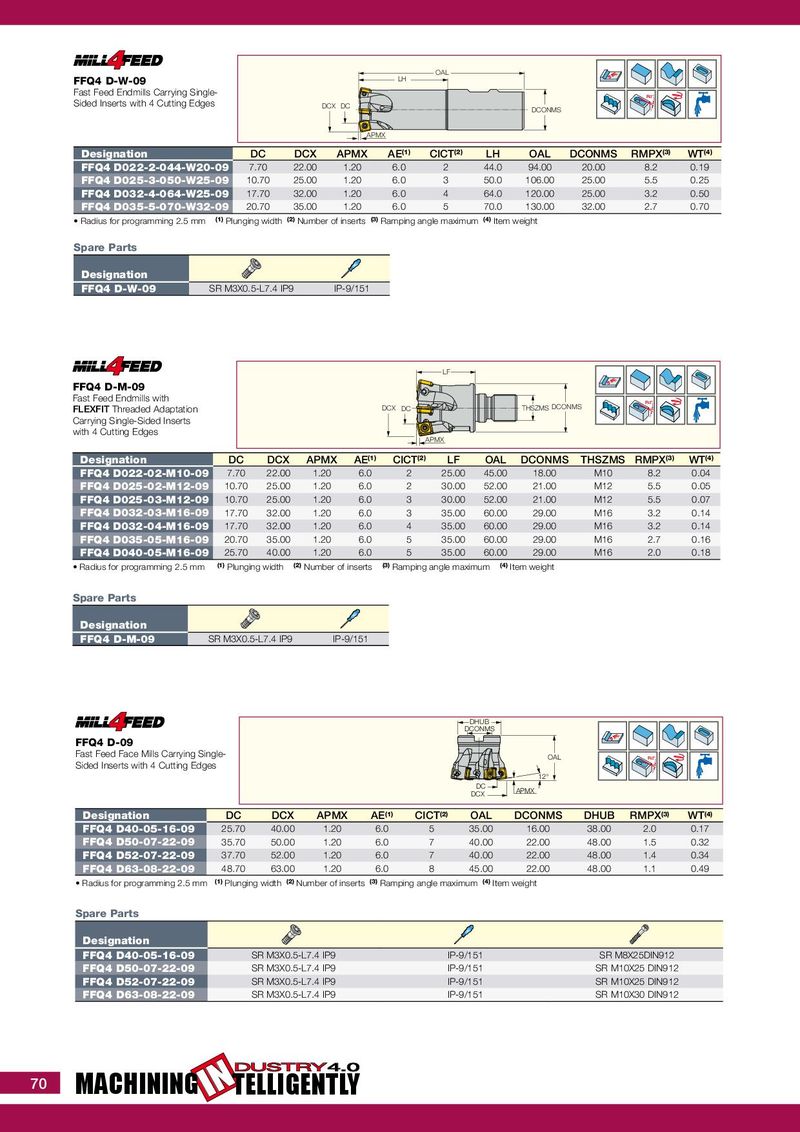

F O R I N T E R N A L U S E O N L Y • S U B J E C T T O C H A N G E OAL FFQ4 D-W-09 LH Fast Feed Endmills Carrying Single- Rd° Sided Inserts with 4 Cutting Edges DCX DC DCONMS APMX Designation DC DCX APMX AE (1) CICT (2) LH OAL DCONMS RMPX (3) WT (4) FFQ4 D022-2-044-W20-09 7.70 22.00 1.20 6.0 2 44.0 94.00 20.00 8.2 0.19 FFQ4 D025-3-050-W25-09 10.70 25.00 1.20 6.0 3 50.0 106.00 25.00 5.5 0.25 FFQ4 D032-4-064-W25-09 17.70 32.00 1.20 6.0 4 64.0 120.00 25.00 3.2 0.50 FFQ4 D035-5-070-W32-09 20.70 35.00 1.20 6.0 5 70.0 130.00 32.00 2.7 0.70 • Radius for programming 2.5 mm (1) Plunging width (2) Number of inserts (3) Ramping angle maximum (4) Item weight Spare Parts Designation FFQ4 D-W-09 SR M3X0.5-L7.4 IP9 IP-9/151 LF FFQ4 D-M-09 Fast Feed Endmills with Rd° FLEXFIT Threaded Adaptation DCX DC THSZMS DCONMS Carrying Single-Sided Inserts with 4 Cutting Edges APMX Designation DC DCX APMX AE (1) CICT (2) LF OAL DCONMS THSZMS RMPX (3) WT (4) FFQ4 D022-02-M10-09 7.70 22.00 1.20 6.0 2 25.00 45.00 18.00 M10 8.2 0.04 FFQ4 D025-02-M12-09 10.70 25.00 1.20 6.0 2 30.00 52.00 21.00 M12 5.5 0.05 FFQ4 D025-03-M12-09 10.70 25.00 1.20 6.0 3 30.00 52.00 21.00 M12 5.5 0.07 FFQ4 D032-03-M16-09 17.70 32.00 1.20 6.0 3 35.00 60.00 29.00 M16 3.2 0.14 FFQ4 D032-04-M16-09 17.70 32.00 1.20 6.0 4 35.00 60.00 29.00 M16 3.2 0.14 FFQ4 D035-05-M16-09 20.70 35.00 1.20 6.0 5 35.00 60.00 29.00 M16 2.7 0.16 FFQ4 D040-05-M16-09 25.70 40.00 1.20 6.0 5 35.00 60.00 29.00 M16 2.0 0.18 • Radius for programming 2.5 mm (1) Plunging width (2) Number of inserts (3) Ramping angle maximum (4) Item weight Spare Parts Designation FFQ4 D-M-09 SR M3X0.5-L7.4 IP9 IP-9/151 DHUB DCONMS FFQ4 D-09 Fast Feed Face Mills Carrying Single- OAL Rd° Sided Inserts with 4 Cutting Edges 12° DC DCX APMX Designation DC DCX APMX AE (1) CICT (2) OAL DCONMS DHUB RMPX (3) WT (4) FFQ4 D40-05-16-09 25.70 40.00 1.20 6.0 5 35.00 16.00 38.00 2.0 0.17 FFQ4 D50-07-22-09 35.70 50.00 1.20 6.0 7 40.00 22.00 48.00 1.5 0.32 FFQ4 D52-07-22-09 37.70 52.00 1.20 6.0 7 40.00 22.00 48.00 1.4 0.34 FFQ4 D63-08-22-09 48.70 63.00 1.20 6.0 8 45.00 22.00 48.00 1.1 0.49 • Radius for programming 2.5 mm (1) Plunging width (2) Number of inserts (3) Ramping angle maximum (4) Item weight Spare Parts Designation FFQ4 D40-05-16-09 SR M3X0.5-L7.4 IP9 IP-9/151 SR M8X25DIN912 FFQ4 D50-07-22-09 SR M3X0.5-L7.4 IP9 IP-9/151 SR M10X25 DIN912 FFQ4 D52-07-22-09 SR M3X0.5-L7.4 IP9 IP-9/151 SR M10X25 DIN912 FFQ4 D63-08-22-09 SR M3X0.5-L7.4 IP9 IP-9/151 SR M10X30 DIN912 DUSTRY 4.0 70 MACHINING IN TELLIGENTLY
