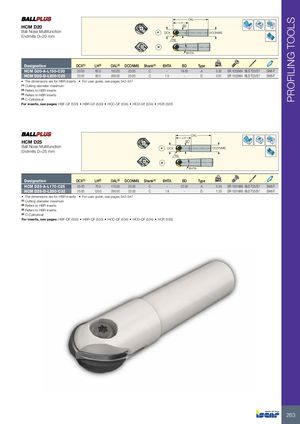

PROFILING TOOLS OAL LH HCM D20 BD Ball Nose Multifunction A DCX DCONMS Endmills D=20 mm RE D BHTA Designation DCX(1) LH(2) OAL(3) DCONMS Shank(4) BHTA BD Type kg HCM D20-A-L150-C20 20.00 60.0 150.00 20.00 C - 18.00 A 0.32 SR 1052964 BLD T25/S7 SW6-T HCM D20-D-L200-C25 20.00 90.0 200.00 25.00 C 1.0 - D 0.61 SR 1052964 BLD T25/S7 SW6-T • The dimensions are for HBR inserts • For user guide, see pages 542-547 (1) Cutting diameter maximum (2) Refers to HBR inserts (3) Refers to HBR inserts (4) C-Cylindrical For inserts, see pages: HBF-QF (533) • HBR-QF (533) • HCC-QF (534) • HCD-QF (534) • HCR (533) OAL LH HCM D25 BD Ball Nose Multifunction A DCX DCONMS Endmills D=25 mm RE D BHTA Designation DCX(1) LH(2) OAL(3) DCONMS Shank(4) BHTA BD Type kg HCM D25-A-L170-C25 25.00 70.0 170.00 25.00 C - 22.00 A 0.55 SR 1051666 BLD T25/S7 SW6-T HCM D25-D-L250-C32 25.00 125.0 250.00 32.00 C 1.8 - D 1.20 SR 1051666 BLD T25/S7 SW6-T • The dimensions are for HBR inserts • For user guide, see pages 542-547 (1) Cutting diameter maximum (2) Refers to HBR inserts (3) Refers to HBR inserts (4) C-Cylindrical For inserts, see pages: HBF-QF (533) • HBR-QF (533) • HCC-QF (534) • HCD-QF (534) • HCR (533) 263
