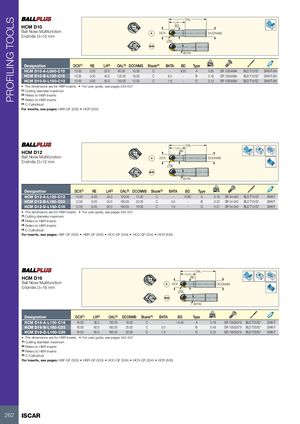

PROFILING TOOLS OAL LH HCM D10 BD Ball Nose Multifunction A DCX DCONMS Endmills D=10 mm RE B/D BHTA Designation DCX(1) RE LH(2) OAL(3) DCONMS Shank(4) BHTA BD Type kg HCM D10-A-L090-C10 10.00 5.00 25.0 90.00 10.00 C - 9.20 A 0.05 SR 10504694 BLD T15/S7 SW6-T-SH HCM D10-B-L125-C16 10.00 5.00 40.0 125.00 16.00 C 6.0 - B 0.16 SR 10504694 BLD T15/S7 SW6-T-SH HCM D10-D-L150-C12 10.00 5.00 50.0 150.00 12.00 C 1.8 - D 0.12 SR 10504694 BLD T15/S7 SW6-T-SH • The dimensions are for HBR inserts • For user guide, see pages 542-547 (1) Cutting diameter maximum (2) Refers to HBR inserts (3) Refers to HBR inserts (4) C-Cylindrical For inserts, see pages: HBR-QF (533) • HCR (533) OAL LH HCM D12 BD Ball Nose Multifunction A DCX DCONMS Endmills D=12 mm RE B/D BHTA Designation DCX(1) RE LH(2) OAL(3) DCONMS Shank(4) BHTA BD Type kg HCM D12-A-L120-C12 12.00 6.00 30.0 120.00 12.00 C - 10.60 A 0.10 SR 34-540 BLD T15/S7 SW6-T HCM D12-B-L160-C20 12.00 6.00 50.0 160.00 20.00 C 5.0 - B 0.32 SR 34-540 BLD T15/S7 SW6-T HCM D12-D-L160-C16 12.00 6.00 60.0 160.00 16.00 C 1.0 - D 0.21 SR 34-540 BLD T15/S7 SW6-T • The dimensions are for HBR inserts • For user guide, see pages 542-547 (1) Cutting diameter maximum (2) Refers to HBR inserts (3) Refers to HBR inserts (4) C-Cylindrical For inserts, see pages: HBF-QF (533) • HBR-QF (533) • HCC-QF (534) • HCD-QF (534) • HCR (533) OAL LH HCM D16 BD Ball Nose Multifunction A DCX DCONMS Endmills D=16 mm RE B/D BHTA Designation DCX(1) LH(2) OAL(3) DCONMS Shank(4) BHTA BD Type kg HCM D16-A-L130-C16 16.00 36.0 130.00 16.00 C - 14.40 A 0.18 SR 10503579 BLD T20/S7 SW6-T HCM D16-B-L160-C25 16.00 60.0 160.00 25.00 C 5.0 - B 0.49 SR 10503579 BLD T20/S7 SW6-T HCM D16-D-L160-C20 16.00 65.0 160.00 20.00 C 1.0 - D 0.32 SR 10503579 BLD T20/S7 SW6-T • The dimensions are for HBR inserts • For user guide, see pages 542-547 (1) Cutting diameter maximum (2) Refers to HBR inserts (3) Refers to HBR inserts (4) C-Cylindrical For inserts, see pages: HBF-QF (533) • HBR-QF (533) • HCC-QF (534) • HCD-QF (534) • HCR (533) 262 ISCAR
