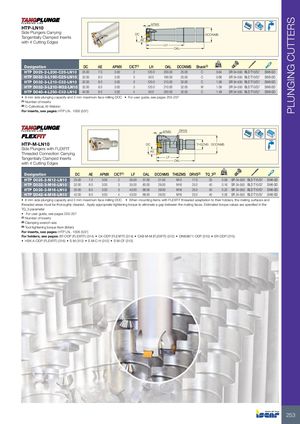

Каталог Iscar торцевые фрезы 2022 - страница 69

PLUNGING CUTTERS APMX HTP-LN10 Side Plungers Carrying DC DCONMS Tangentially Clamped Inserts with 4 Cutting Edges AE LH OAL Designation DC AE APMX CICT(1) LH OAL DCONMS Shank(2) kg HTP D025-2-L200-C25-LN10 25.00 7.0 3.00 2 120.0 200.00 25.00 C 0.64 SR 34-550 BLD T10/S7 SW6-SD HTP D032-3-L190-C25-LN10 32.00 8.0 3.00 3 50.0 190.00 25.00 C 0.68 SR 34-550 BLD T10/S7 SW6-SD HTP D032-3-L210-C32-LN10 32.00 8.0 3.00 3 120.0 210.00 32.00 C 1.09 SR 34-550 BLD T10/S7 SW6-SD HTP D032-3-L210-W32-LN10 32.00 8.0 3.00 3 120.0 210.00 32.00 W 1.09 SR 34-550 BLD T10/S7 SW6-SD HTP D040-4-L250-C32-LN10 40.00 8.0 3.00 4 50.0 250.00 32.00 C 1.49 SR 34-550 BLD T10/S7 SW6-SD • 8 mm side plunging capacity and 3 mm maximum face milling DOC • For user guide, see pages 255-257 (1) Number of inserts (2) C-Cylindrical, W-Weldon For inserts, see pages: HTP LN.. 1006 (537) APMX DRVS HTP-M-LN10 DC THSZMS DCONMS Side Plungers with FLEXFIT Threaded Connection Carrying AE Tangentially Clamped Inserts LF OAL with 4 Cutting Edges Designation DC AE APMX CICT(1) LF OAL DCONMS THSZMS DRVS(2) TQ_3(3) kg HTP D025-2-M12-LN10 25.00 7.0 3.00 2 35.00 57.00 21.00 M12 17.0 33 0.09 SR 34-550 BLD T10/S7 SW6-SD HTP D032-3-M16-LN10 32.00 8.0 3.00 3 35.00 60.00 29.00 M16 25.0 40 0.16 SR 34-550 BLD T10/S7 SW6-SD HTP D035-3-M16-LN10 35.00 8.0 3.00 3 43.00 68.00 29.00 M16 25.0 40 0.22 SR 34-550 BLD T10/S7 SW6-SD HTP D042-4-M16-LN10 42.00 8.0 3.00 4 43.00 68.00 29.00 M16 25.0 40 0.26 SR 34-550 BLD T10/S7 SW6-SD • 8 mm side plunging capacity and 3 mm maximum face milling DOC • When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter • For user guide, see pages 255-257 (1) Number of inserts (2) Clamping wrench size (3) Tool tightening torque Nxm (lbfxin) For inserts, see pages: HTP LN.. 1006 (537) For holders, see pages: BT-ODP (FLEXFIT) (314) • C#-ODP (FLEXFIT) (314) • CAB M-M (FLEXFIT) (312) • DIN69871-ODP (315) • ER-ODP (315) • HSK A-ODP (FLEXFIT) (316) • S M (312) • S M-C-H (312) • S M-CF (313) 253
