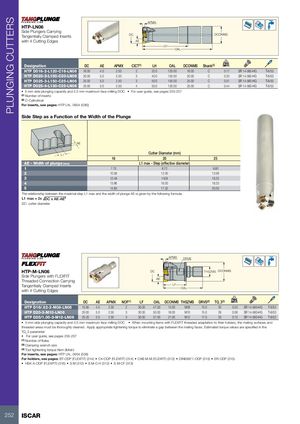

PLUNGING CUTTERS APMX HTP-LN06 Side Plungers Carrying Tangentially Clamped Inserts DC DCONMS with 4 Cutting Edges AE LH OAL Designation DC AE APMX CICT(1) LH OAL DCONMS Shank(2) kg HTP D016-2-L120-C16-LN06 16.00 4.5 2.50 2 32.0 120.00 16.00 C 0.17 SR 14-560-HG T-8/53 HTP D020-3-L150-C20-LN06 20.00 5.0 2.50 3 40.0 150.00 20.00 C 0.33 SR 14-560-HG T-8/53 HTP D025-3-L150-C25-LN06 25.00 5.0 2.50 3 50.0 150.00 25.00 C 0.51 SR 14-560-HG T-8/53 HTP D025-4-L130-C25-LN06 25.00 5.0 2.50 4 50.0 130.00 25.00 C 0.44 SR 14-560-HG T-8/53 • 5 mm side plunging capacity and 2.5 mm maximum face milling DOC • For user guide, see pages 255-257 (1) Number of inserts (2) C-Cylindrical For inserts, see pages: HTP LN.. 0604 (536)) Side Step as a Function of the Width of the Plunge AE L1 Cutter Diameter (mm) 16 20 25 AE - Width of plunge (mm) L1 max - Step (effective diameter) 1 7.75 8.72 9.80 2 10.58 12.00 13.56 3 12.49 1428 16.25 4 13.86 16.00 18.33 5 14.83 17.32 20.00 The relationship between the maximal step L1 max and the width of plunge AE is given by the following formula: L1 max = 2x √DC x AE-AE2 DC: cutter diameter APMX DRVS HTP-M-LN06 DC THSZMS DCONMS Side Plungers with FLEXFIT Threaded Connection Carrying AE Tangentially Clamped Inserts LF OAL with 4 Cutting Edges Designation DC AE APMX NOF(1) LF OAL DCONMS THSZMS DRVS(2) TQ_3(3) kg HTP D16/.62-2-M08-LN06 15.95 4.5 2.50 2 30.00 47.50 13.00 M08 10.0 20 0.03 SR 14-560-HG T-8/53 HTP D20-3-M10-LN06 20.00 5.0 2.50 3 30.00 50.00 18.00 M10 15.0 29 0.06 SR 14-560-HG T-8/53 HTP D25/1.00-3-M12-LN06 25.20 5.0 2.50 3 35.00 57.00 21.00 M12 17.0 33 0.10 SR 14-560-HG T-8/53 • 5 mm side plunging capacity and 2.5 mm maximum face milling DOC • When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter • For user guide, see pages 255-257 (1) Number of flutes (2) Clamping wrench size (3) Tool tightening torque Nxm (lbfxin) For inserts, see pages: HTP LN.. 0604 (536) For holders, see pages: BT-ODP (FLEXFIT) (314) • C#-ODP (FLEXFIT) (314) • CAB M-M (FLEXFIT) (312) • DIN69871-ODP (315) • ER-ODP (315) • HSK A-ODP (FLEXFIT) (316) • S M (312) • S M-C-H (312) • S M-CF (313) 252 ISCAR
