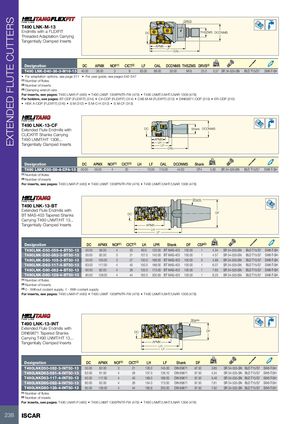

EXTENDED FLUTE CUTTERS DRVS T490 LNK-M-13 Endmills with a FLEXFIT DC THSZMS DCONMS Threaded Adaptation Carrying Tangentially Clamped Inserts APMX LF OAL Designation DC APMX NOF(1) CICT(2) LF OAL DCONMS THSZMS DRVS(3) kg T490 LNK-D40-36-3-M16-13 40.00 36.00 3 9 63.00 88.00 30.00 M16 25.0 0.37 SR 34-535-SN BLD T15/S7 SW6-T-SH • For adaptation options, see page 311 • For user guide, see pages 542-547 (1) Number of flutes (2) Number of inserts (3) Clamping wrench size For inserts, see pages: T490 LNAR-P (480) • T490 LNMT 1306PNTR-FW (479) • T490 LNMT/LNHT/LNAR 1306 (478) For holders, see pages: BT-ODP (FLEXFIT) (314) • C#-ODP (FLEXFIT) (314) • CAB M-M (FLEXFIT) (312) • DIN69871-ODP (315) • ER-ODP (315) • HSK A-ODP (FLEXFIT) (316) • S M (312) • S M-C-H (312) • S M-CF (313) T490 LNK-13-CF Extended Flute Endmills with DC Shank DCONMS CLICKFIT Shanks Carrying T490 LNMT/HT 1306... APMX Tangentially Clamped Inserts LHLF OAL Designation DC APMX NOF(1) CICT(2) LH LF OAL DCONMS Shank kg T490 LNK-D50-59-4-CF4-13 50.00 59.00 4 20 - 73.00 115.00 44.00 CF4 0.82 SR 34-535-SN BLD T15/S7 SW6-T-SH (1) Number of flutes (2) Number of inserts For inserts, see pages: T490 LNAR-P (480) • T490 LNMT 1306PNTR-FW (479) • T490 LNMT/LNHT/LNAR 1306 (478) Shank T490 LNK-13-BT Extended Flute Endmills with BT MAS-403 Tapered Shanks DC DF Carrying T490 LNMT/HT 13... Tangentially Clamped Inserts APMX LH LF Designation DC APMX NOF(1) CICT(2) LH LPR Shank DF CSP(3) kg T490LNK-D50-059-4-BT50-13 50.00 59.00 4 20 80.5 120.00 BT MAS-403 100.00 1 4.34 SR 34-535-SN BLD T15/S7 SW6-T-SH T490LNK-D50-082-3-BT50-13 50.00 82.00 3 21 107.0 145.00 BT MAS-403 100.00 1 4.57 SR 34-535-SN BLD T15/S7 SW6-T-SH T490LNK-D50-105-3-BT50-13 50.00 105.00 3 27 130.0 168.00 BT MAS-403 100.00 0 4.99 SR 34-535-SN BLD T15/S7 SW6-T-SH T490LNK-D63-117-4-BT50-13 63.00 117.00 4 40 150.0 188.00 BT MAS-403 100.00 1 6.07 SR 34-535-SN BLD T15/S7 SW6-T-SH T490LNK-D80-082-4-BT50-13 80.00 82.00 4 28 135.0 173.00 BT MAS-403 100.00 1 7.65 SR 34-535-SN BLD T15/S7 SW6-T-SH T490LNK-D80-128-4-BT50-13 80.00 128.00 4 44 162.0 200.00 BT MAS-403 100.00 1 8.25 SR 34-535-SN BLD T15/S7 SW6-T-SH (1) Number of flutes (2) Number of inserts (3) 0 - Without coolant supply, 1 - With coolant supply For inserts, see pages: T490 LNAR-P (480) • T490 LNMT 1306PNTR-FW (479) • T490 LNMT/LNHT/LNAR 1306 (478) Shank T490 LNK-13-INT Extended Flute Endmills with DIN69871 Tapered Shanks DC DF Carrying T490 LNMT/HT 13... Tangentially Clamped Inserts APMX LH LF Designation DC APMX NOF(1) CICT(2) LH LF Shank DF kg T490LNKD50-082-3-INT50-13 50.00 82.00 3 21 126.0 145.00 DIN 69871 97.50 3.85 SR 34-535-SN BLD T15/S7 SW6-T-SH T490LNKD63-081-4-INT50-13 63.00 81.00 4 28 107.0 126.10 DIN 69871 97.50 4.34 SR 34-535-SN BLD T15/S7 SW6-T-SH T490LNKD63-117-4-INT50-13 63.00 117.00 4 40 169.0 188.00 DIN 69871 97.50 5.46 SR 34-535-SN BLD T15/S7 SW6-T-SH T490LNKD80-082-4-INT50-13 80.00 82.00 4 28 154.0 173.00 DIN 69871 97.50 7.61 SR 34-535-SN BLD T15/S7 SW6-T-SH T490LNKD80-128-4-INT50-13 80.00 128.00 4 44 180.9 200.00 DIN 69871 97.50 7.92 SR 34-535-SN BLD T15/S7 SW6-T-SH (1) Number of flutes (2) Number of inserts For inserts, see pages: T490 LNAR-P (480) • T490 LNMT 1306PNTR-FW (479) • T490 LNMT/LNHT/LNAR 1306 (478) 238 ISCAR
