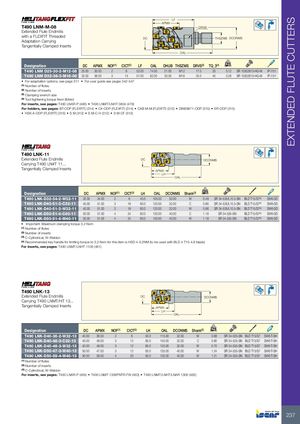

EXTENDED FLUTE CUTTERS LF APMX T490 LNM-M-08 DRVS Extended Flute Endmills with a FLEXFIT Threaded DC THSZMS DCONMS Adaptation Carrying Tangentially Clamped Inserts OAL Designation DC APMX NOF(1) CICT(2) LF OAL DHUB THSZMS DRVS(3) TQ_3(4) kg T490 LNM D25-30-2-M12-08 25.00 30.00 2 8 52.00 74.00 21.00 M12 17.0 33 0.12 SR 10502813-HG-M IP-7/51 T490 LNM D32-36-3-M16-08 32.00 36.00 3 15 57.00 82.00 30.00 M16 25.0 40 0.26 SR 10502813-HG-M IP-7/51 • For adaptation options, see page 311 • For user guide see pages 542-547 (1) Number of flutes (2) Number of inserts (3) Clamping wrench size (4) Tool tightening torque Nxm (lbfxin) For inserts, see pages: T490 LNAR-P (480) • T490 LNMT/LNHT 0804 (476) For holders, see pages: BT-ODP (FLEXFIT) (314) • C#-ODP (FLEXFIT) (314) • CAB M-M (FLEXFIT) (312) • DIN69871-ODP (315) • ER-ODP (315) • HSK A-ODP (FLEXFIT) (316) • S M (312) • S M-C-H (312) • S M-CF (313) T490 LNK-11 Extended Flute Endmills DC DCONMS Carrying T490 LN#T 11... Tangentially Clamped Inserts APMX LH OAL Designation DC APMX NOF(1) CICT(2) LH OAL DCONMS Shank(3) kg T490 LNK-D32-34-2-W32-11 32.00 34.00 2 8 45.0 105.00 32.00 W 0.49 SR 34-535/L10.5-SN BLD T15/S7(a) SW6-SD T490 LNK-D40-51-3-C32-11 40.00 51.00 3 18 60.0 120.00 32.00 C 0.66 SR 34-535/L10.5-SN BLD T15/S7(a) SW6-SD T490 LNK-D40-51-3-W32-11 40.00 51.00 3 18 60.0 120.00 32.00 W 0.66 SR 34-535/L10.5-SN BLD T15/S7(a) SW6-SD T490 LNK-D50-51-4-C40-11 50.00 51.00 4 24 60.0 130.00 40.00 C 1.18 SR 34-535-SN BLD T15/S7(a) SW6-SD T490 LNK-D50-51-4-W40-11 50.00 51.00 4 24 60.0 130.00 40.00 W 1.18 SR 34-535-SN BLD T15/S7(a) SW6-SD • Important: Maximum clamping torque 3.2 Nxm (1) Number of flutes (2) Number of inserts (3) C-Cylindrical, W-Weldon (a) Recommended key handle for limiting torque to 3.2 Nxm for this item is HSD 4-3.2NM (to be used with BLD 4 T15-4.8 blade) For inserts, see pages: T490 LNMT/LNHT 1106 (461) T490 LNK-13 Extended Flute Endmills DC DCONMS Carrying T490 LNMT/HT 13... Tangentially Clamped Inserts APMX LH OAL Designation DC APMX NOF(1) CICT(2) LH OAL DCONMS Shank(3) kg T490 LNK-D40-36-2-W32-13 40.00 36.00 2 6 50.0 115.00 32.00 W 0.68 SR 34-535-SN BLD T15/S7 SW6-T-SH T490 LNK-D40-48-3-C32-13 40.00 48.00 3 12 65.0 140.00 32.00 C 0.80 SR 34-535-SN BLD T15/S7 SW6-T-SH T490 LNK-D40-48-3-W32-13 40.00 48.00 3 12 65.0 125.00 32.00 W 0.70 SR 34-535-SN BLD T15/S7 SW6-T-SH T490 LNK-D50-47-3-W40-13 50.00 47.00 3 12 65.0 135.00 40.00 W 1.24 SR 34-535-SN BLD T15/S7 SW6-T-SH T490 LNK-D50-59-4-W40-13 50.00 59.00 4 20 65.0 135.00 40.00 W 1.21 SR 34-535-SN BLD T15/S7 SW6-T-SH (1) Number of flutes (2) Number of inserts (3) C-Cylindrical, W-Weldon For inserts, see pages: T490 LNAR-P (464) • T490 LNMT 1306PNTR-FW (463) • T490 LNMT/LNHT/LNAR 1306 (462) 237
