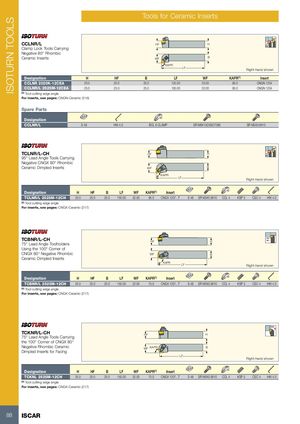

ISOTURN TOOLS Tools for Ceramic Inserts 95º CCLNR/L HF H 95º Clamp Lock Tools Carrying Negative 80° Rhombic Ceramic Inserts WF B KAPR LF Right-hand shown Designation H HF B LF WF KAPR(1) Insert CCLNR 2020K-12CEA 20.0 20.0 20.0 125.00 25.00 95.0 CNGN 1204 CCLNR/L 2525M-12CEA 25.0 25.0 25.0 150.00 32.00 95.0 CNGN 1204 (1) Tool cutting edge angle For inserts, see pages: CNGN-Ceramic (216) Spare Parts Designation CCLNR/L S 48 HW 4.0 BCL 6 CLAMP SR M6X1X25ISO7380 SR M5X0.8X10 95º TCLNR/L-CH HF H 95º 95° Lead Angle Tools Carrying Negative CNGX 80° Rhombic Ceramic Dimpled Inserts WF B KAPR LF Right-hand shown Designation H HF B LF WF KAPR(1) Insert TCLNR/L 2525M-12CH 25.0 25.0 25.0 150.00 32.00 95.0 CNGX 1207...T S 48 SR M5X0.8X10 CCL 4 KSP 5 CSC 4 HW 4.0 (1) Tool cutting edge angle For inserts, see pages: CNGX-Ceramic (217) TCBNR/L-CH 75ºHFH 75° Lead Angle Toolholders Using the 100° Corner of CNGX 80° Negative Rhombic WF B Ceramic Dimpled Inserts KAPR LF Right-hand shown Designation H HF B LF WF KAPR(1) Insert TCBNR/L 2525M-12CH 25.0 25.0 25.0 150.00 22.00 75.0 CNGX 1207...T S 48 SR M5X0.8X10 CCL 4 KSP 5 CSC 4 HW 4.0 (1) Tool cutting edge angle For inserts, see pages: CNGX-Ceramic (217) 75° TCKNR/L-CH75° Lead Angle Tools Carrying HF H the 100° Corner of CNGX 80° Negative Rhombic Ceramic WF KAPR B Dimpled Inserts for Facing LF Right-hand shown Designation H HF B LF WF KAPR(1) Insert TCKNL 2525M-12CH 25.0 25.0 25.0 150.00 32.00 75.0 CNGX 1207...T S 48 SR M5X0.8X10 CCL 4 KSP 5 CSC 4 HW 4.0 (1) Tool cutting edge angle For inserts, see pages: CNGX-Ceramic (217) 88 ISCAR
