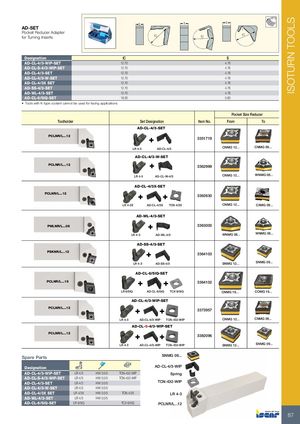

Каталог Iscar токарные державки ISO 2022 - страница 89

ISOTURN TOOLS KITS S S S AD-SET Pocket Reducer Adapterfor Turning Inserts IC IC IC Designation IC S AD-CL-4/3-WIP-SET 12.70 4.76 AD-CL-S-4/3-WIP-SET 12.70 4.76 AD-CL-4/3-SET 12.70 4.76 AD-CL-4/3-W-SET 12.70 4.76 AD-CL-4/3X SET 12.70 4.76 AD-SS-4/3-SET 12.70 4.76 AD-WL-4/3-SET 12.70 4.76 AD-CL-6/5IQ-SET 19.00 5.60 • Tools with K-type coolant cannot be used for facing applications Pocket Size Reducer Toolholder Set Designation Item No. From To AD-CL-4/3-SET PCLNR/L...12 + 3351719 LR 4-3 AD-CL-4/3 CNMG 12... CNMG 09... AD-CL-4/3-W-SET PCLNR/L...12 + 3362999 LR 4-3 AD-CL-W-4/3 CNMG 12... WNMG 06... AD-CL-4/3X-SET PCLNR/L...12 + + 3362630 LR 4-3X AD-CL-4/3X TCN 4/3X CNMG 12... CXMG 09... AD-WL-4/3-SET PWLNR/L...08 + 3363000 LR 4-3 AD-WL-4/3 WNMG 08... WNMG 06... AD-SS-4/3-SET PSKNR/L...12 + 3364103 LR 4-3 AD-SS-4/3 SNMG 12... SNMG 09... AD-CL-6/5IQ-SET PCLNR/L...19 + + 3364102 LR 6/5IQ AD-CL-6/5IQ TCX 6/5IQ CNMG 19... COMG 16... AD-CL-4/3-WIP-SET PCLNR/L...12 + + 3373957 LR 4-3 AD-CL-4/3-WIP TCN-432-WIP CNMG 12... CNMG 09... AD-CL-S-4/3-WIP-SET PCLNR/L...12 + + 3382096 LR 4-3 AD-CL-4/3-WIP TCN-432-WIP SNMG 12... SNMG 09... Spare Parts SNMG 09... Designation AD-CL-4/3-WIP AD-CL-4/3-WIP-SET LR 4/3 HW 3.0/5 TCN-432-WIP Spring AD-CL-S-4/3-WIP-SET LR 4/3 HW 3.0/5 TCN-432-WIP AD-CL-4/3-SET LR 4/3 HW 3.0/5 TCN-432-WIP AD-CL-4/3-W-SET LR 4/3 HW 3.0/5 AD-CL-4/3X SET LR 4/3X HW 3.0/5 TCN 4/3X LR 4-3 AD-WL-4/3-SET LR 4/3 HW 3.0/5 AD-CL-6/5IQ-SET LR 6/5IQ TCX 6/5IQ PCLNR/L...12 87
