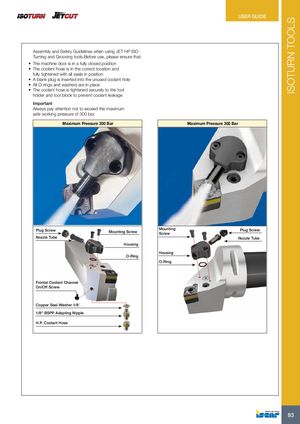

ISOTURN TOOLS USER GUIDE Assembly and Safety Guidelines when using JET HP ISO Turning and Grooving tools.Before use, please ensure that: • The machine door is in a fully closed position • The coolant hose is in the correct location and fully tightened with all seals in position • A blank plug is inserted into the unused coolant hole • All O-rings and washers are in place • The coolant hose is tightened securely to the tool holder and tool block to prevent coolant leakage Important Always pay attention not to exceed the maximum safe working pressure of 300 bar. Maximum Pressure 300 Bar Maximum Pressure 300 Bar Plug Screw MountingMounting ScrewScrew Plug Screw Nozzle Tube Nozzle Tube Housing Housing O-Ring O-Ring Frontal Coolant Channel On/Off Screw Copper Seal Washer 1/8” 1/8" BSPP Adapting Nipple H.P. Coolant Hose 83
