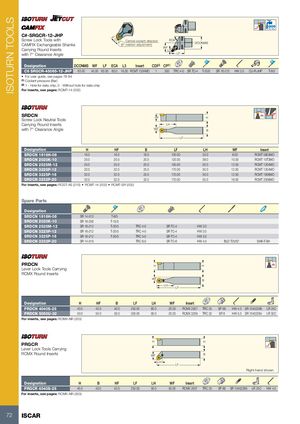

ISOTURN TOOLS Bar Max C#-SRGCR-12-JHP 4° Screw Lock Tools withCAMFIX Exchangeable Shanks 4° Central coolant direction ECA(8° rotation adjustment)DCONMS Carrying Round Inserts WF L3 with 7° Clearance Angle LF Designation DCONMS WF LF ECA L3 Insert CDI(2) CP(1) C6 SRGCR-45065-12-JHP 63.00 45.00 65.00 60.0 16.00 RCMT 1204MO 1 300 TRC 4-0 SR TC-4 T-20/5 SR 16-212 HW 3.0 CU-R-JHP T-8/5 • For user guide, see pages 78-84 (1) Coolant pressure (Bar) (2) 1 - Hole for data chip, 0 - Without hole for data chip For inserts, see pages: RCMT-14 (202) SRDCNScrew Lock Neutral Tools HF H Carrying Round Inserts LH with 7° Clearance Angle WF B LF Designation H HF B LF LH WF Insert SRDCN 1616H-08 16.0 16.0 16.0 100.00 33.0 8.00 RCMT 0803MO SRDCN 2020K-10 20.0 20.0 20.0 125.00 38.0 10.00 RCMT 10T3MO SRDCN 2525M-12 25.0 25.0 25.0 150.00 50.0 12.50 RCMT 1204MO SRDCN 3225P-12 32.0 32.0 25.0 170.00 50.0 12.50 RCMT 1204MO SRDCN 3225P-16 32.0 32.0 25.0 170.00 50.0 12.50 RCMT 1606MO SRDCN 3232P-20 32.0 32.0 32.0 170.00 50.0 16.00 RCMT 2006MO For inserts, see pages: RCGT-AS (213) • RCMT-14 (202) • RCMT-SR (202) Spare Parts Designation SRDCN 1616H-08 SR 14-513 T-8/5 SRDCN 2020K-10 SR 16-236 T-15/5 SRDCN 2525M-12 SR 16-212 T-20/5 TRC 4-0 SR TC-4 HW 3.0 SRDCN 3225P-12 SR 16-212 T-20/5 TRC 4-0 SR TC-4 HW 3.0 SRDCN 3225P-16 SR 16-212 T-20/5 TRC 5-0 SR TC-4 HW 3.0 SRDCN 3232P-20 SR 14-519 TRC 6-0 SR TC-6 HW 4.0 BLD T20/S7 SW6-T-SH PRDCN H H Lever Lock Tools Carrying RCMX Round Inserts WF B LH LF Designation H HF B LF LH WF Insert PRDCN 4040S-25 40.0 40.0 40.0 250.00 80.0 20.00 RCMX 2507 TRC 25 SP 66 HW 4.0 SR 10402289 LR 25C PRDCN 5050U-32 50.0 50.0 50.0 350.00 90.0 25.00 RCMX 3209 TRC 32 SP 8 HW 5.0 SR 10402264 LR 32C For inserts, see pages: RCMX-NR (203) PRGCR H H Lever Lock Tools Carrying RCMX Round Inserts WF B LH LF Right-hand shown Designation H B HF LF LH WF Insert PRGCR 4040S-25 40.0 40.0 40.0 250.00 30.0 50.00 RCMX 2507 TRC 25 SP 66 SR 10402289 LR 25C HW 4.0 For inserts, see pages: RCMX-NR (203) 72 ISCAR
