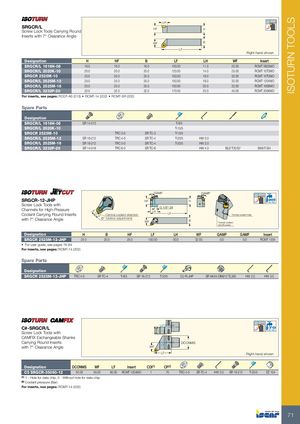

ISOTURN TOOLS LH SRGCR/LScrew Lock Tools Carrying Round HF H Inserts with 7° Clearance Angle WF B LF Right-hand shown Designation H HF B LF LH WF Insert SRGCR/L 1616H-08 16.0 16.0 16.0 100.00 11.0 20.00 RCMT 0803MO SRGCR/L 2020K-10 20.0 20.0 20.0 125.00 14.0 25.00 RCMT 10T3MO SRGCR 2525M-10 25.0 25.0 25.0 150.00 18.0 32.00 RCMT 10T3MO SRGCR/L 2525M-12 25.0 25.0 25.0 150.00 18.0 32.00 RCMT 1204MO SRGCR/L 2525M-16 25.0 25.0 25.0 150.00 20.0 32.00 RCMT 1606MO SRGCR/L 3232P-20 32.0 32.0 32.0 170.00 25.0 40.00 RCMT 2006MO For inserts, see pages: RCGT-AS (213) • RCMT-14 (202) • RCMT-SR (202) Spare Parts Designation SRGCR/L 1616H-08 SR 14-513 T-8/5 SRGCR/L 2020K-10 T-15/5 SRGCR 2525M-10 TRC 3-0 SR TC-3 T-15/5 SRGCR/L 2525M-12 SR 16-212 TRC 4-0 SR TC-4 T-20/5 HW 3.0 SRGCR/L 2525M-16 SR 16-212 TRC 5-0 SR TC-4 T-20/5 HW 3.0 SRGCR/L 3232P-20 SR 14-519 TRC 6-0 SR TC-6 HW 4.0 BLD T20/S7 SW6-T-SH GAMF GAMP SRGCR-12-JHP HF H Bar Max Screw Lock Tools with Channels for High-PressureCoolant Carrying Round Inserts G 1/8"-284°4°Central coolant directionLHLF Frontal coolant hole with 7° Clearance Angle (8° rotation adjustment) WF B Frontal coolant on/off screw Designation H B HF LF LH WF GAMP GAMF Insert SRGCR 2525M-12-JHP 25.0 25.0 25.0 150.00 30.0 32.00 0.0 0.0 RCMT 1204 • For user guide, see pages 78-84 For inserts, see pages: RCMT-14 (202) Spare Parts Designation SRGCR 2525M-12-JHP TRC 4-0 SR TC-4 T-8/5 SR 16-212 T-20/5 CU-R-JHP SR M4X4 DIN913 TL360 HW 2.0 HW 3.0 C#-SRGCR/L 70 Bar Max Screw Lock Tools with CAMFIX Exchangeable Shanks Carrying Round Inserts DCONMS with 7° Clearance Angle WF LF Right-hand shown Designation DCONMS WF LF Insert CDI(1) CP(2) C5 SRGCR-35060-12 50.00 35.00 60.00 RCMT 1204MO 1 70 TRC 4-0 SR TC-4 HW 3.0 SR 16-212 T-20/5 EZ 104 (1) 1 - Hole for data chip, 0 - Without hole for data chip (2) Coolant pressure (Bar) For inserts, see pages: RCMT-14 (202) 71
