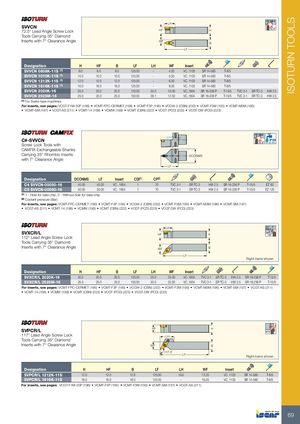

ISOTURN TOOLS 70°MAX LH SVVCN72.5° Lead Angle Screw Lock HF H 72.5º Tools Carrying 35° Diamond Inserts with 7° Clearance Angle WF B LF Designation H HF B LF LH WF Insert SVVCN 0808K-11S (1) 8.0 8.0 8.0 125.00 - 4.30 VC..1103 SR 14-560 T-8/5 SVVCN 1010K-11S (1) 10.0 10.0 10.0 125.00 - 5.30 VC..1103 SR 14-560 T-8/5 SVVCN 1212K-11S (1) 12.0 12.0 12.0 125.00 - 6.30 VC..1103 SR 14-560 T-8/5 SVVCN 1616K-11S (1) 16.0 16.0 16.0 125.00 - 8.30 VC..1103 SR 14-560 T-8/5 SVVCN 2020K-16 20.0 20.0 20.0 125.00 34.0 10.00 VC..1604 SR 16-236 P T-15/5 TVC 3-1 SR TC-3 HW 2.5 SVVCN 2525M-16 25.0 25.0 25.0 150.00 38.1 12.50 VC..1604 SR 16-236 P T-15/5 TVC 3-1 SR TC-3 HW 2.5 (1) For Swiss-type machines For inserts, see pages: VCGT-F1M-20P (196) • VCMT-FPC-CERMET (196) • VCMT-F3P (195) • VCGW-2 (CBN) (232) • VCMT-F3M (195) • VCMT-M3M (196) • VCMT-SM (197) • VCGT-AS (211) • VCMT-14 (198) • VCMW (198) • VCMT (CBN) (222) • VCGT (PCD) (223) • VCGT-DW (PCD) (223) 70°MAX C#-SVVCN 7072.5º Bar Max Screw Lock Tools with CAMFIX Exchangeable Shanks Carrying 35° Rhombic Inserts DCONMS with 7° Clearance Angle LF Designation DCONMS LF Insert CDI(1) CP(2) C4 SVVCN-00050-16 40.00 40.00 VC.. 1604 1 70 TVC 3-1 SR TC-3 HW 2.5 SR 16-236 P T-15/5 EZ 83 C5 SVVCN-00060-16 50.00 50.00 VC.. 1604 1 70 TVC 3-1 SR TC-3 HW 2.5 SR 16-236 P T-15/5 EZ 125 (1) 1 - Hole for data chip, 0 - Without hole for data chip (2) Coolant pressure (Bar) For inserts, see pages: VCMT-FPC-CERMET (196) • VCMT-F3P (195) • VCGW-2 (CBN) (232) • VCMT-F3M (195) • VCMT-M3M (196) • VCMT-SM (197) • VCGT-AS (211) • VCMT-14 (198) • VCMW (198) • VCMT (CBN) (222) • VCGT (PCD) (223) • VCGT-DW (PCD) (223) LH 31°MAX SVXCR/L HF H 112° 112° Lead Angle Screw Lock Tools Carrying 35° Diamond Inserts with 7° Clearance Angle WF B LF Right-hand shown Designation H HF B LF LH WF Insert SVXCR/L 2020K-16 20.0 20.0 20.0 125.00 25.0 25.00 VC..1604 TVC 3-1 SR TC-3 HW 2.5 SR 16-236 P T-15/5 SVXCR/L 2525M-16 25.0 25.0 25.0 150.00 30.0 32.00 VC..1604 TVC 3-1 SR TC-3 HW 2.5 SR 16-236 P T-15/5 For inserts, see pages: VCMT-FPC-CERMET (196) • VCMT-F3P (195) • VCGW-2 (CBN) (232) • VCMT-F3M (195) • VCMT-M3M (196) • VCMT-SM (197) • VCGT-AS (211) • VCMT-14 (198) • VCMW (198) • VCMT (CBN) (222) • VCGT (PCD) (223) • VCGT-DW (PCD) (223) SVPCR/L HF H 117.5° 117° Lead Angle Screw Lock LH Tools Carrying 35° Diamond Inserts with 7° Clearance Angle WF B 117.5˚ LF Right-hand shown Designation H HF B LF LH WF Insert SVPCR/L 1212K-11S 12.0 12.0 12.0 125.00 19.0 12.20 VC..1103 SR 14-560 T-8/5 SVPCR/L 1616K-11S 16.0 16.0 16.0 125.00 - 16.20 VC..1103 SR 14-560 T-8/5 For inserts, see pages: VCGT-F1M-20P (196) • VCMT-F3P (195) • VCMT-F3M (195) • VCMT-SM (197) • VCGT-AS (211) 69
