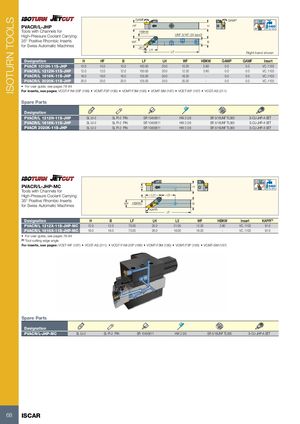

ISOTURN TOOLS GAMF GAMP 52° MAX PVACR/L-JHP HF H 91° Bar Max Tools with Channels for HBKW High-Pressure Coolant Carrying UNF 5/16”-24 typx3 35° Positive Rhombic Inserts WF B for Swiss Automatic Machines 91° LH LF Right-hand shown Designation H HF B LF LH WF HBKW GAMP GAMF Insert PVACR 1010H-11S-JHP 10.0 10.0 10.0 100.00 20.0 10.20 5.80 0.0 0.0 VC..1103 PVACR/L 1212H-11S-JHP 12.0 12.0 12.0 100.00 20.0 12.20 3.80 0.0 0.0 VC..1103 PVACR/L 1616K-11S-JHP 16.0 16.0 16.0 125.00 20.0 16.20 - 0.0 0.0 VC..1103 PVACR/L 2020K-11S-JHP 20.0 20.0 20.0 125.00 25.0 20.20 - 0.0 0.0 VC..1103 • For user guide, see pages 78-84 For inserts, see pages: VCGT-F1M-20P (196) • VCMT-F3P (195) • VCMT-F3M (195) • VCMT-SM (197) • VCET-WF (197) • VCGT-AS (211) Spare Parts Designation PVACR/L 1212H-11S-JHP SL LV-2 SL PI-2 PIN SR 10400611 HW 2.0/5 SR 5/16UNF TL360 S-CU-JHP-A SET PVACR/L 1616K-11S-JHP SL LV-2 SL PI-2 PIN SR 10400611 HW 2.0/5 SR 5/16UNF TL360 S-CU-JHP-A SET PVACR 2020K-11S-JHP SL LV-2 SL PI-2 PIN SR 10400611 HW 2.5/5 SR 5/16UNF TL360 S-CU-JHP-A SET 52° MAX PVACR/L-JHP-MC H H 91° Bar Max Tools with Channels for High-Pressure Coolant Carrying LH L5 35° Positive Rhombic Inserts for Swiss Automatic Machines WF HBKW B KAPR LF Designation H B LF LH L5 WF HBKW Insert KAPR(1) PVACR/L 1212X-11S-JHP-MC 12.0 12.0 70.00 25.0 21.00 12.20 3.80 VC..1103 91.0 PVACR/L 1616X-11S-JHP-MC 16.0 16.0 73.00 26.0 16.00 16.20 - VC..1103 91.0 • For user guide, see pages 78-84 (1) Tool cutting edge angle For inserts, see pages: VCET-WF (197) • VCGT-AS (211) • VCGT-F1M-20P (196) • VCMT-F3M (195) • VCMT-F3P (195) • VCMT-SM (197) Spare Parts Designation PVACR/L-JHP-MC SL LV-2 SL PI-2 PIN SR 10400611 HW 2.0/5 SR 5/16UNF TL360 S-CU-JHP-A SET 68 ISCAR
