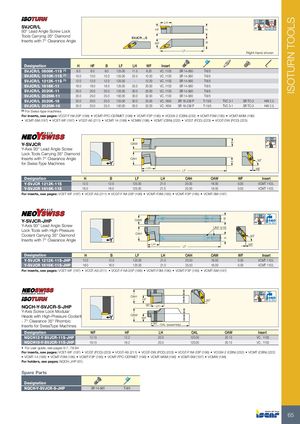

Каталог Iscar токарные державки ISO 2022 - страница 67

ISOTURN TOOLS LH 50°MAX 105° SVJCR/L93° Lead Angle Screw Lock HF H 93° Tools Carrying 35° Diamond SVJCR ...S Inserts with 7° Clearance Angle WF B LF Right-hand shown Designation H HF B LF LH WF Insert SVJCR/L 0808K-11S (1) 8.0 8.0 8.0 125.00 11.5 8.20 VC..1103 SR 14-560 T-8/5 SVJCR/L 1010K-11S (1) 10.0 10.0 10.0 125.00 22.0 10.20 VC..1103 SR 14-560 T-8/5 SVJCR/L 1212K-11S (1) 12.0 12.0 12.0 125.00 - 12.20 VC..1103 SR 14-560 T-8/5 SVJCR/L 1616K-11 16.0 16.0 16.0 125.00 25.0 20.00 VC..1103 SR 14-560 T-8/5 SVJCR/L 2020K-11 20.0 20.0 20.0 125.00 30.0 25.00 VC..1103 SR 14-560 T-8/5 SVJCR/L 2525M-11 25.0 25.0 25.0 150.00 30.0 32.00 VC..1103 SR 14-560 T-8/5 SVJCR/L 2020K-16 20.0 20.0 20.0 125.00 30.0 25.00 VC..1604 SR 16-236 P T-15/5 TVC 3-1 SR TC-3 HW 2.5 SVJCR/L 2525M-16 25.0 25.0 25.0 150.00 30.0 32.00 VC..1604 SR 16-236 P T-15/5 TVC 3-1 SR TC-3 HW 2.5 (1) For Swiss-type machines For inserts, see pages: VCGT-F1M-20P (196) • VCMT-FPC-CERMET (196) • VCMT-F3P (195) • VCGW-2 (CBN) (232) • VCMT-F3M (195) • VCMT-M3M (196) • VCMT-SM (197) • VCET-WF (197) • VCGT-AS (211) • VCMT-14 (198) • VCMW (198) • VCMT (CBN) (222) • VCGT (PCD) (223) • VCGT-DW (PCD) (223) 50° MAX Y-SVJCR OAW B 93° Y-Axis 93° Lead Angle Screw Lock Tools Carrying 35° Diamond Inserts with 7° Clearance Angle OAHfor Swiss-Type Machines H 93˚ LH LF WF Designation H B LF LH OAH OAW WF Insert Y-SVJCR 1212K-11S 12.0 12.0 125.00 21.0 20.00 16.00 0.00 VCMT 1103.. Y-SVJCR 1616K-11S 16.0 16.0 125.00 21.0 20.00 16.00 0.00 VCMT 1103.. For inserts, see pages: VCET-WF (197) • VCGT-AS (211) • VCGT-F1M-20P (196) • VCMT-F3M (195) • VCMT-F3P (195) • VCMT-SM (197) 50° Y-SVJCR-JHP OAW B MAX93° Bar Max Y-Axis 93° Lead Angle Screw UNF 5/16 Lock Tools with High-Pressure Coolant Carrying 35° Diamond OAHInserts with 7° Clearance Angle H 93˚ LH LF WF Designation H B LF LH OAH OAW WF Insert Y-SVJCR 1212K-11S-JHP 12.0 12.0 125.00 21.0 25.50 16.00 0.00 VCMT 1103.. Y-SVJCR 1616K-11S-JHP 16.0 16.0 125.00 21.0 25.50 16.00 0.00 VCMT 1103.. For inserts, see pages: VCET-WF (197) • VCGT-AS (211) • VCGT-F1M-20P (196) • VCMT-F3M (195) • VCMT-F3P (195) • VCMT-SM (197) 50° MAX OAH HF 93˚ 93° Bar Max NQCH-Y-SVJCR-S-JHP 90˚ LH Y-Axis Screw Lock Modular Heads with High-Pressure Coolant OAW WF - 7° Clearance 35° Rhombic Inserts for SwissType Machines 90˚ OAL (assembly) Designation WF HF LH OAL OAW Insert NQCH12-Y-SVJCR-11S-JHP 12.15 12.2 20.0 120.00 20.15 VC.. 1103 NQCH16-Y-SVJCR-11S-JHP 16.15 16.2 20.0 120.00 20.15 VC.. 1103 • For user guide, see pages 6-7, 78-84 For inserts, see pages: VCET-WF (197) • VCGT (PCD) (223) • VCGT-AS (211) • VCGT-DW (PCD) (223) • VCGT-F1M-20P (196) • VCGW-2 (CBN) (232) • VCMT (CBN) (222) • VCMT-14 (198) • VCMT-F3M (195) • VCMT-F3P (195) • VCMT-FPC-CERMET (196) • VCMT-M3M (196) • VCMT-SM (197) • VCMW (198) For holders, see pages: NQCH-JHP (61) Spare Parts Designation NQCH-Y-SVJCR-S-JHP SR 14-560 T-8/5 65
