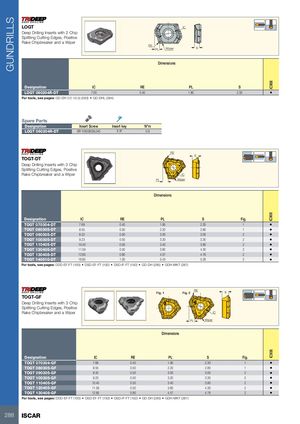

GUNDRILLS IC908IC908IC908 LOGT IC Deep Drilling Inserts with 2 Chip Splitting Cutting Edges, Positive Rake Chipbreaker and a Wiper RE PL Wiper S Dimensions Designation IC RE PL S LOGT 060204R-DT 7.00 0.40 1.80 2.00 • For tools, see pages: GD-DH (12-13.5) (283) • GD-DHL (284) Spare Parts Designation Insert Screw Insert key N*m LOGT 060204R-DT SR 10503833L040 T-7F 0.9 RE S TOGT-DT Deep Drilling Inserts with 3 Chip Splitting Cutting Edges, Positive Rake Chipbreaker and a Wiper IC PL Wiper Dimensions Designation IC RE PL S Fig. TOGT 070304-DT 7.69 0.40 1.95 2.30 1 • TOGT 080305-DT 8.55 0.50 2.20 2.80 1 • TOGT 090305-DT 8.32 0.50 3.00 3.00 2 • TOGT 100305-DT 9.23 0.50 3.20 3.30 2 • TOGT 110405-DT 10.40 0.50 3.40 3.80 2 • TOGT 120405-DT 11.59 0.50 3.60 4.30 2 • TOGT 130408-DT 12.85 0.80 4.57 4.76 2 • TOGT 140510-DT 16.85 1.00 5.43 5.26 2 • For tools, see pages: DDD-EF-FT (193) • DSD-EF-FT (192) • DSD-IF-FT (192) • GD-DH (285) • GDH-MKT (287) REFig. 1Fig. 2 S TOGT-GF Deep Drilling Inserts with 3 Chip Splitting Cutting Edges, Positive Rake Chipbreaker and a Wiper IC PL Wiper Dimensions Designation IC RE PL S Fig. TOGT 070304-GF 7.69 0.40 1.95 2.30 1 • TOGT 080305-GF 8.55 0.50 2.20 2.80 1 • TOGT 090305-GF 8.32 0.50 3.00 3.00 2 • TOGT 100305-GF 9.23 0.50 3.20 3.30 2 • TOGT 110405-GF 10.40 0.50 3.40 3.80 2 • TOGT 120405-GF 11.59 0.50 3.60 4.30 2 • TOGT 130408-GF 12.85 0.80 4.57 4.76 2 • For tools, see pages: DDD-EF-FT (193) • DSD-EF-FT (192) • DSD-IF-FT (192) • GD-DH (285) • GDH-MKT (287) 288 ISCAR
