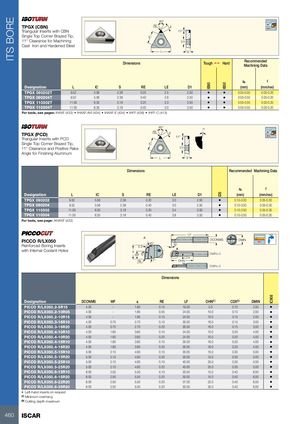

Каталог Iscar расточные системы 2022 - страница 78

ITS BORE IB90 ID5 IB50 IC908 60° TPGX (CBN) RE LE 91º Triangular Inserts with CBN 11° Single Top Corner Brazed Tip, IC 11° Clearance for Machining D1 Cast Iron and Hardened Steel L S Dimensions Tough 1  Hard RecommendedMachining Data ap f Designation L IC S RE LE D1 (mm) (mm/rev) TPGX 090202T 9.52 5.56 2.38 0.20 2.5 2.50 • • 0.05-0.50 0.03-0.20 TPGX 090204T 9.52 5.56 2.38 0.40 2.6 2.50 • • 0.05-0.50 0.03-0.20 TPGX 110302T 11.00 6.35 3.18 0.20 3.3 3.50 • • 0.05-0.50 0.03-0.20 TPGX 110304T 11.00 6.35 3.18 0.40 3.0 3.50 • • 0.05-0.50 0.03-0.20 For tools, see pages: IHAXF (432) • IHAXF-AVI (434) • IHAXF-E (434) • IHFF (436) • IHFF-C (413) 60° 7° TPGX (PCD)Triangular Inserts with PCD RE LE 11° 91º Single Top Corner Brazed Tip, IC 11° Clearance and Positive Rake D1 Angle for Finishing Aluminum L S Dimensions Recommended Machining Data ap f Designation L IC S RE LE D1 (mm) (mm/rev) TPGX 090202 9.52 5.56 2.38 0.20 3.0 2.50 • 0.10-3.00 0.05-0.30 TPGX 090204 9.52 5.56 2.38 0.40 3.0 2.50 • 0.10-3.00 0.05-0.30 TPGX 110302 11.00 6.35 3.18 0.20 3.4 3.50 • 0.10-3.00 0.05-0.30 TPGX 110304 11.00 6.35 3.18 0.40 3.8 3.50 • 0.10-3.00 0.05-0.30 For tools, see page: AIHAXF (432) LF PICCO R/LX050Reinforced Boring Inserts A DCONMS DMIN45°0.26° with Internal Coolant Holes AaWF6° DMIN≥3 CDX RE 7° OHN DMIN<3 Dimensions Designation DCONMS WF a RE LF OHN(1) CDX(2) DMIN PICCO R/LX050.2-5R15 4.00 - 1.80 0.15 19.00 5.0 0.10 2.00 • PICCO R/LX050.2-10R05 4.00 - 1.80 0.05 24.00 10.0 0.10 2.00 • PICCO R/LX050.2-10R15 4.00 - 1.80 0.15 24.00 10.0 0.10 2.00 • PICCO R/LX050.3-16R10 4.00 0.70 2.70 0.10 30.00 16.0 0.15 3.00 • PICCO R/LX050.3-16R20 4.00 0.70 2.70 0.20 30.00 16.0 0.15 3.00 • PICCO R/LX050.4-10R10 4.00 1.60 3.60 0.10 24.00 10.0 0.20 4.00 • PICCO R/LX050.4-10R20 4.00 1.60 3.60 0.20 24.00 10.0 0.20 4.00 • PICCO R/LX050.4-16R10 4.00 1.60 3.60 0.10 30.00 16.0 0.20 4.00 • PICCO R/LX050.4-16R20 4.00 1.60 3.60 0.20 30.00 16.0 0.20 4.00 • PICCO R/LX050.5-15R10 5.00 2.10 4.60 0.10 30.00 15.0 0.30 5.00 • PICCO R/LX050.5-15R20 5.00 2.10 4.60 0.20 30.00 15.0 0.30 5.00 • PICCO R/LX050.5-25R10 5.00 2.10 4.60 0.10 40.00 25.0 0.30 5.00 • PICCO R/LX050.5-25R20 5.00 2.10 4.60 0.20 40.00 25.0 0.30 5.00 • PICCO R/LX050.6-15R10 6.00 2.50 5.50 0.10 30.00 15.0 0.40 6.00 • PICCO R/LX050.6-15R20 6.00 2.50 5.50 0.20 30.00 15.0 0.40 6.00 • PICCO R/LX050.6-22R20 6.00 2.50 5.50 0.20 37.00 22.0 0.40 6.00 • PICCO R/LX050.6-35R20 6.00 2.50 5.50 0.20 50.00 35.0 0.40 6.00 • • Left-hand inserts on request (1) Minimum overhang (2) Cutting depth maximum 460 ISCAR
