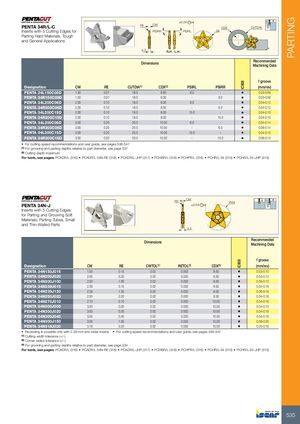

IC908 IC908 PARTING ±0.04 PENTA 34R/L-C RE CW CDX CUTDIA Inserts with 5 Cutting Edges for PSIRR PSIRL 34 Parting Hard Materials, Tough and General Applications 4.3 R.H. L.H. Dimensions RecommendedMachining Data f groove Designation CW RE CUTDIA(1) CDX(2) PSIRL PSIRR (mm/rev) PENTA 34L150C08D 1.50 0.07 18.0 8.00 8.0 - • 0.03-0.08 PENTA 34R150C08D 1.50 0.07 18.0 8.00 - 8.0 • 0.03-0.08 PENTA 34L200C06D 2.00 0.10 18.0 8.00 6.0 - • 0.04-0.12 PENTA 34R200C06D 2.00 0.10 18.0 8.00 - 6.0 • 0.04-0.12 PENTA 34L200C15D 2.00 0.10 18.0 8.00 15.0 - • 0.04-0.10 PENTA 34R200C15D 2.00 0.10 18.0 8.00 - 15.0 • 0.04-0.10 PENTA 34L300C06D 3.00 0.20 20.0 10.00 6.0 - • 0.04-0.14 PENTA 34R300C06D 3.00 0.20 20.0 10.00 - 6.0 • 0.06-0.14 PENTA 34L300C15D 3.00 0.20 20.0 10.00 15.0 - • 0.04-0.10 PENTA 34R300C15D 3.00 0.20 20.0 10.00 - 15.0 • 0.06-0.12 • For cutting speed recommendations and user guide, see pages 538-547 (1) For grooving and parting depths relative to part diameter, see page 537 (2) Cutting depth maximum For tools, see pages: PCADR/L (316) • PCADR/L 34N-RE (318) • PCADR/L-JHP (317) • PCHBR/L (318) • PCHPR/L (316) • PCHR/L-34 (315) • PCHR/L-34-JHP (315) RE CW Ø34 PENTA 34N-J ±0.04 Inserts with 5 Cutting Edges for Parting and Grooving Soft Materials, Parting Tubes, Small and Thin-Walled Parts 4.3 Dimensions RecommendedMachining Data f groove Designation CW RE CWTOL(1) RETOL(2) CDX(3) (mm/rev) PENTA 34N150J015 1.50 0.15 0.02 0.002 8.50 • 0.03-0.10 PENTA 34N200J020 2.00 0.20 0.02 0.002 8.50 • 0.04-0.12 PENTA 34N200J100 2.00 1.00 0.02 0.002 8.50 • 0.05-0.12 PENTA 34N239J015 2.39 0.15 0.02 0.002 8.50 • 0.04-0.16 PENTA 34N239J120 2.39 1.20 0.02 0.002 8.50 • 0.06-0.16 PENTA 34N250J020 2.50 0.20 0.02 0.002 8.50 • 0.04-0.16 PENTA 34N270J010 2.70 0.10 0.02 0.002 10.00 • 0.04-0.16 PENTA 34N300J000 3.00 0.00 0.02 0.000 10.00 • 0.04-0.10 PENTA 34N300J020 3.00 0.20 0.02 0.002 10.00 • 0.04-0.16 PENTA 34N300J040 3.00 0.40 0.02 0.002 10.00 • 0.04-0.16 PENTA 34N300J150 3.00 1.50 0.02 0.002 10.00 • 0.06-0.20 PENTA 34N318J020 3.18 0.20 0.02 0.002 10.00 • 0.20-0.16 • Recessing is possible only with 2.39 mm and wider inserts • For cutting speed recommendations and user guide, see pages 538-547 (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) (3) For grooving and parting depths relative to part diameter, see page 534 For tools, see pages: PCADR/L (316) • PCADR/L 34N-RE (318) • PCADR/L-JHP (317) • PCHBR/L (318) • PCHPR/L (316) • PCHR/L-34 (315) • PCHR/L-34-JHP (315) 535
