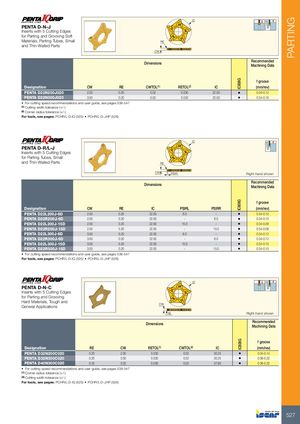

Каталог Iscar отрезка 2022 - страница 69

IC808GIC808GIC808G PARTING IC PENTA D-N-J Inserts with 5 Cutting Edges for Parting and Grooving Soft Materials, Parting Tubes, Small RE and Thin-Walled Parts CW Dimensions RecommendedMachining Data f groove Designation CW RE CWTOL(1) RETOL(2) IC (mm/rev) PENTA D22N200J020 2.00 0.20 0.02 0.030 22.00 • 0.04-0.12 PENTA D22N300J020 3.00 0.20 0.02 0.030 22.00 • 0.04-0.16 • For cutting speed recommendations and user guide, see pages 538-547 (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) For tools, see pages: PCHR/L-D-IQ (525) • PCHR/L-D-JHP (526) IC PENTA D-R/L-J Inserts with 5 Cutting Edges for Parting Tubes, Small and Thin-Walled Parts RE CW PSIR Right-hand shown Dimensions RecommendedMachining Data f groove Designation CW RE IC PSIRL PSIRR (mm/rev) PENTA D22L200J-6D 2.00 0.20 22.00 6.0 - • 0.04-0.10 PENTA D22R200J-6D 2.00 0.20 22.00 - 6.0 • 0.04-0.10 PENTA D22L200J-15D 2.00 0.20 22.00 15.0 - • 0.04-0.08 PENTA D22R200J-15D 2.00 0.20 22.00 - 15.0 • 0.04-0.08 PENTA D22L300J-6D 3.00 0.20 22.00 6.0 - • 0.04-0.12 PENTA D22R300J-6D 3.00 0.20 22.00 - 6.0 • 0.04-0.12 PENTA D22L300J-15D 3.00 0.20 22.00 15.0 - • 0.04-0.10 PENTA D22R300J-15D 3.00 0.20 22.00 - 15.0 • 0.04-0.10 • For cutting speed recommendations and user guide, see pages 538-547 For tools, see pages: PCHR/L-D-IQ (525) • PCHR/L-D-JHP (526) IC PENTA D-N-C Inserts with 5 Cutting Edges for Parting and Grooving Hard Materials, Tough and General Applications CW RE Right-hand shown Dimensions RecommendedMachining Data f groove Designation RE CW RETOL(1) CWTOL(2) IC (mm/rev) PENTA D32N200C020 0.20 2.00 0.030 0.02 30.25 • 0.04-0.14 PENTA D32N300C020 0.20 3.00 0.030 0.02 30.25 • 0.06-0.22 PENTA D40N300C020 0.20 3.02 0.030 0.02 37.80 • 0.06-0.22 • For cutting speed recommendations and user guide, see pages 538-547 (1) Corner radius tolerance (+/-) (2) Cutting width tolerance (+/-) For tools, see pages: PCHR/L-D-IQ (525) • PCHR/L-D-JHP (526) 527
