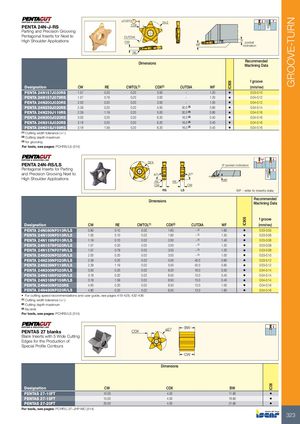

IC908 IC908 IC08 GROOVE-TURN ±0.025 24.2 PENTA 24N-J-RS CDX Parting and Precision Grooving Pentagonal Inserts for Next to CUTDIA High Shoulder Applications CW 3° pocket WF inclination RE Dimensions RecommendedMachining Data f groove Designation CW RE CWTOL(1) CDX(2) CUTDIA WF (mm/rev) PENTA 24N157J020RS 1.57 0.20 0.20 3.00 - 1.20 • 0.03-0.10 PENTA 24N157J079RS 1.57 0.79 0.20 3.00 - 1.20 • 0.04-0.12 PENTA 24N200J020RS 2.00 0.20 0.20 3.00 - 1.00 • 0.04-0.12 PENTA 24N239J020RS 2.39 0.20 0.20 5.00 30.0 (3) 0.80 • 0.04-0.14 PENTA 24N239J119RS 2.39 1.19 0.20 5.00 30.0 (3) 0.80 • 0.04-0.16 PENTA 24N300J020RS 3.00 0.20 0.20 6.20 16.0 (3) 0.40 • 0.04-0.16 PENTA 24N318J020RS 3.18 0.20 0.20 6.20 16.0 (3) 0.40 • 0.04-0.16 PENTA 24N318J159RS 3.18 1.59 0.20 6.20 16.0 (3) 0.40 • 0.04-0.16 (1) Cutting width tolerance (+/-) (2) Cutting depth maximum (3) for grooving For tools, see pages: PCHRS/LS (314) PENTA 24N-RS/LS D24 3º pocket inclination Pentagonal Inserts for Parting and Precision Grooving Next to 87º 87º High Shoulder Applications RE RE WF CW CW RS LS WF - refer to inserts data Dimensions RecommendedMachining Data f groove Designation CW RE CWTOL(1) CDX(2) CUTDIA WF (mm/rev) PENTA 24N080NF010R/LS 0.80 0.10 0.02 1.60 - (3) 1.60 • 0.03-0.05 PENTA 24N100NF010R/LS 1.00 0.10 0.02 1.80 - (3) 1.50 • 0.03-0.06 PENTA 24N119NF010R/LS 1.19 0.10 0.02 2.00 - (3) 1.40 • 0.03-0.06 PENTA 24N157NF020R/LS 1.57 0.20 0.02 3.00 - (3) 1.20 • 0.03-0.08 PENTA 24N157NF079R/LS 1.57 0.79 0.02 3.00 - (3) 1.20 • 0.03-0.08 PENTA 24N200NF020R/LS 2.00 0.20 0.02 3.00 - (3) 1.00 • 0.03-0.10 PENTA 24N239NF020R/LS 2.39 0.20 0.02 5.00 40.0 0.80 • 0.03-0.12 PENTA 24N239NF119R/LS 2.39 1.19 0.02 5.00 40.0 0.80 • 0.03-0.12 PENTA 24N300NF020R/LS 3.00 0.20 0.02 6.20 16.0 0.50 • 0.04-0.14 PENTA 24N318NF020R/LS 3.18 0.20 0.02 6.50 13.0 0.40 • 0.04-0.14 PENTA 24N318NF159R/LS 3.18 1.59 0.02 6.50 13.0 0.40 • 0.04-0.14 PENTA 24N400NF020RS 4.00 0.20 0.02 6.50 13.0 1.00 • 0.04-0.16 PENTA 24N480NF020R/LS 4.80 0.20 0.02 6.50 13.0 1.60 • 0.04-0.16 • For cutting speed recommendations and user guide, see pages 419-428, 432-436 (1) Cutting width tolerance (+/-) (2) Cutting depth maximum (3) No limit For tools, see pages: PCHRS/LS (314) PENTAS 27 blanks CDX ø27 BW Blank Inserts with 5 Wide Cutting Edges for the Production of Special Profile Contours CW Dimensions Designation CW CDX BW PENTAS 27-10FT 10.00 4.00 11.80 • PENTAS 27-15FT 15.00 4.00 16.80 • PENTAS 27-20FT 20.00 4.00 21.80 • For tools, see pages: PCHR/L-27-JHP-MC (314) 323
