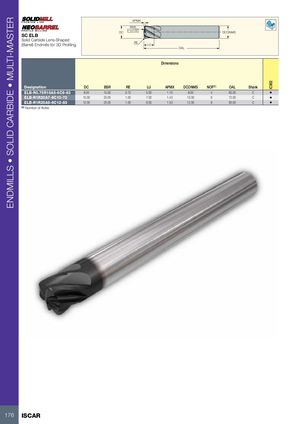

ENDMILLS • SOLID CARBIDE • MULTI-MASTER IC902 APMX BSR DC 0.02 DCONMS SC ELB Solid Carbide Lens-Shaped (Barrel) Endmills for 3D Profiling RE LU OAL Dimensions Designation DC BSR RE LU APMX DCONMS NOF(1) OAL Shank ELB-R0.75R16A5-6C8-63 8.00 15.00 0.75 5.00 1.10 8.00 4 63.00 C • ELB-R1R20A7-6C10-72 10.00 20.00 1.00 7.00 1.43 10.00 6 72.00 C • ELB-R1R25A9-6C12-83 12.00 25.00 1.00 9.00 1.53 12.00 6 83.00 C • (1) Number of flutes 176 ISCAR
