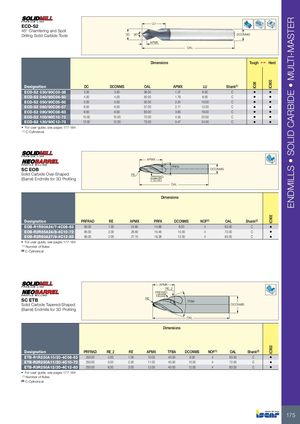

IC08 IC900IC902IC902 ENDMILLS • SOLID CARBIDE • MULTI-MASTER ECD-S2 LU 45° Chamfering and Spot Drilling Solid Carbide Tools DC 90° DCONMS APMX OAL Dimensions Tough 1  Hard Designation DC DCONMS OAL APMX LU Shank(1) ECD-S2 030/90C03-38 3.00 3.00 38.00 1.37 6.00 C • • ECD-S2 040/90C04-50 4.00 4.00 50.00 1.79 8.00 C • • ECD-S2 050/90C05-50 5.00 5.00 50.00 2.24 10.00 C • • ECD-S2 060/90C06-57 6.00 6.00 57.00 2.71 12.00 C • • ECD-S2 080/90C08-63 8.00 8.00 63.00 3.63 16.00 C • • ECD-S2 100/90C10-72 10.00 10.00 72.00 4.55 20.00 C • • ECD-S2 120/90C12-73 12.00 12.00 73.00 5.47 24.00 C • • • For user guide, see pages 177-184 (1) C-Cylindrical APMX PRFA SC EOB DCONMS Solid Carbide Oval-Shaped RE (Barrel) Endmills for 3D Profiling PRFRAD0.02 OAL Dimensions Designation PRFRAD RE APMX PRFA DCONMS NOF(1) OAL Shank(2) EOB-R1R90A24/7-4C08-63 90.00 1.00 24.80 14.88 8.00 4 63.00 C • EOB-R2R85A24/8-4C10-72 85.00 2.00 26.60 15.46 10.00 4 72.00 C • EOB-R2R80A27/9-4C12-83 80.00 2.00 27.10 18.38 12.00 4 83.00 C • • For user guide, see pages 177-184 (1) Number of flutes (2) C-Cylindrical APMX RE_2 PRFRAD 0.02 SC ETB RE TFBA Solid Carbide Tapered-Shaped DCONMS (Barrel) Endmills for 3D Profiling OAL Dimensions Designation PRFRAD RE_2 RE APMX TFBA DCONMS NOF(1) OAL Shank(2) ETB-R1R250A10/20-4C08-63 250.00 4.00 1.00 10.00 40.00 8.00 4 63.00 C • ETB-R2R250A11/20-4C10-72 250.00 5.00 2.00 11.00 40.00 10.00 4 72.00 C • ETB-R3R250A12/20-4C12-83 250.00 6.00 3.00 12.00 40.00 12.00 4 83.00 C • • For user guide, see pages 177-184 (1) Number of flutes (2) C-Cylindrical 175
