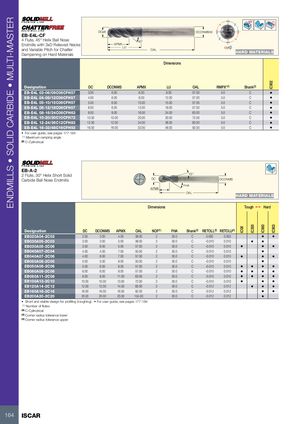

ENDMILLS • SOLID CARBIDE • MULTI-MASTER IC08 IC300 IC900 IC902IC903 Rd° α β DCe8 DCONMSh6 EB-E4L-CF 4 Flute, 45° Helix Ball Nose 45° β α Endmills with 3xD Relieved Necks APMX LUand Variable Pitch for ChatterOALDampening on Hard Materials α≠β HARD MATERIALS Dimensions Designation DC DCONMS APMX LU OAL RMPX°(1) Shank(2) EB-E4L 03-06/09C06CFH57 3.00 6.00 6.00 9.00 57.00 5.0 C • EB-E4L 04-08/12C06CFH57 4.00 6.00 8.00 12.00 57.00 5.0 C • EB-E4L 05-10/15C06CFH57 5.00 6.00 10.00 15.00 57.00 5.0 C • EB-E4L 06-12/18C06CFH57 6.00 6.00 12.00 18.00 57.00 5.0 C • EB-E4L 08-16/24C08CFH63 8.00 8.00 16.00 24.00 63.00 5.0 C • EB-E4L 10-20/30C10CFH72 10.00 10.00 20.00 30.00 72.00 5.0 C • EB-E4L 12-24/36C12CFH83 12.00 12.00 24.00 36.00 83.00 5.0 C • EB-E4L 16-32/48C16CFH92 16.00 16.00 32.00 48.00 92.00 5.0 C • • For user guide, see pages 177-184 (1) Maximum ramping angle (2) C-Cylindrical EB-A-2 2 Flute, 30° Helix Short Solid 15° Carbide Ball Nose Endmills DC DCONMS FHA APMX OAL HARD MATERIALS Dimensions Tough 1  Hard Designation DC DCONMS APMX OAL NOF(1) FHA Shank(2) RETOLL(3) RETOLU(4) EB020A04-2C03 2.00 3.00 4.00 38.00 2 30.0 C 0.000 0.005 • • EB030A05-2C03 3.00 3.00 5.00 38.00 2 30.0 C -0.010 0.010 • • EB030A05-2C06 3.00 6.00 5.00 57.00 2 30.0 C -0.010 0.010 • • • EB040A07-2C04 4.00 4.00 7.00 50.00 2 30.0 C -0.010 0.010 • EB040A07-2C06 4.00 6.00 7.00 57.00 2 30.0 C -0.010 0.010 • • • EB050A08-2C05 5.00 5.00 8.00 50.00 2 30.0 C -0.010 0.010 • EB050A08-2C06 5.00 6.00 8.00 57.00 2 30.0 C -0.010 0.010 • • • • EB060A08-2C06 6.00 6.00 8.00 57.00 2 30.0 C -0.010 0.010 • • • • EB080A11-2C08 8.00 8.00 11.00 63.00 2 30.0 C -0.010 0.010 • • • • EB100A13-2C10 10.00 10.00 13.00 72.00 2 30.0 C -0.010 0.010 • • • EB120A14-2C12 12.00 12.00 14.00 83.00 2 30.0 C -0.012 0.012 • • • EB160A16-2C16 16.00 16.00 16.00 92.00 2 30.0 C -0.012 0.012 • • EB200A20-2C20 20.00 20.00 20.00 104.00 2 30.0 C -0.012 0.012 • • Short and stable design for profiling (roughing). • For user guide, see pages 177-184 (1) Number of flutes (2) C-Cylindrical (3) Corner radius tolerance lower (4) Corner radius tolerance upper 164 ISCAR
