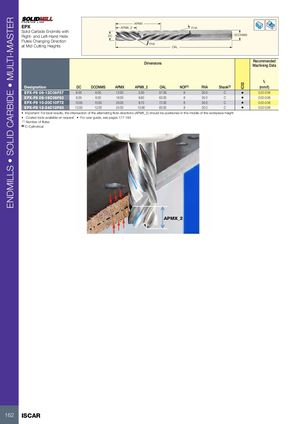

Каталог Iscar монолитные фрезы 2022 - страница 70

ENDMILLS • SOLID CARBIDE • MULTI-MASTER IC02 APMX EPX APMX_2 FHA Solid Carbide Endmills with Right- and Left-Hand Helix DC DCONMS Flutes Changing Direction at Mid Cutting Heights FHA OAL Dimensions RecommendedMachining Data fz Designation DC DCONMS APMX APMX_2 OAL NOF(1) FHA Shank(2) (mm/t) EPX-F6 06-12C06F57 6.00 6.00 12.00 5.30 57.00 6 30.0 C • 0.02-0.06 EPX-F6 08-16C08F63 8.00 8.00 16.00 6.60 63.00 6 30.0 C • 0.02-0.06 EPX-F6 10-20C10F72 10.00 10.00 20.00 8.70 72.00 6 30.0 C • 0.02-0.06 EPX-F8 12-24C12F83 12.00 12.00 24.00 10.60 83.00 8 30.0 C • 0.02-0.06 • Important: For best results, the intersection of the alternating flute directions (APMX_2) should be positioned in the middle of the workpiece height • Coated tools available on request • For user guide, see pages 177-184 (1) Number of flutes (2) C-Cylindrical 162 ISCAR
