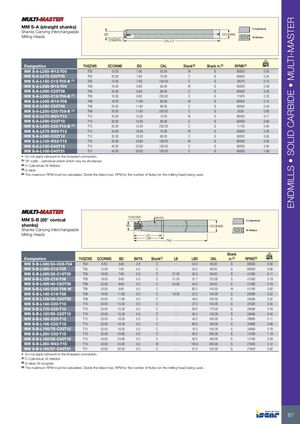

ENDMILLS • SOLID CARBIDE • MULTI-MASTER MM S-A (straight shanks) C-Cylindrical Shanks Carrying Interchangeable Milling Heads BD DCONMS W-Weldon THSZWS OAL/LF Designation THSZWS DCONMS BD OAL Shank(2) Shank m.(3) RPMX(4) kg MM S-A-L055-W12-T05 T05 12.00 7.60 55.00 W S 60000 0.05 MM S-A-L070-C20T05 T05 20.00 7.60 70.00 C S 60000 0.24 MM S-A-L150-C12-T05-B (1) T05 12.00 7.60 150.00 C S 18270 0.13 MM S-A-L065-W16-T06 T06 16.00 9.60 65.00 W S 60000 0.09 MM S-A-L080-C25T06 T06 25.00 9.60 80.00 C S 60000 0.29 MM S-A-L200-C16-T06-B (1) T06 16.00 9.60 200.00 C S 11970 0.33 MM S-A-L065-W16-T08 T08 16.00 11.60 65.00 W S 60000 0.10 MM S-A-L080-C25T08 T08 25.00 11.60 80.00 C S 60000 0.40 MM S-A-L250-C20-T08-B (1) T08 20.00 11.60 250.00 C S 9330 0.60 MM S-A-L070-W20-T10 T10 20.00 15.30 70.00 W S 60000 0.17 MM S-A-L080-C32T10 T10 32.00 15.30 80.00 C S 60000 0.65 MM S-A-L250-C25-T10-B (1) T10 25.00 15.30 250.00 C S 11130 0.94 MM S-A-L075-W25-T12 T12 25.00 18.30 75.00 W S 60000 0.28 MM S-A-L080-C32T12 T12 32.00 18.30 80.00 C S 60000 0.65 MM S-A-L100-W32-T15 T15 32.00 23.90 100.00 W S 60000 0.30 MM S-A-L100-C40T15 T15 40.00 23.90 100.00 C S 60000 0.94 MM S-A-L100-C40T21 T21 40.00 30.00 100.00 C S 60000 1.56 • Do not apply lubricant to the threaded connection. (1) "B" suffix - cylindrical shank which may be shortened. (2) C-Cylindrical, W-Weldon (3) S-steel (4) The maximum RPM must be calculated. Divide the listed max. RPM by the number of flutes (on the milling head) being used. MM S-B (85° conical THSZWS BHTA C-Cylindrical shanks) BD DCONMS Shanks Carrying Interchangeable W-Weldon Milling Heads LB LBX OAL Shank Designation THSZWS DCONMS BD BHTA Shank(1) LB LBX OAL m.(2) RPMX(3) kg MM S-B-L080/24-C08-T04 T04 8.00 5.80 2.6 C - 24.0 80.00 S 60000 0.00 MM S-B-L080-C12-T05 T05 12.00 7.60 5.0 C - 25.0 80.00 S 60000 0.06 MM S-B-L085/32-C16T05 T05 16.00 7.60 5.0 C 27.00 32.0 85.00 S 41280 0.11 MM S-B-L125-C16-T06 T06 16.00 9.60 5.0 C 31.50 31.7 125.00 S 41280 0.19 MM S-B-L095/40-C20T06 T06 20.00 9.60 5.0 C 34.00 40.0 95.00 S 41280 0.19 MM S-B-L140-C20-T06-W T06 20.00 9.65 5.0 C - 60.3 140.50 W 51180 0.62 MM S-B-L140-C16-T08 T08 16.00 11.60 5.0 C 19.30 22.0 140.00 S 25590 0.22 MM S-B-L100/48-C20T08 T08 20.00 11.60 5.0 C - 48.0 100.00 S 25590 0.32 MM S-B-L140-C20-T10 T10 20.00 15.30 5.0 C - 27.0 140.00 S 31020 0.34 MM S-B-L170-C25-T10 T10 25.00 15.30 5.0 C - 56.0 170.00 S 29490 0.16 MM S-B-L120/55-C25T10 T10 25.00 15.30 5.0 C - 55.4 120.00 S 29490 0.40 MM S-B-L160-C25-T12 T12 25.00 18.30 5.0 C - 40.0 160.00 S 28680 0.11 MM S-B-L190-C32-T12 T12 32.00 18.30 5.0 C - 80.0 190.00 S 34890 0.56 MM S-B-L150/78-C32T12 T12 32.00 18.30 5.0 C - 78.3 150.00 S 34890 0.78 MM S-B-L200-C32-T15 T15 32.00 23.90 5.0 C - 50.0 200.00 S 14160 1.19 MM S-B-L180/92-C40T15 T15 40.00 23.90 5.0 C - 92.0 180.00 S 14160 0.28 MM S-B-L250-W40-T15 T15 40.00 23.90 5.0 W - 100.0 250.00 S 21840 2.12 MM S-B-L150/57-C40T21 T21 40.00 30.00 5.0 C - 57.0 150.00 S 21840 0.62 • Do not apply lubricant to the threaded connection. (1) C-Cylindrical, W-Weldon (2) S-steel, W-tungsten (3) The maximum RPM must be calculated. Divide the listed max. RPM by the number of flutes (on the milling head) being used. 87
