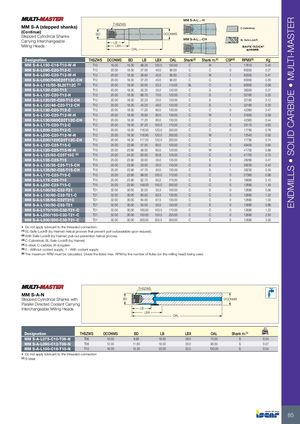

Каталог Iscar концевые фрезы со сменными пластинами 2022 - страница 87

ENDMILLS • SOLID CARBIDE • MULTI-MASTER MM S-A-L...-H THSZWS MM S-A (stepped shanks) C-Cylindrical (Continue)Stepped Cylindrical Shanks BD DCONMS Carrying Interchangeable LB MM S-A-L...-CH SL-Safe-Lock® Milling Heads LBX OAL Designation THSZWS DCONMS BD LB LBX OAL Shank(3) Shank m.(4) CSP(5) RPMX(6) Kg MM S-A-L150-C16-T10-W-H T10 16.00 15.30 98.20 100.0 150.00 C W 1 17610 0.45 MM S-A-L090-C20-T12-C T12 20.00 18.30 37.00 40.0 90.00 C C 0 60000 0.27 MM S-A-L090-C20-T12-W-H T12 20.00 18.30 36.90 40.0 90.00 C W 1 60000 0.41 MM S-A-L090/040C20T12C-CH T12 20.00 18.30 37.20 40.0 90.00 C C 1 60000 0.30 MM S-A-L110/50-SL20T12C (1) T12 20.00 18.30 50.00 53.3 110.00 SL C 0 60000 0.08 MM S-A-L120-C20-T12 T12 20.00 18.30 20.30 25.0 120.00 C S 0 36000 0.27 MM S-A-L120-C20-T12-H T12 20.00 18.30 66.70 70.0 120.00 C S 1 32160 0.25 MM S-A-L120/25-C20-T12-CH T12 20.00 18.30 22.20 25.0 120.00 C S 1 32160 0.12 MM S-A-L120/48-C20-T12-CH T12 20.00 18.30 45.20 48.0 120.00 C S 1 32160 0.20 MM S-A-L130-C20-T12-C T12 20.00 18.30 77.20 80.0 130.00 C C 0 42360 0.47 MM S-A-L130-C20-T12-W-H T12 20.00 18.30 76.90 80.0 130.00 C W 1 31650 0.59 MM S-A-L130/080C20T12C-CH T12 20.00 18.30 77.20 80.0 130.00 C C 1 42360 0.44 MM S-A-L170-C20-T12-C T12 20.00 18.30 97.20 100.0 170.00 C C 0 25170 0.63 MM S-A-L200-C20-T12-C T12 20.00 18.30 116.50 120.0 200.00 C C 0 17790 0.76 MM S-A-L200-C20-T12-W-H T12 20.00 18.30 116.90 120.0 200.00 C W 1 12540 0.92 MM S-A-L200/120C20T12C-CH T12 20.00 18.30 117.20 120.0 200.00 C C 1 17790 0.74 MM S-A-L120-C25-T15-C T15 25.00 23.90 57.50 60.0 120.00 C C 0 49400 0.64 MM S-A-L120-C25-T15-W-H T15 25.00 23.90 58.00 60.0 120.00 C W 1 41700 0.89 MM S-A-L125/63-C25T15C (2) T15 25.00 24.00 63.00 65.8 125.00 C C 0 41700 0.75 MM S-A-L135-C25-T15 T15 25.00 23.90 33.00 35.0 135.00 C S 0 28290 0.47 MM S-A-L135/35-C25-T15-CH T15 25.00 23.90 33.00 35.0 135.00 C S 1 28230 0.42 MM S-A-L135/50-C25-T15-CH T15 25.00 23.90 47.70 50.0 135.00 C S 1 28230 0.40 MM S-A-L170-C25-T15-C T15 25.00 23.90 98.00 100.0 170.00 C C 0 27360 0.96 MM S-A-L175-C25-T15 T15 25.00 23.90 62.70 65.0 175.00 C S 0 16890 0.10 MM S-A-L250-C25-T15-C T15 25.00 23.90 148.00 150.0 250.00 C C 0 12690 1.45 MM S-A-L100/32-C32-T21 T21 32.00 30.00 32.00 35.3 100.00 C S 0 12690 0.56 MM S-A-L130/60-C32-T21-C T21 32.00 30.00 60.00 63.3 130.00 C C 0 12690 1.22 MM S-A-L135/64-C32T21C T21 32.00 30.00 64.00 67.5 135.00 C C 0 12690 1.02 MM S-A-L150/50-C32-T21 T21 32.00 30.00 50.00 53.5 150.00 C S 0 12690 0.86 MM S-A-L170/100-C32-T21-C T21 32.00 30.00 100.00 103.5 170.00 C C 0 12690 1.22 MM S-A-L250/150-C32-T21-C T21 32.00 30.00 150.00 153.5 250.00 C C 0 12690 2.50 MM S-A-L300/200-C32-T21-C T21 32.00 30.00 200.00 203.5 300.00 C C 0 12690 3.00 • Do not apply lubricant to the threaded connection. (1) SL-Safe-Lock® (by Haimer) helical grooves that prevent pull-out(available upon request). (2) With Safe-Lock® (by Haimer) pull-out prevention helical grooves (3) C-Cylindrical, SL-Safe-Lock® (by Haimer) (4) S-steel, C-carbide, W-tungsten (5) 0 - Without coolant supply, 1 - With coolant supply (6) The maximum RPM must be calculated. Divide the listed max. RPM by the number of flutes (on the milling head) being used. THSZWS MM S-A-N Stepped Cylindrical Shanks with BD DCONMS Parallel Directed Coolant Carrying Interchangeable Milling Heads LB LBX OAL Designation THSZWS DCONMS BD LB LBX OAL Shank m.(1) kg MM S-A-L075-C10-T06-N T06 10.00 9.60 18.00 28.0 75.00 S 0.04 MM S-A-L090-C12-T08-N T08 12.00 11.60 18.00 30.0 90.00 S 0.07 MM S-A-L100-C16-T10-N T10 16.00 15.30 23.00 35.0 100.00 S 0.04 • Do not apply lubricant to the threaded connection (1) S-steel 85
