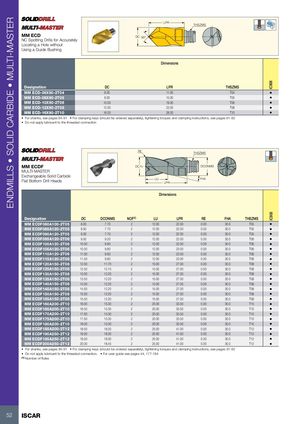

ENDMILLS • SOLID CARBIDE • MULTI-MASTER IC908IC908 LPR THSZMS MM ECD DC 90° NC Spotting Drills for Accurately Locating a Hole without Using a Guide Bushing Dimensions Designation DC LPR THSZMS MM ECD-06X90-2T04 6.00 11.00 T04 • MM ECD-08X90-2T05 8.00 15.00 T05 • MM ECD-10X90-2T06 10.00 19.00 T06 • MM ECD-12X90-2T08 12.00 23.00 T08 • MM ECD-16X90-2T10 16.00 28.00 T10 • • For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92 • Do not apply lubricant to the threaded connection RE THSZMS MM ECDF DC h7 DCONMS MULTI-MASTER Exchangeable Solid Carbide Flat Bottom Drill Heads LU FHALPR Dimensions Designation DC DCONMS NOF(1) LU LPR RE FHA THSZMS MM ECDF080A100-2T05 8.00 7.70 2 12.00 22.00 0.00 30.0 T05 • MM ECDF085A120-2T05 8.50 7.70 2 12.00 22.00 0.00 30.0 T05 • MM ECDF090A120-2T05 9.00 7.70 2 12.00 22.00 0.00 30.0 T05 • MM ECDF095A120-2T06 9.50 9.20 2 12.00 22.00 0.00 30.0 T06 • MM ECDF100A120-2T06 10.00 9.60 2 12.00 22.00 0.00 30.0 T06 • MM ECDF105A120-2T06 10.50 9.60 2 12.00 23.00 0.00 30.0 T06 • MM ECDF110A120-2T06 11.00 9.60 2 12.00 23.00 0.00 30.0 T06 • MM ECDF115A120-2T06 11.50 9.60 2 12.00 23.00 0.00 30.0 T06 • MM ECDF120A150-2T08 12.00 11.70 2 15.00 27.00 0.00 30.0 T08 • MM ECDF125A150-2T08 12.50 12.10 2 15.00 27.00 0.00 30.0 T08 • MM ECDF130A150-2T08 13.00 12.20 2 15.00 27.00 0.00 30.0 T08 • MM ECDF135A150-2T08 13.50 12.20 2 15.00 27.00 0.00 30.0 T08 • MM ECDF140A150-2T08 14.00 12.20 2 15.00 27.00 0.00 30.0 T08 • MM ECDF145A150-2T08 14.50 12.20 2 15.00 27.00 0.00 30.0 T08 • MM ECDF150A150-2T08 15.00 12.20 2 15.00 27.00 0.00 30.0 T08 • MM ECDF155A150-2T08 15.50 12.20 2 15.00 27.00 0.00 30.0 T08 • MM ECDF160A200-2T10 16.00 15.30 2 20.00 33.50 0.00 30.0 T10 • MM ECDF165A200-2T10 16.50 15.30 2 20.00 33.50 0.00 30.0 T10 • MM ECDF170A200-2T10 17.00 15.30 2 20.00 33.50 0.00 30.0 T10 • MM ECDF175A200-2T10 17.50 15.30 2 20.00 33.50 0.00 30.0 T10 • MM ECDF180A200-2T10 18.00 15.30 2 20.00 33.50 0.00 30.0 T10 • MM ECDF185A200-2T12 18.50 18.20 2 25.00 41.00 0.00 30.0 T12 • MM ECDF190A250-2T12 19.00 18.30 2 25.00 41.00 0.00 30.0 T12 • MM ECDF195A250-2T12 19.50 18.30 2 25.00 41.00 0.00 30.0 T12 • MM ECDF200A250-2T12 20.00 18.45 2 25.00 41.00 0.00 30.0 T12 • • For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92 • Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184 (1) Number of flutes 52 ISCAR
