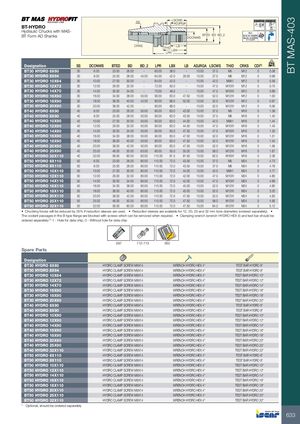

BT MAS-403 SS LSCWSADJRGA A 0.003 A 58-60 HRc BT-HYDRO Hydraulic Chucks with MAS- G2.5 BT Form AD Shanks BTED BD BD_2DCONWS Size 30, 40= 18,000RPMSize 50= 12,000RPM U<1.0 gmm CRKS THID LB LBX LPR Designation SS DCONWS BTED BD BD_2 LPR LBX LB ADJRGA LSCWS THID CRKS CDI(1) kg BT30 HYDRO 6X60 30 6.00 23.00 26.00 - 60.00 38.0 - 10.00 37.0 M5 M12 0 0.58 BT30 HYDRO 8X64 30 8.00 25.00 28.00 45.00 64.00 42.0 29.00 10.00 37.0 M6 M12 0 0.68 BT30 HYDRO 10X64 30 10.00 27.00 30.00 - 64.00 42.0 - 10.00 42.0 M8X1 M12 0 0.59 BT30 HYDRO 12X72 30 12.00 29.00 32.00 - 72.00 50.0 - 10.00 47.0 M10X1 M12 0 0.70 BT30 HYDRO 14X70 30 14.00 30.00 34.00 - 70.00 48.0 - 10.00 47.0 M10X1 M12 0 0.69 BT30 HYDRO 16X90 30 16.00 34.00 38.00 50.00 90.00 63.0 47.50 10.00 52.0 M12X1 M12 0 1.00 BT30 HYDRO 18X90 30 18.00 36.00 40.00 42.00 90.00 68.0 52.00 10.00 52.0 M12X1 M12 0 0.97 BT30 HYDRO 20X90 30 20.00 38.00 42.00 - 90.00 68.0 - 10.00 52.0 M12X1 M12 0 0.56 BT40 HYDRO 6X90 40 6.00 23.00 26.00 50.00 90.00 63.0 43.00 10.00 37.0 M5 M16 0 1.39 BT40 HYDRO 8X90 40 8.00 25.00 28.00 50.00 90.00 63.0 43.50 10.00 37.0 M6 M16 0 1.40 BT40 HYDRO 10X90 40 10.00 27.00 30.00 50.00 90.00 63.0 44.00 10.00 42.0 M8X1 M16 0 1.44 BT40 HYDRO 12X90 40 12.00 29.00 32.00 50.00 90.00 63.0 44.50 10.00 47.0 M10X1 M16 0 1.45 BT40 HYDRO 14X90 40 14.00 30.00 34.00 50.00 90.00 63.0 47.50 10.00 47.0 M10X1 M16 0 1.35 BT40 HYDRO 16X90 40 16.00 34.00 38.00 50.00 90.00 63.0 47.50 10.00 52.0 M12X1 M16 0 1.51 BT40 HYDRO 18X90 40 18.00 36.00 40.00 50.00 90.00 63.0 47.50 10.00 52.0 M12X1 M16 0 1.54 BT40 HYDRO 20X90 40 20.00 38.00 42.00 50.00 90.00 63.0 47.50 10.00 52.0 M12X1 M16 0 1.56 BT40 HYDRO 25X90 40 25.00 46.00 50.00 63.00 90.00 55.0 55.00 10.00 58.0 M12X1 M16 0 1.67 BT40 HYDRO 32X110 40 32.00 56.00 60.00 60.00 110.00 81.5 81.50 10.00 62.0 M16X1 M16 0 2.36 BT50 HYDRO 6X110 50 6.00 23.00 26.00 80.00 110.00 72.0 43.00 10.00 37.0 M5 M24 0 4.73 BT50 HYDRO 8X110 50 8.00 25.00 28.00 80.00 110.00 72.0 43.50 10.00 37.0 M6 M24 0 4.76 BT50 HYDRO 10X110 50 10.00 27.00 30.00 80.00 110.00 72.0 44.00 10.00 42.0 M8X1 M24 0 4.77 BT50 HYDRO 12X110 50 12.00 29.00 32.00 80.00 110.00 72.0 42.00 10.00 47.0 M10X1 M24 0 4.80 BT50 HYDRO 14X110 50 14.00 30.00 34.00 80.00 110.00 72.0 42.00 10.00 47.0 M10X1 M24 0 4.69 BT50 HYDRO 16X110 50 16.00 34.00 38.00 80.00 110.00 72.0 45.00 10.00 52.0 M12X1 M24 0 4.80 BT50 HYDRO 18X110 50 18.00 36.00 40.00 80.00 110.00 72.0 45.00 10.00 52.0 M12X1 M24 0 3.20 BT50 HYDRO 20X110 50 20.00 38.00 42.00 80.00 110.00 72.0 47.50 10.00 52.0 M12X1 M24 0 4.83 BT50 HYDRO 25X110 50 25.00 46.00 50.00 80.00 110.00 72.0 47.50 10.00 58.0 M12X1 M24 0 4.95 BT50 HYDRO 32X110 50 32.00 56.00 60.00 80.00 110.00 72.0 47.50 10.00 64.0 M12X1 M24 0 5.12 • Chucking forces will be reduced by 25% if reduction sleeves are used. • Reduction sleeves are available for 12, 20, 25 and 32 mm bore diameters (ordered separately). • The coolant passages in the B type flange are blocked with screws which can be removed when required. • Clamping wrench (wrench HYDRO HEX 4) and test bar should be ordered separately.(1) 1 - Hole for data chip, 0 - Without hole for data chip 697 712-713 562 Spare Parts Designation BT30 HYDRO 6X60 HYDRO CLAMP SCREW M8X14 WRENCH HYDRO HEX 4* TEST BAR HYDRO 6* BT30 HYDRO 8X64 HYDRO CLAMP SCREW M8X14 WRENCH HYDRO HEX 4* TEST BAR HYDRO 8* BT30 HYDRO 10X64 HYDRO CLAMP SCREW M8X14 WRENCH HYDRO HEX 4* TEST BAR HYDRO 10* BT30 HYDRO 12X72 HYDRO CLAMP SCREW M8X14 WRENCH HYDRO HEX 4* TEST BAR HYDRO 12* BT30 HYDRO 14X70 HYDRO CLAMP SCREW M8X14 WRENCH HYDRO HEX 4* TEST BAR HYDRO 14* BT30 HYDRO 16X90 HYDRO CLAMP SCREW M8X14 WRENCH HYDRO HEX 4* TEST BAR HYDRO 16* BT30 HYDRO 18X90 HYDRO CLAMP SCREW M8X14 WRENCH HYDRO HEX 4* TEST BAR HYDRO 18* BT30 HYDRO 20X90 HYDRO CLAMP SCREW M8X14 WRENCH HYDRO HEX 4* TEST BAR HYDRO 20* BT40 HYDRO 6X90 HYDRO CLAMP SCREW M8X14 WRENCH HYDRO HEX 4* TEST BAR HYDRO 6* BT40 HYDRO 8X90 HYDRO CLAMP SCREW M8X14 WRENCH HYDRO HEX 4* TEST BAR HYDRO 8* BT40 HYDRO 10X90 HYDRO CLAMP SCREW M8X14 WRENCH HYDRO HEX 4* TEST BAR HYDRO 10* BT40 HYDRO 12X90 HYDRO CLAMP SCREW M8X14 WRENCH HYDRO HEX 4* TEST BAR HYDRO 12* BT40 HYDRO 14X90 HYDRO CLAMP SCREW M8X14 WRENCH HYDRO HEX 4* TEST BAR HYDRO 14* BT40 HYDRO 16X90 HYDRO CLAMP SCREW M8X14 WRENCH HYDRO HEX 4* TEST BAR HYDRO 16* BT40 HYDRO 18X90 HYDRO CLAMP SCREW M8X14 WRENCH HYDRO HEX 4* TEST BAR HYDRO 18* BT40 HYDRO 20X90 HYDRO CLAMP SCREW M8X14 WRENCH HYDRO HEX 4* TEST BAR HYDRO 20* BT40 HYDRO 25X90 HYDRO CLAMP SCREW M8X14 WRENCH HYDRO HEX 4* TEST BAR HYDRO 25* BT40 HYDRO 32X110 HYDRO CLAMP SCREW M8X14 WRENCH HYDRO HEX 4* TEST BAR HYDRO 32* BT50 HYDRO 6X110 HYDRO CLAMP SCREW M8X14 WRENCH HYDRO HEX 4* TEST BAR HYDRO 6* BT50 HYDRO 8X110 HYDRO CLAMP SCREW M8X14 WRENCH HYDRO HEX 4* TEST BAR HYDRO 8* BT50 HYDRO 10X110 HYDRO CLAMP SCREW M8X14 WRENCH HYDRO HEX 4* TEST BAR HYDRO 10* BT50 HYDRO 12X110 HYDRO CLAMP SCREW M8X14 WRENCH HYDRO HEX 4* TEST BAR HYDRO 12* BT50 HYDRO 14X110 HYDRO CLAMP SCREW M8X14 WRENCH HYDRO HEX 4* TEST BAR HYDRO 14* BT50 HYDRO 16X110 HYDRO CLAMP SCREW M8X14 WRENCH HYDRO HEX 4* TEST BAR HYDRO 16* BT50 HYDRO 18X110 HYDRO CLAMP SCREW M8X14 WRENCH HYDRO HEX 4* TEST BAR HYDRO 18* BT50 HYDRO 20X110 HYDRO CLAMP SCREW M8X14 WRENCH HYDRO HEX 4* TEST BAR HYDRO 20* BT50 HYDRO 25X110 HYDRO CLAMP SCREW M8X14 WRENCH HYDRO HEX 4* TEST BAR HYDRO 25* BT50 HYDRO 32X110 HYDRO CLAMP SCREW M8X14 WRENCH HYDRO HEX 4* TEST BAR HYDRO 32* * Optional, should be ordered separately 633
