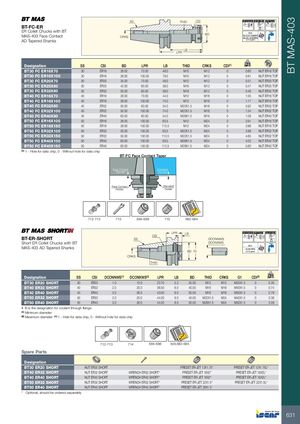

Каталог Iscar инструментальная оснастка 2022 - страница 83

BT MAS-403 SS THID CSI A 0.003 A 58-60 HRc AT3 Taper BT-FC-ER ER Collet Chucks with BTMAS-403 Face Contact CRKS BD G2.5Size 30, 40= 25,000RPMSize 50= 20.000RPM AD Tapered Shanks U<1.0 gmm LB LPR Designation SS CSI BD LPR LB THID CRKS CDI(1) kg BT30 FC ER16X70 30 ER16 28.00 70.00 48.0 M10 M12 0 0.60 NUT ER16 TOP BT30 FC ER16X100 30 ER16 28.00 100.00 79.0 M10 M12 0 0.61 NUT ER16 TOP BT30 FC ER20X70 30 ER20 34.00 70.00 48.0 M12 M12 0 0.51 NUT ER20 TOP BT30 FC ER25X60 30 ER25 42.00 60.00 38.0 M16 M12 0 0.47 NUT ER25 TOP BT30 FC ER32X60 30 ER32 50.00 60.00 38.0 M18 M12 0 0.46 NUT ER32 TOP BT40 FC ER16X70 40 ER16 28.00 70.00 44.0 M12 M16 0 1.05 NUT ER16 TOP BT40 FC ER16X100 40 ER16 28.00 100.00 74.0 M12 M16 0 1.17 NUT ER16 TOP BT40 FC ER32X60 40 ER32 50.00 60.00 34.0 M22X1.5 M16 0 0.92 NUT ER32 TOP BT40 FC ER32X100 40 ER32 50.00 100.00 74.0 M22X1.5 M16 0 1.54 NUT ER32 TOP BT40 FC ER40X80 40 ER40 63.00 80.00 54.0 M28X1.5 M16 0 1.09 NUT ER40 TOP BT50 FC ER16X100 50 ER16 28.00 100.00 63.5 M12 M24 0 3.91 NUT ER16 TOP BT50 FC ER16X150 50 ER16 28.00 150.00 113.5 M12 M24 0 3.96 NUT ER16 TOP BT50 FC ER32X100 50 ER32 50.00 100.00 63.5 M22X1.5 M24 0 3.98 NUT ER32 TOP BT50 FC ER32X150 50 ER32 50.00 150.00 113.5 M22X1.5 M24 0 4.65 NUT ER32 TOP BT50 FC ER40X100 50 ER40 63.00 100.00 63.5 M28X1.5 M24 0 4.03 NUT ER40 TOP BT50 FC ER40X150 50 ER40 63.00 150.00 113.5 M28X1.5 M24 0 5.60 NUT ER40 TOP (1) 1 - Hole for data chip, 0 - Without hole for data chip BT-FC Face Contact Taper Face Contact Standard Spindle Spindle Face Contact Standard Holder Holder 712-713 715 684-688 715 682-684 LPR LB A 0.003 A AT3 Taper 58-60 HRc CSI BT-ER-SHORT SS DCONNWS Short ER Collet Chucks with BT DCONXWS G2.5 MAS-403 AD Tapered Shanks 20,000 RPM BD G1 U<1.0 gmm CRKS THID Designation SS CSI DCONNWS(1) DCONXWS(2) LPR LB BD THID CRKS G1 CDI(3) kg BT30 ER20 SHORT 30 ER20 1.0 13.0 23.70 5.2 25.00 M12 M12 M25X1.5 0 0.30 BT40 ER32 SHORT 40 ER32 2.0 20.0 36.50 6.0 40.00 M16 M16 M40X1.5 0 0.74 BT40 ER40 SHORT 40 ER40 3.0 26.0 43.00 6.0 50.00 M16 M16 M50X1.5 0 0.78 BT50 ER32 SHORT 50 ER32 2.0 20.0 44.00 6.0 40.00 M22X1.5 M24 M40X1.5 0 3.36 BT50 ER40 SHORT 50 ER40 3.0 26.0 44.00 6.0 50.00 M28X1.5 M24 M50X1.5 0 3.09 • B is the designation for coolant through flange. (1) Minimum diameter (2) Maximum diameter (1) 1 - Hole for data chip, 0 - Without hole for data chip 712-713 714 684-688 559,682-684 Spare Parts Designation BT30 ER20 SHORT NUT ER20 SHORT PRESET ER-JET 12X1.75* PRESET ER-JET 12X1.75L* BT40 ER32 SHORT NUT ER32 SHORT WRENCH ER32 SHORT* PRESET ER-JET 16X2* PRESET ER-JET 16X2L* BT40 ER40 SHORT NUT ER40 SHORT WRENCH ER40 SHORT* PRESET ER-JET 16X2* PRESET ER-JET 16X2L* BT50 ER32 SHORT NUT ER32 SHORT WRENCH ER32 SHORT* PRESET ER-JET 22X1.5* PRESET ER-JET 22X1.5L* BT50 ER40 SHORT NUT ER40 SHORT WRENCH ER40 SHORT* PRESET ER-JET 28X1.5* * Optional, should be ordered separately 631
