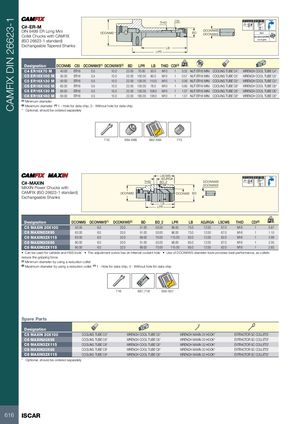

CAMFIX DIN 26623-1 THID CSI A 0.003 A 58-60 HRc C#-ER-M DIN 6499 ER Long Mini DCONMSCollet Chucks with CAMFIX DCONNWSBDDCONXWS G2.5Size 50,63=20,000RPM (ISO 26623-1 standard) U<1.0 gmm Exchangeable Tapered Shanks LB LPR Designation DCONMS CSI DCONNWS(1) DCONXWS(2) BD LPR LB THID CDI(3) kg C4 ER16X70 M 40.00 ER16 0.5 10.0 22.00 70.00 50.0 M10 1 0.32 NUT ER16 MINI COOLING TUBE C4* WRENCH COOL TUBE C4* C5 ER16X100 M 50.00 ER16 0.5 10.0 22.00 100.00 80.0 M10 1 0.57 NUT ER16 MINI COOLING TUBE C5* WRENCH COOL TUBE C5* C5 ER16X130 M 50.00 ER16 0.5 10.0 22.00 130.00 110.0 M10 1 0.56 NUT ER16 MINI COOLING TUBE C5* WRENCH COOL TUBE C5* C6 ER16X100 M 63.00 ER16 0.5 10.0 22.00 100.00 78.0 M10 1 0.90 NUT ER16 MINI COOLING TUBE C6* WRENCH COOL TUBE C6* C6 ER16X130 M 63.00 ER16 0.5 10.0 22.00 130.00 108.0 M10 1 1.07 NUT ER16 MINI COOLING TUBE C6* WRENCH COOL TUBE C6* C6 ER16X160 M 63.00 ER16 0.5 10.0 22.00 160.00 138.0 M10 1 1.07 NUT ER16 MINI COOLING TUBE C6* WRENCH COOL TUBE C6* (1) Minimum diameter (2) Maximum diameter (1) 1 - Hole for data chip, 0 - Without hole for data chip * Optional, should be ordered separately 715 684-688 682-684 715 LSCWS ADJRGA A 0.003 A 58-60 HRc C#-MAXINMAXIN Power Chucks with THID BD_2 DCONNWSDCONXWS CAMFIX (ISO 26623-1 standard) DCONMS DCONWS BD Exchangeable Shanks LB LPR Designation DCONMS DCONNWS(1) DCONXWS(2) BD BD_2 LPR LB ADJRGA LSCWS THID CDI(3) kg C5 MAXIN 20X100 50.00 6.0 20.0 51.00 53.00 96.00 75.0 12.00 67.0 M16 1 0.87 C6 MAXIN20X95 63.00 6.0 20.0 51.00 53.00 96.00 73.0 12.00 67.0 M16 1 1.10 C6 MAXIN32X115 63.00 6.0 32.0 69.00 70.00 115.00 93.0 12.00 82.0 M16 1 2.88 C8 MAXIN20X95 80.00 6.0 20.0 51.00 53.00 96.00 65.0 12.00 67.0 M16 1 2.05 C8 MAXIN32X115 80.00 6.0 32.0 69.00 70.00 115.00 85.0 12.00 82.0 M16 1 2.83 • Can be used for carbide and HSS tools • The adjustment screw has an internal coolant hole • Use of DCONXWS diameter tools provides best performance, as collets reduce the gripping force. (1) Minimum diameter by using a reduction collet (2) Maximum diameter by using a reduction collet (1) 1 - Hole for data chip, 0 - Without hole for data chip 716 697,718 556-557 Spare Parts Designation C5 MAXIN 20X100 COOLING TUBE C5* WRENCH COOL TUBE C5* WRENCH MAXIN 20 HOOK* EXTRACTOR SC COLLETS* C6 MAXIN20X95 COOLING TUBE C6* WRENCH COOL TUBE C6* WRENCH MAXIN 20 HOOK* EXTRACTOR SC COLLETS* C6 MAXIN32X115 COOLING TUBE C6* WRENCH COOL TUBE C6* WRENCH MAXIN 32 HOOK* EXTRACTOR SC COLLETS* C8 MAXIN20X95 COOLING TUBE C8* WRENCH COOL TUBE C8* WRENCH MAXIN 20 HOOK* EXTRACTOR SC COLLETS* C8 MAXIN32X115 COOLING TUBE C8* WRENCH COOL TUBE C8* WRENCH MAXIN 32 HOOK* EXTRACTOR SC COLLETS* * Optional, should be ordered separately 616 ISCAR
