Каталог Iscar инструментальная оснастка 2022 - страница 67

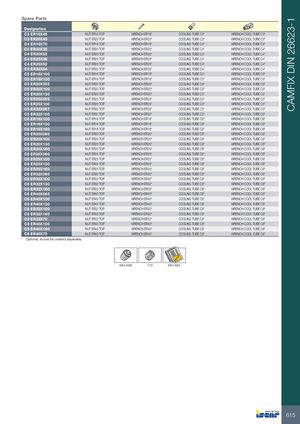

CAMFIX DIN 26623-1 Spare Parts Designation C3 ER16X45 NUT ER16 TOP WRENCH ER16* COOLING TUBE C3* WRENCH COOL TUBE C3* C3 ER20X45 NUT ER20 TOP WRENCH ER20* COOLING TUBE C3* WRENCH COOL TUBE C3* C4 ER16X70 NUT ER16 TOP WRENCH ER16* COOLING TUBE C4* WRENCH COOL TUBE C4* C4 ER20X35 NUT ER20 TOP WRENCH ER20* COOLING TUBE C4* WRENCH COOL TUBE C4* C4 ER20X52 NUT ER20 TOP WRENCH ER20* COOLING TUBE C4* WRENCH COOL TUBE C4* C4 ER25X38 NUT ER25 TOP WRENCH ER25* COOLING TUBE C4* WRENCH COOL TUBE C4* C4 ER25X52 NUT ER25 TOP WRENCH ER25* COOLING TUBE C4* WRENCH COOL TUBE C4* C4 ER32X54 NUT ER32 TOP WRENCH ER32* COOLING TUBE C4* WRENCH COOL TUBE C4* C5 ER16X100 NUT ER16 TOP WRENCH ER16* COOLING TUBE C5* WRENCH COOL TUBE C5* C5 ER16X130 NUT ER16 TOP WRENCH ER16* COOLING TUBE C5* WRENCH COOL TUBE C5* C5 ER20X055 NUT ER20 TOP WRENCH ER20* COOLING TUBE C5* WRENCH COOL TUBE C5* C5 ER20X100 NUT ER20 TOP WRENCH ER20* COOLING TUBE C5* WRENCH COOL TUBE C5* C5 ER20X130 NUT ER20 TOP WRENCH ER20* COOLING TUBE C5* WRENCH COOL TUBE C5* C5 ER25X055 NUT ER25 TOP WRENCH ER25* COOLING TUBE C5* WRENCH COOL TUBE C5* C5 ER25X100 NUT ER25 TOP WRENCH ER25* COOLING TUBE C5* WRENCH COOL TUBE C5* C5 ER32X057 NUT ER32 TOP WRENCH ER32* COOLING TUBE C5* WRENCH COOL TUBE C5* C5 ER32X100 NUT ER32 TOP WRENCH ER32* COOLING TUBE C5* WRENCH COOL TUBE C5* C6 ER16X100 NUT ER16 TOP WRENCH ER16* COOLING TUBE C6* WRENCH COOL TUBE C6* C6 ER16X130 NUT ER16 TOP WRENCH ER16* COOLING TUBE C6* WRENCH COOL TUBE C6* C6 ER16X160 NUT ER16 TOP WRENCH ER16* COOLING TUBE C6* WRENCH COOL TUBE C6* C6 ER20X060 NUT ER20 TOP WRENCH ER20* COOLING TUBE C6* WRENCH COOL TUBE C6* C6 ER20X100 NUT ER20 TOP WRENCH ER20* COOLING TUBE C6* WRENCH COOL TUBE C6* C6 ER20X130 NUT ER20 TOP WRENCH ER20* COOLING TUBE C6* WRENCH COOL TUBE C6* C6 ER20X160 NUT ER20 TOP WRENCH ER20* COOLING TUBE C6* WRENCH COOL TUBE C6* C6 ER25X060 NUT ER25 TOP WRENCH ER25* COOLING TUBE C6* WRENCH COOL TUBE C6* C6 ER25X100 NUT ER25 TOP WRENCH ER25* COOLING TUBE C6* WRENCH COOL TUBE C6* C6 ER25X130 NUT ER25 TOP WRENCH ER25* COOLING TUBE C6* WRENCH COOL TUBE C6* C6 ER25X160 NUT ER25 TOP WRENCH ER25* COOLING TUBE C6* WRENCH COOL TUBE C6* C6 ER32X060 NUT ER32 TOP WRENCH ER32* COOLING TUBE C6* WRENCH COOL TUBE C6* C6 ER32X100 NUT ER32 TOP WRENCH ER32* COOLING TUBE C6* WRENCH COOL TUBE C6* C6 ER32X130 NUT ER32 TOP WRENCH ER32* COOLING TUBE C6* WRENCH COOL TUBE C6* C6 ER32X160 NUT ER32 TOP WRENCH ER32* COOLING TUBE C6* WRENCH COOL TUBE C6* C6 ER40X065 NUT ER40 TOP WRENCH ER40* COOLING TUBE C6* WRENCH COOL TUBE C6* C6 ER40X100 NUT ER40 TOP WRENCH ER40* COOLING TUBE C6* WRENCH COOL TUBE C6* C6 ER40X130 NUT ER40 TOP WRENCH ER40* COOLING TUBE C6* WRENCH COOL TUBE C6* C8 ER32X100 NUT ER32 TOP WRENCH ER32* COOLING TUBE C8* WRENCH COOL TUBE C8* C8 ER32X160 NUT ER32 TOP WRENCH ER32* COOLING TUBE C8* WRENCH COOL TUBE C8* C8 ER32X70 NUT ER32 TOP WRENCH ER32* COOLING TUBE C8* WRENCH COOL TUBE C8* C8 ER40X100 NUT ER40 TOP WRENCH ER40* COOLING TUBE C8* WRENCH COOL TUBE C8* C8 ER40X160 NUT ER40 TOP WRENCH ER40* COOLING TUBE C8* WRENCH COOL TUBE C8* C8 ER40X70 NUT ER40 TOP WRENCH ER40* COOLING TUBE C8* WRENCH COOL TUBE C8* * Optional, should be ordered separately 684-688 715 682-684 C l8 Al7 Section view A-A Section view C-C 2e CAMFIX ISO 26623-1 d4 Toolholder Standard d2 d1 Dm d5 l1 b2 l11 A l6 l2 l3 C CAMFIX b2 d1 ±0.1 d2 d4 d5 ±0.1 Dm e l1 l2 ±0.1 l3 min l6 ±0.15 l7 ±0.15 l8 min l11 ±0.1 C3 28.3 32 15 M12x1.5 3.6 22 0.7 2.5 19 15 6 13 25 8 C4 35.3 40 18 M14x1.5 4.6 28 0.9 2.5 24 20 8 15 30 8 C5 44.4 50 21 M16x1.5 6.1 35 1.12 3 30 20 10 20 37 14 C6 55.8 63 28 M20x2 8.1 44 1.4 3 38 22 12 27 47 15.5 C8 71.1 80 32 M20x2 9.1 55 2 3 48 30 12 28 48 25 C8X 88.7 100 32 M20x2 9.1 55 2 3 48 32 16 28 48 25 C10 88.3 100 43 M20x2 12 72 2.8 3 60 36 16 40 70 26.5 CAMFIX - ISO 26623-1 Standard Quick Change Shanks Hole for Data ChipCoolant technological hole V-groove for ATC (Automatic Tool Change) arm Magazine and spindle positioning groove Features • Symmetrical design: Due to the symmetrical design, the torque load is distributed on the polygon, providing a self-centering effect. • Rigidity: The CAMFIX clamping mechanism is extremely rigid against bending forces. • Accuracy: The taper and face contact ensure high repeatability within 2 microns, when operated with an automatic tool changer. 615
