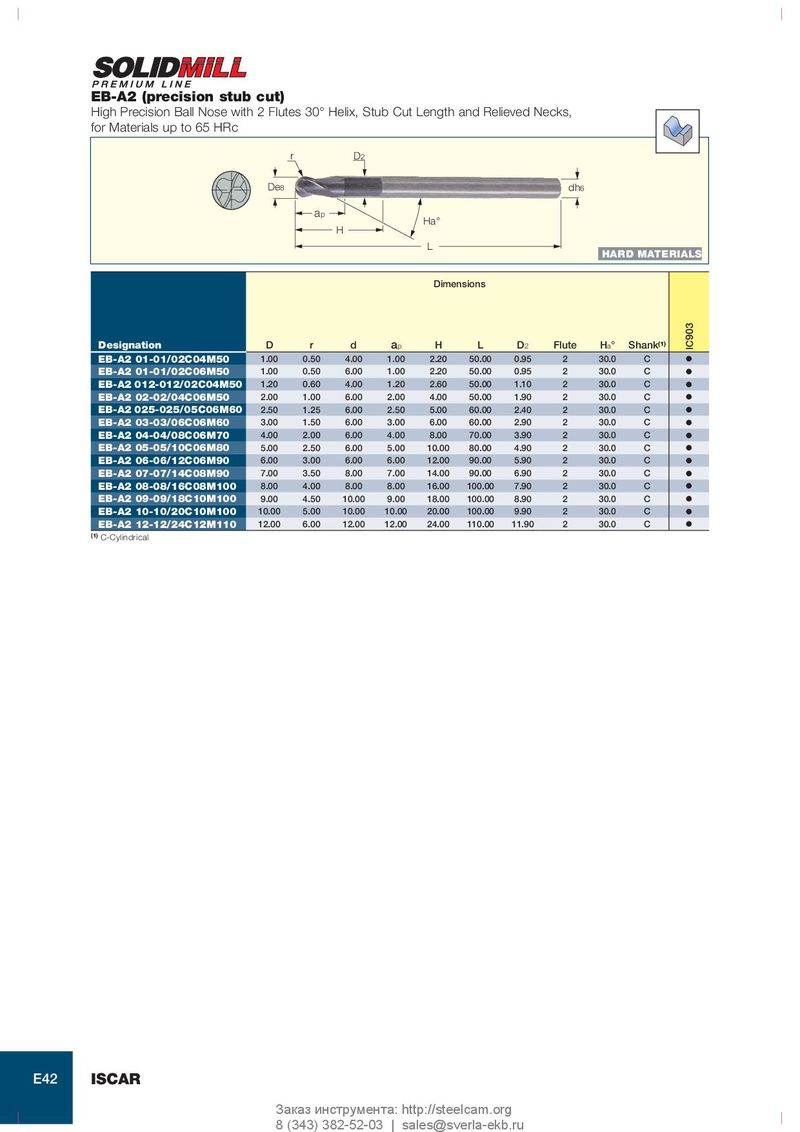

EB-A2 (precision stub cut) High Precision Ball Nose with 2 Flutes 30° Helix, Stub Cut Length and Relieved Necks, for Materials up to 65 HRc r D2 De8 dh6 ap Ha° H L HARD MATERIALS Dimensions Designation D r d a p H L D 2 Flute H a ° Shank (1) IC903 EB-A2 01-01/02C04M50 1.00 0.50 4.00 1.00 2.20 50.00 0.95 2 30.0 C O EB-A2 01-01/02C06M50 1.00 0.50 6.00 1.00 2.20 50.00 0.95 2 30.0 C O EB-A2 012-012/02C04M50 1.20 0.60 4.00 1.20 2.60 50.00 1.10 2 30.0 C O EB-A2 02-02/04C06M50 2.00 1.00 6.00 2.00 4.00 50.00 1.90 2 30.0 C O EB-A2 025-025/05C06M60 2.50 1.25 6.00 2.50 5.00 60.00 2.40 2 30.0 C O EB-A2 03-03/06C06M60 3.00 1.50 6.00 3.00 6.00 60.00 2.90 2 30.0 C O EB-A2 04-04/08C06M70 4.00 2.00 6.00 4.00 8.00 70.00 3.90 2 30.0 C O EB-A2 05-05/10C06M80 5.00 2.50 6.00 5.00 10.00 80.00 4.90 2 30.0 C O EB-A2 06-06/12C06M90 6.00 3.00 6.00 6.00 12.00 90.00 5.90 2 30.0 C O EB-A2 07-07/14C08M90 7.00 3.50 8.00 7.00 14.00 90.00 6.90 2 30.0 C O EB-A2 08-08/16C08M100 8.00 4.00 8.00 8.00 16.00 100.00 7.90 2 30.0 C O EB-A2 09-09/18C10M100 9.00 4.50 10.00 9.00 18.00 100.00 8.90 2 30.0 C O EB-A2 10-10/20C10M100 10.00 5.00 10.00 10.00 20.00 100.00 9.90 2 30.0 C O EB-A2 12-12/24C12M110 12.00 6.00 12.00 12.00 24.00 110.00 11.90 2 30.0 C O (1) C-Cylindrical E42 ISCAR Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru
