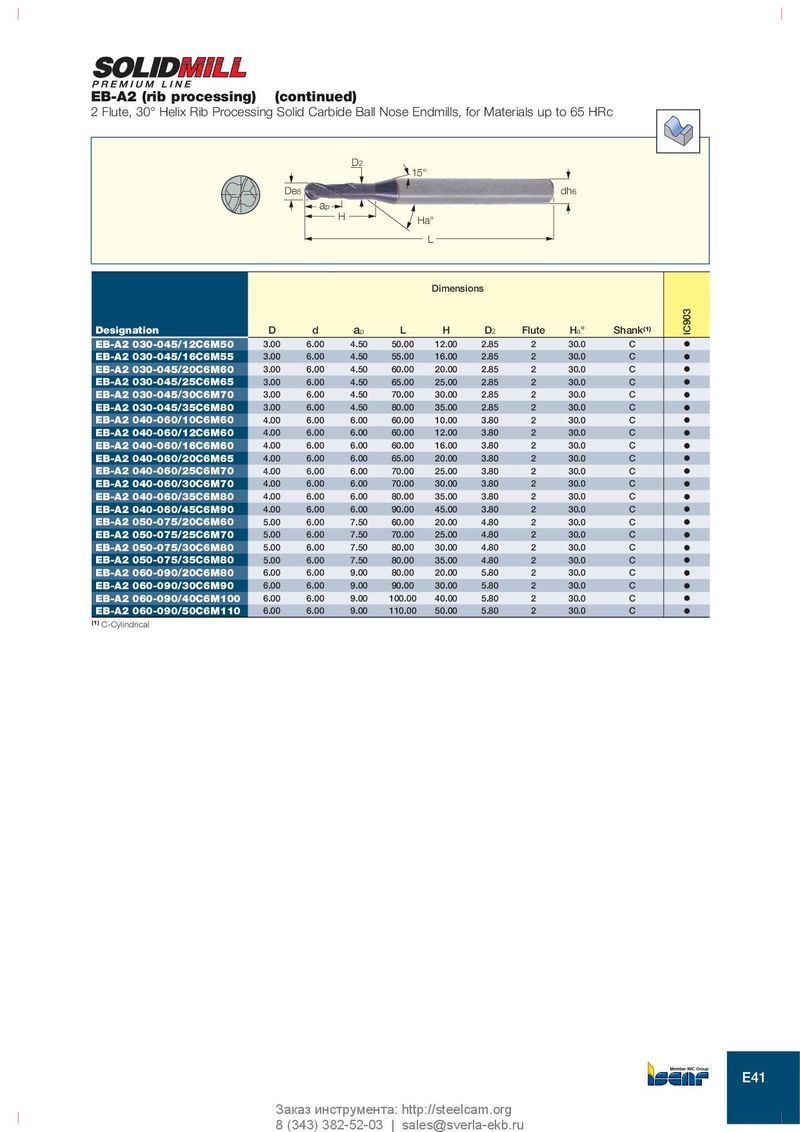

EB-A2 (rib processing) (continued) 2 Flute, 30° Helix Rib Processing Solid Carbide Ball Nose Endmills, for Materials up to 65 HRc D2 15° De8 dh6 ap H Ha° L Dimensions Designation D d a p L H D 2 Flute H a ° Shank (1) IC903 EB-A2 030-045/12C6M50 3.00 6.00 4.50 50.00 12.00 2.85 2 30.0 C O EB-A2 030-045/16C6M55 3.00 6.00 4.50 55.00 16.00 2.85 2 30.0 C O EB-A2 030-045/20C6M60 3.00 6.00 4.50 60.00 20.00 2.85 2 30.0 C O EB-A2 030-045/25C6M65 3.00 6.00 4.50 65.00 25.00 2.85 2 30.0 C O EB-A2 030-045/30C6M70 3.00 6.00 4.50 70.00 30.00 2.85 2 30.0 C O EB-A2 030-045/35C6M80 3.00 6.00 4.50 80.00 35.00 2.85 2 30.0 C O EB-A2 040-060/10C6M60 4.00 6.00 6.00 60.00 10.00 3.80 2 30.0 C O EB-A2 040-060/12C6M60 4.00 6.00 6.00 60.00 12.00 3.80 2 30.0 C O EB-A2 040-060/16C6M60 4.00 6.00 6.00 60.00 16.00 3.80 2 30.0 C O EB-A2 040-060/20C6M65 4.00 6.00 6.00 65.00 20.00 3.80 2 30.0 C O EB-A2 040-060/25C6M70 4.00 6.00 6.00 70.00 25.00 3.80 2 30.0 C O EB-A2 040-060/30C6M70 4.00 6.00 6.00 70.00 30.00 3.80 2 30.0 C O EB-A2 040-060/35C6M80 4.00 6.00 6.00 80.00 35.00 3.80 2 30.0 C O EB-A2 040-060/45C6M90 4.00 6.00 6.00 90.00 45.00 3.80 2 30.0 C O EB-A2 050-075/20C6M60 5.00 6.00 7.50 60.00 20.00 4.80 2 30.0 C O EB-A2 050-075/25C6M70 5.00 6.00 7.50 70.00 25.00 4.80 2 30.0 C O EB-A2 050-075/30C6M80 5.00 6.00 7.50 80.00 30.00 4.80 2 30.0 C O EB-A2 050-075/35C6M80 5.00 6.00 7.50 80.00 35.00 4.80 2 30.0 C O EB-A2 060-090/20C6M80 6.00 6.00 9.00 80.00 20.00 5.80 2 30.0 C O EB-A2 060-090/30C6M90 6.00 6.00 9.00 90.00 30.00 5.80 2 30.0 C O EB-A2 060-090/40C6M100 6.00 6.00 9.00 100.00 40.00 5.80 2 30.0 C O EB-A2 060-090/50C6M110 6.00 6.00 9.00 110.00 50.00 5.80 2 30.0 C O (1) C-Cylindrical E41 Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru
