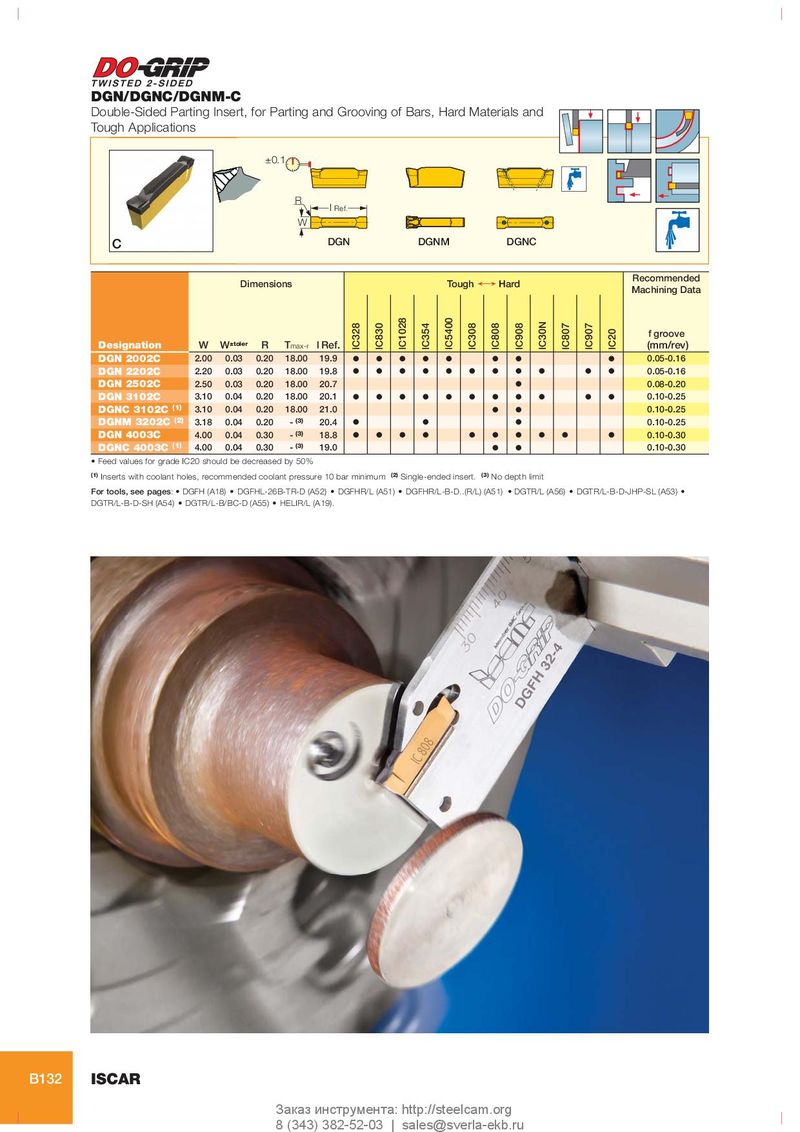

DGN/DGNC/DGNM-C Double-Sided Parting Insert, for Parting and Grooving of Bars, Hard Materials and Tough Applications ±0.1 R l Ref. W DGN DGNM DGNC Recommended Dimensions Tough ¥ Hard Machining Data f groove Designation W W ±toler R T max-r l Ref. IC328 IC830 IC1028 IC354 IC5400 IC308 IC808 IC908 IC30N IC807 IC907 IC20 (mm/rev) DGN 2002C 2.00 0.03 0.20 18.00 19.9 O O O O O O O O 0.05-0.16 DGN 2202C 2.20 0.03 0.20 18.00 19.8 O O O O O O O O O O O 0.05-0.16 DGN 2502C 2.50 0.03 0.20 18.00 20.7 O 0.08-0.20 DGN 3102C 3.10 0.04 0.20 18.00 20.1 O O O O O O O O O O O 0.10-0.25 DGNC 3102C (1) 3.10 0.04 0.20 18.00 21.0 O O 0.10-0.25 DGNM 3202C (2) 3.18 0.04 0.20 - (3) 20.4 O O O 0.10-0.25 DGN 4003C 4.00 0.04 0.30 - (3) 18.8 O O O O O O O O O O 0.10-0.30 DGNC 4003C (1) 4.00 0.04 0.30 - (3) 19.0 O O 0.10-0.30 • Feed values for grade IC20 should be decreased by 50% (1) Inserts with coolant holes, recommended coolant pressure 10 bar minimum (2) Single-ended insert. (3) No depth limit For tools, see pages: • DGFH (A18) • DGFHL-26B-TR-D (A52) • DGFHR/L (A51) • DGFHR/L-B-D..(R/L) (A51) • DGTR/L (A56) • DGTR/L-B-D-JHP-SL (A53) • DGTR/L-B-D-SH (A54) • DGTR/L-B/BC-D (A55) • HELIR/L (A19). B132 ISCAR Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru
